HEINTZMANN BASIC BARRIER 6.0 Plus - HLK

Reference: HBB 6.0 Plus-HLK

Description

Heintzmann Basic Barrier 6.0 Plus-HLK is a simple roadside barrier with a narrow operating width. It has been developed with maximum optimisation of weight and performance in mind

It offers optimum performance in its restraint level category N2-W5-A at a post distance of 6 m.

The advantages of Heintzmann Basic Barrier 6.0 Plus-HLK

  • Compatible with all HBB PLUS HLK devices
  • Classic post type (C125)
  • Without spacer
  • Installation: on the shoulder of the road
  • Allows to isolate an obstacle located at only 1,30 m from the barrier in N2 and 1,20 m in H1 level
  • Can be connected to NF GS4, GS2 and GRC devices and CE HBB 4.00 PLUS HLK

HBB is a complete family of N2 level devices allowing the operating width to be varied from W2 to W5 by simply changing the centre-to-centre distance of the posts: see other products of the HBB range.

Technical data

SPECIFICATIONS:

A-profile beam in steel quality S355JO

Type of post: steel C125 in S235 JR -length: 1,60m

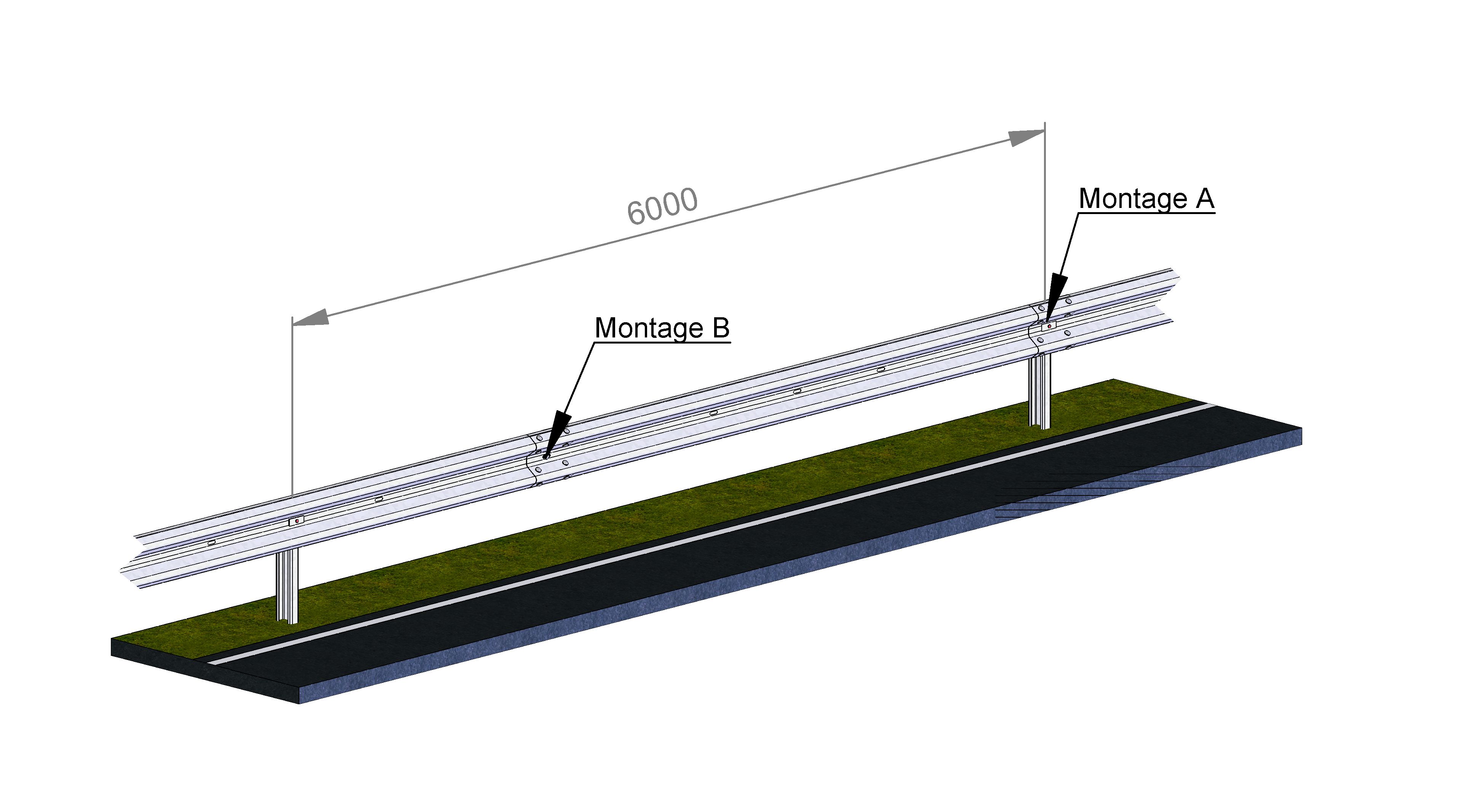

Post spacing: 6m

Weight per lm: 13,50 kg

Beam profile: profile AF-HLK in S355 JR steel

NF058 connection certificates available on the following products: HBB 4.0 Plus

Tested length: 84m in level N2

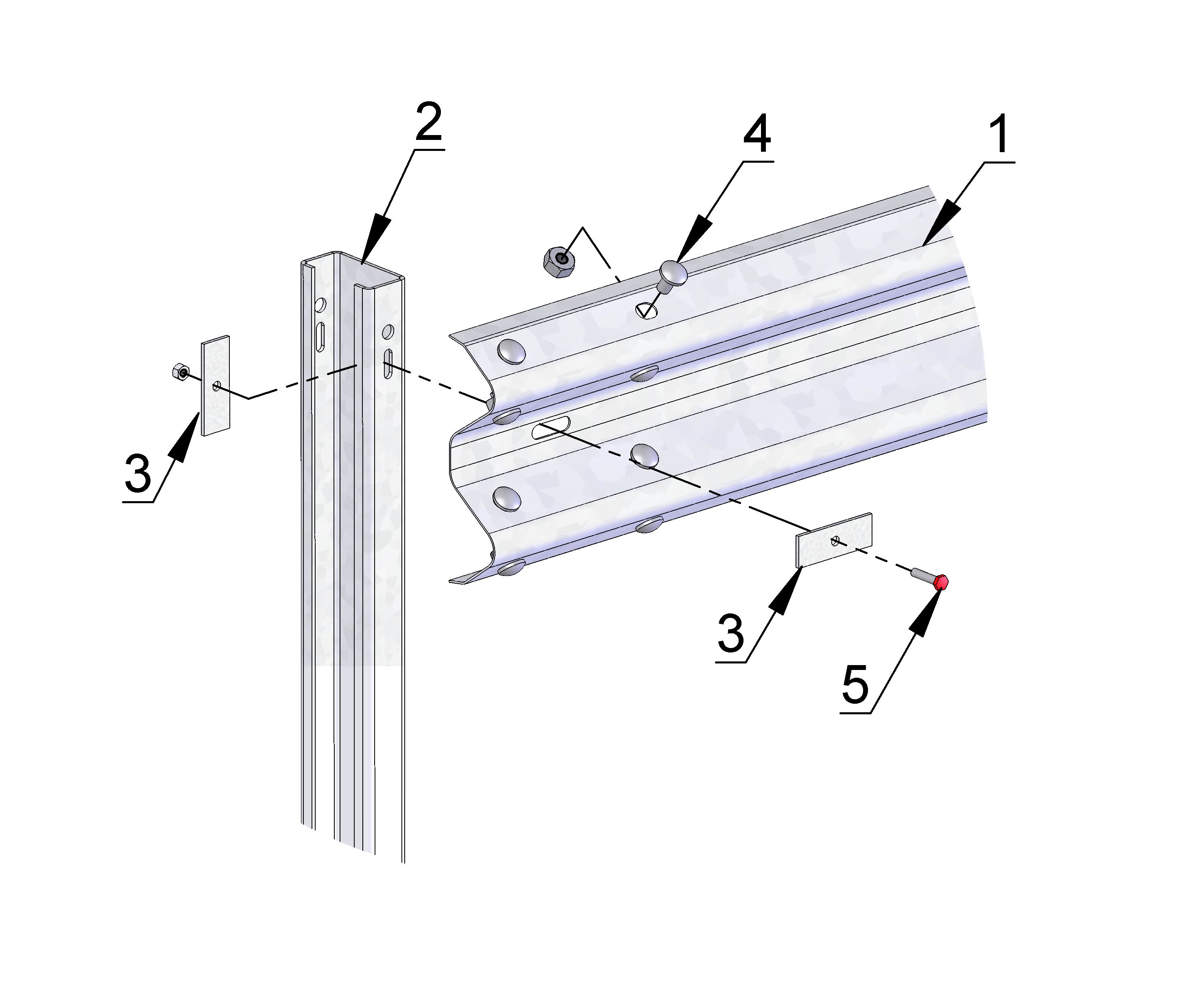

Product view
