HEINTZMANN BASIC BARRIER 1.33 Plus - HLK

Heintzmann Basic Barrier 1.33 Plus-HLK offers optimum performance in its category of restraint level N2-W2-A and H1-W3-A. The device is therefore of level L1-W3-A.

Heintzmann Basic Barrier is a simple roadside barrier with a restricted operating width. Heintzmann Basic Barrier 1.33 Plus-HLK has been developed with a view to maximum optimisation of weight and performance.

The advantages of Heintzmann Basic Barrier 1.33 Plus-HLK

• Compatible with all devices of the HBB PLUS HLK family
• Classic post type (C125)
• Without spacer
• Installation: on the shoulder of the road
• Allows an obstacle located only 80 cm from the barrier to be isolated in N2 and 1 m in H1
• Can be connected to NF GCU and DE2 devices and CE HBB 1.33 BW, HBB 2.00 PLUS HLK
• HBB is a complete family of N2 level devices allowing the operating width to be varied from W2 to W5 by simply changing the centre-to-centre distance of the posts: see the other products in the HBB range : see the other products of the HBB range.

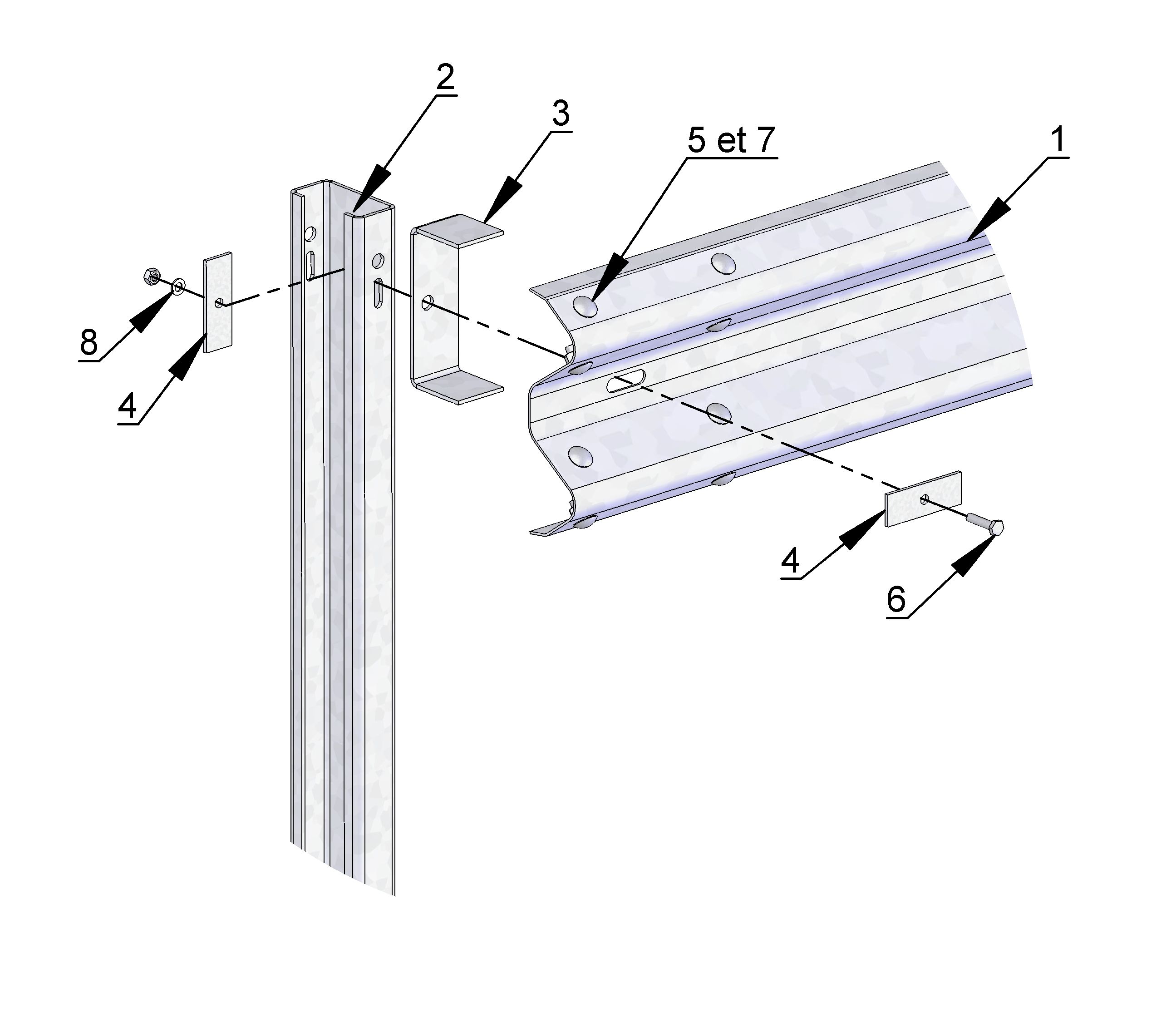

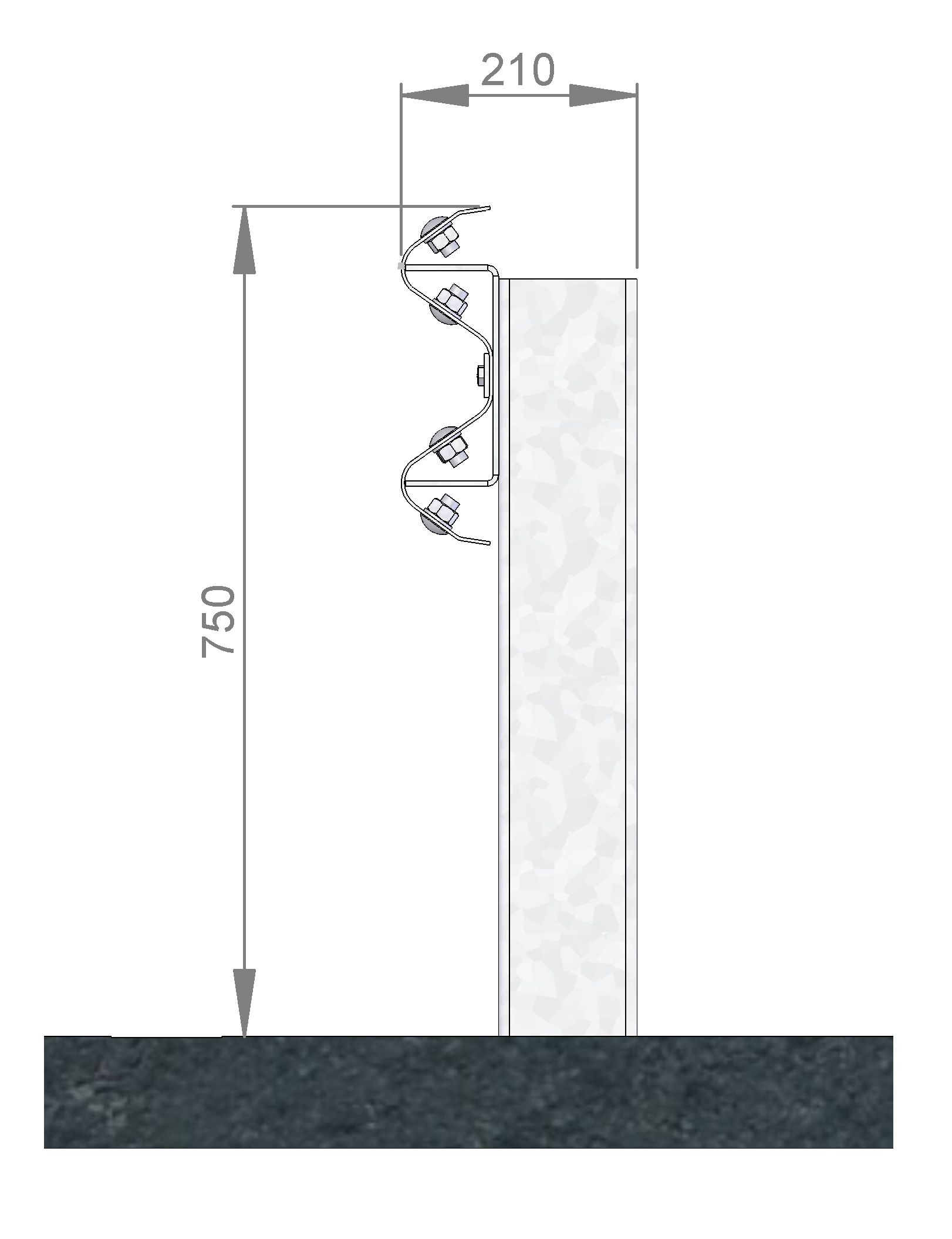

SPECIFICATIONS:

A-profile beam in steel S355JO

Type of post: steel C 125 / S235 JR - length: 1,60 m

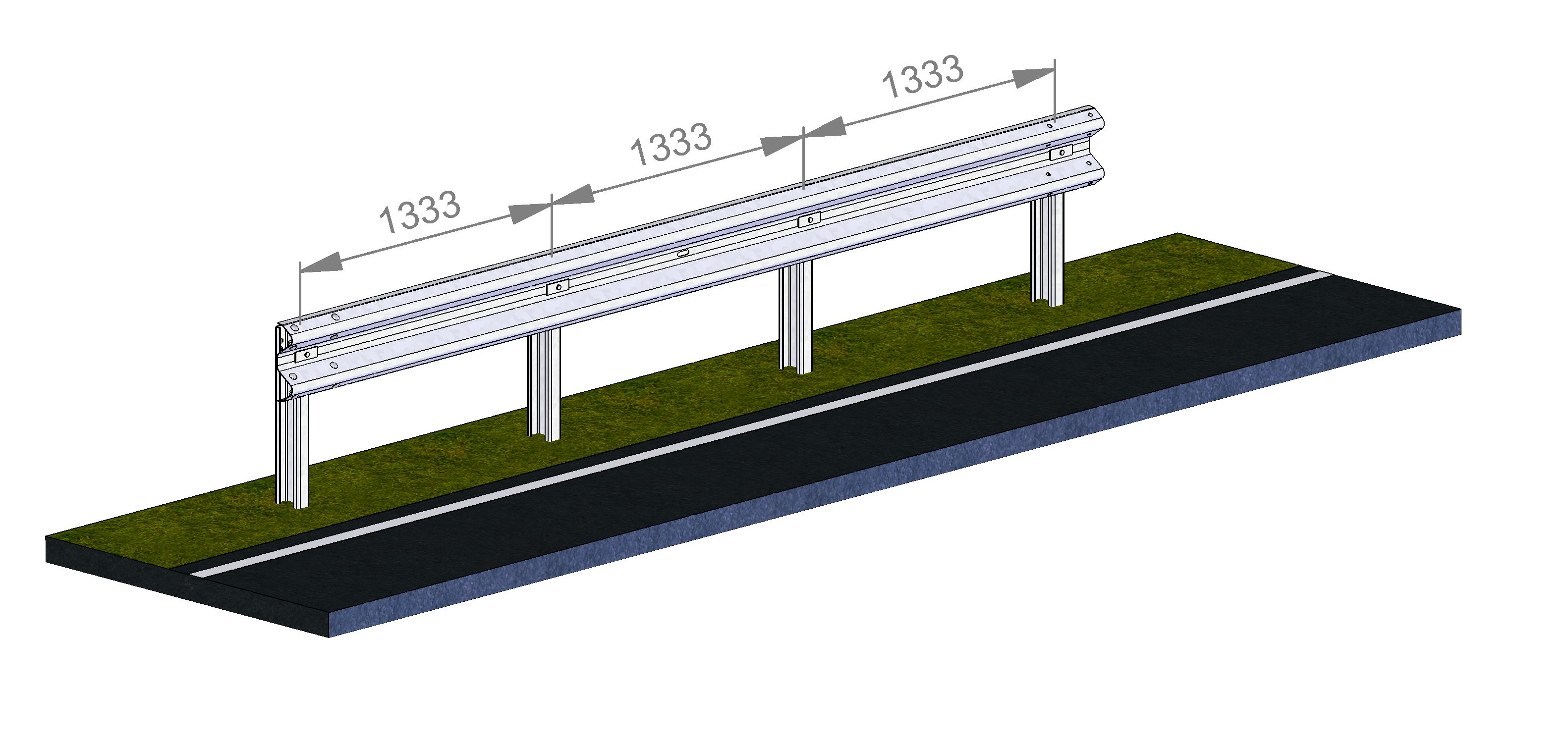

Post spacing: 1,33 m

Weight per lm: 23,5 kg

Beam profile: AF-HLK in S355JR steel

NF058 connection certificates available on the following products: GCU-NF / DE2-NF / ESP Plus W1 / HBB 1.33 BW / HBB 1.33 / HBB 2.0 Plus / GBA (undergoing certification)

Tested length: 52 m in level H1 and 40 m in level N2
