HEINTZMANN BASIC BARRIER 4.0 Plus - HLK
Reference: HBB 4.0 Plus - HLK
- Description
- Technical data
- Product view
Description
Heintzmann Basic Barrier 4.0 Plus-HLK is a simple roadside barrier with a narrow operating width. It has been developed with maximum optimisation of weight and performance in mind
It offers optimum performance in its restraint level category N2-W4-A
The advantages of Heintzmann Basic Barrier 4.0 Plus-HLK
- Compatible with all devices of the HBB PLUS HLK family
- Classic post type (C125)
- Without spacer
- Installation: on the shoulder of the road
- Allows to isolate an obstacle located at only 1,30 m from the barrier in N2 and 1,20 m in H1 level
- Can be connected to NF GS4, GS2 and GRC devices and CE HBB PLUS HLK 2.00 and 6.00 PLUS HLK
HBB is a complete family of N2 level devices allowing the operating width to be varied from W2 to W5 by simply changing the centre-to-centre distance of the posts: see the other products of the HBB range.
Technical data
SPECIFICATIONS:
A-profile beam in steel quality S355JO
Type of posts: steel C125 S235 JR - length :1,60 m

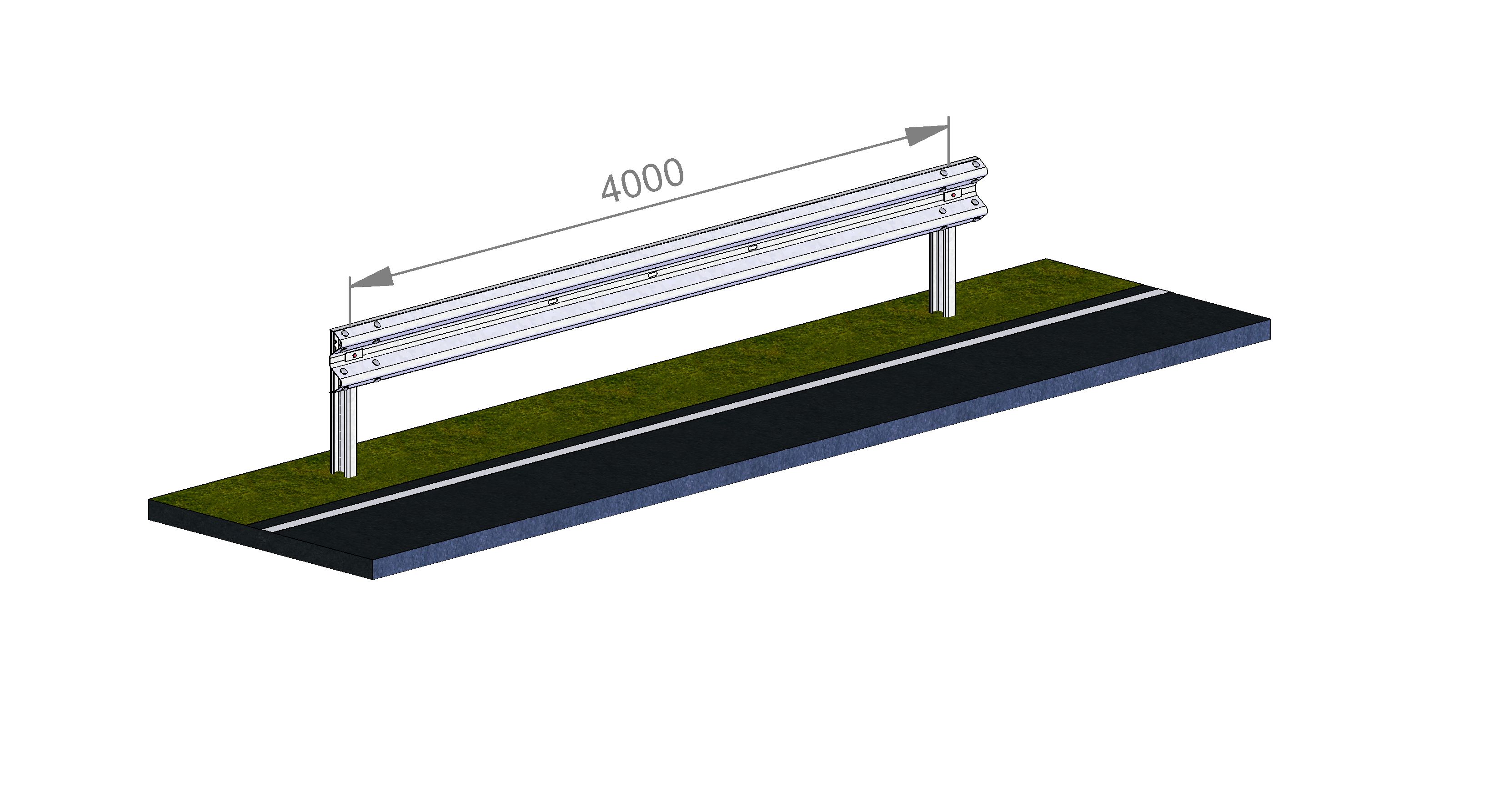

Post spacing: 4m
Weight per lm: 15kg
NF058 connection certificates available on the following products: GS4-NF / GS2-NF / GRC-NF /HBB 2.0 Plus / HBB 6.0 Plus
Tested length: 40 m in level N2

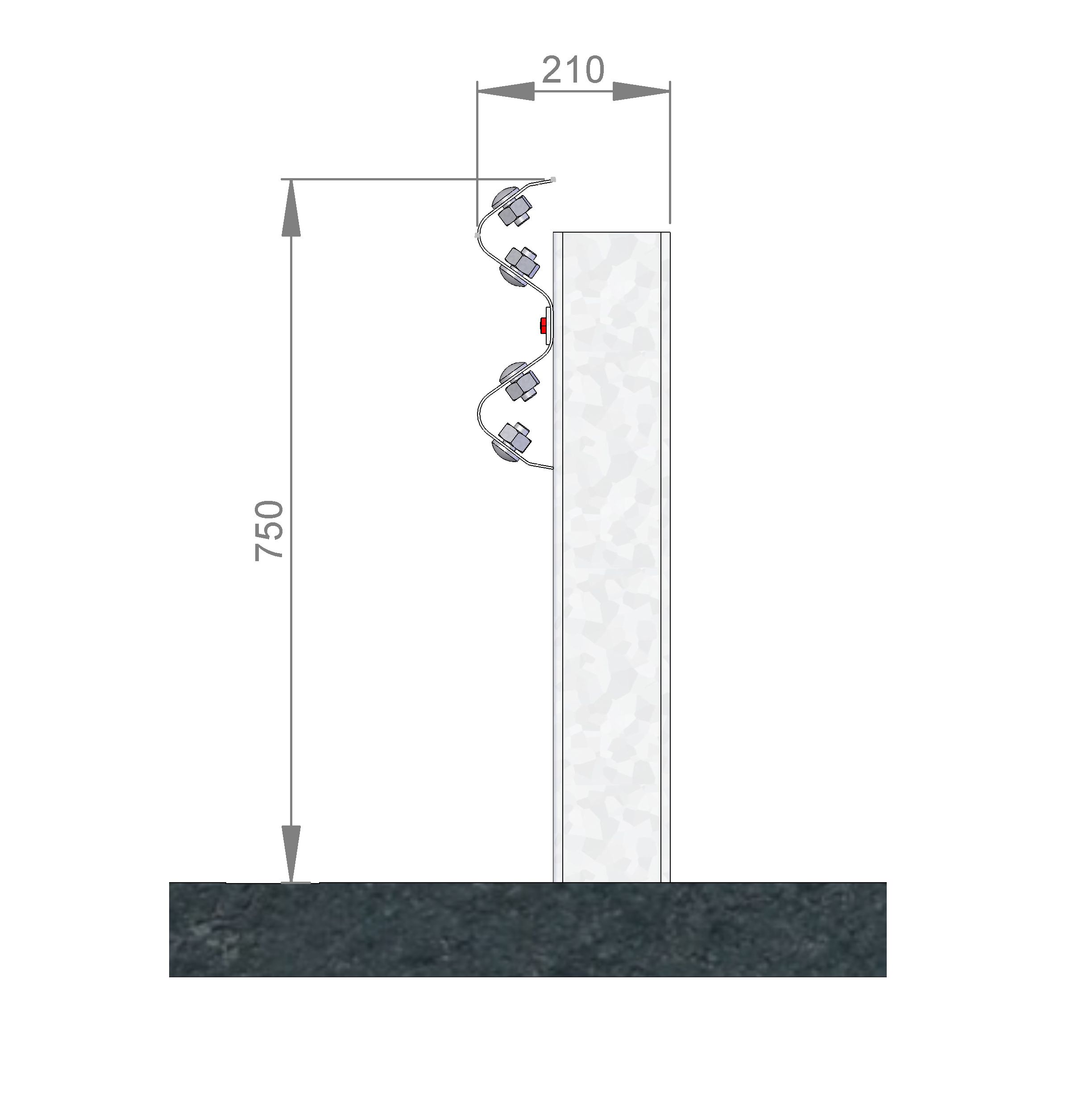

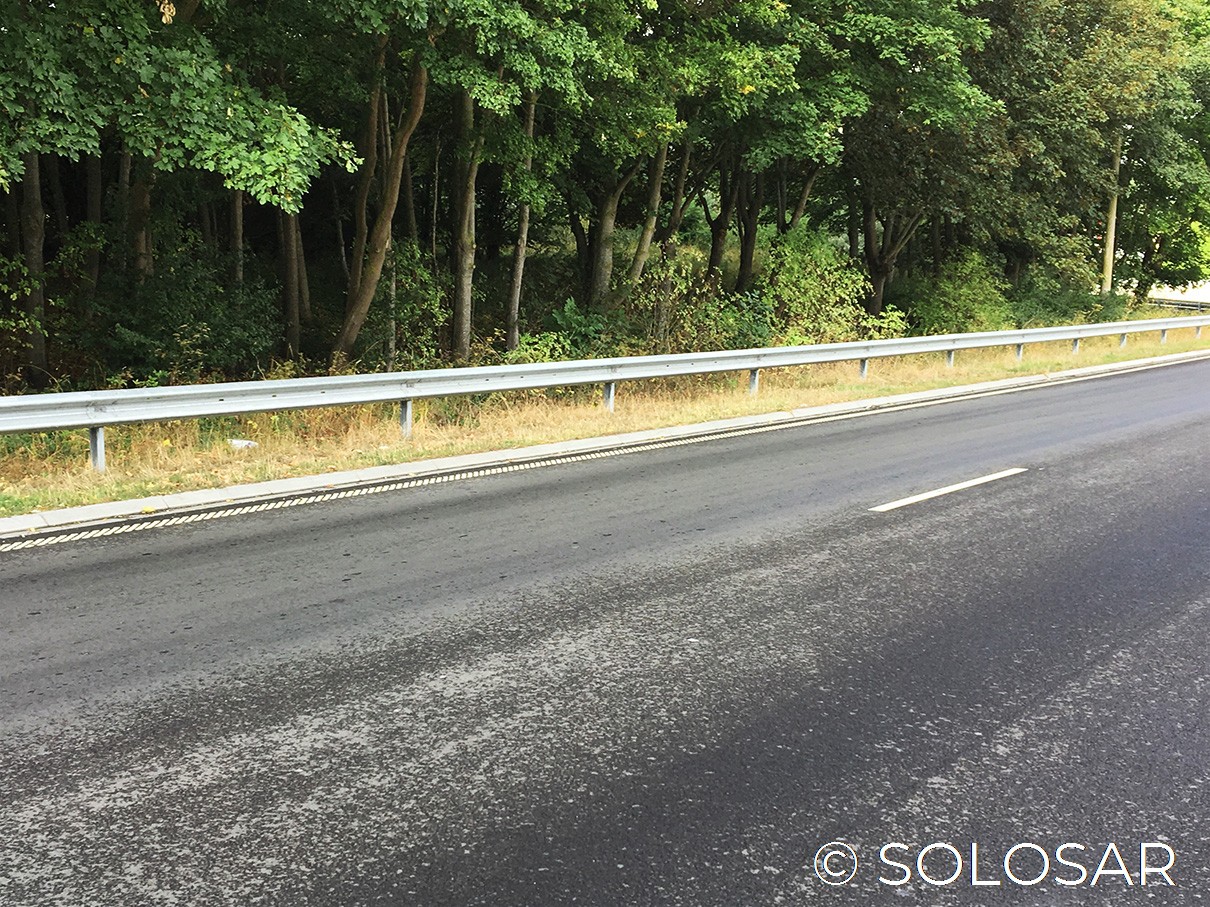

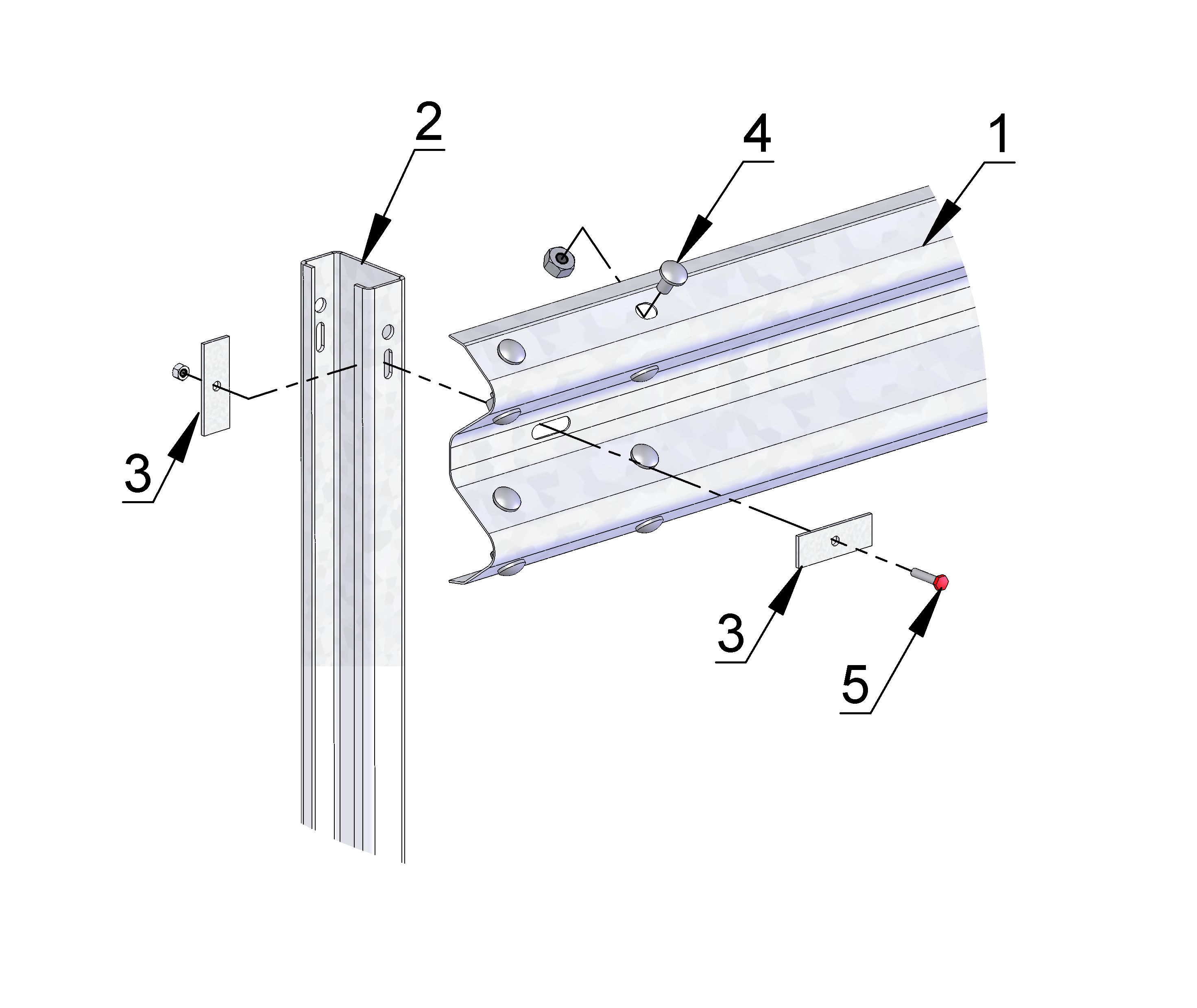

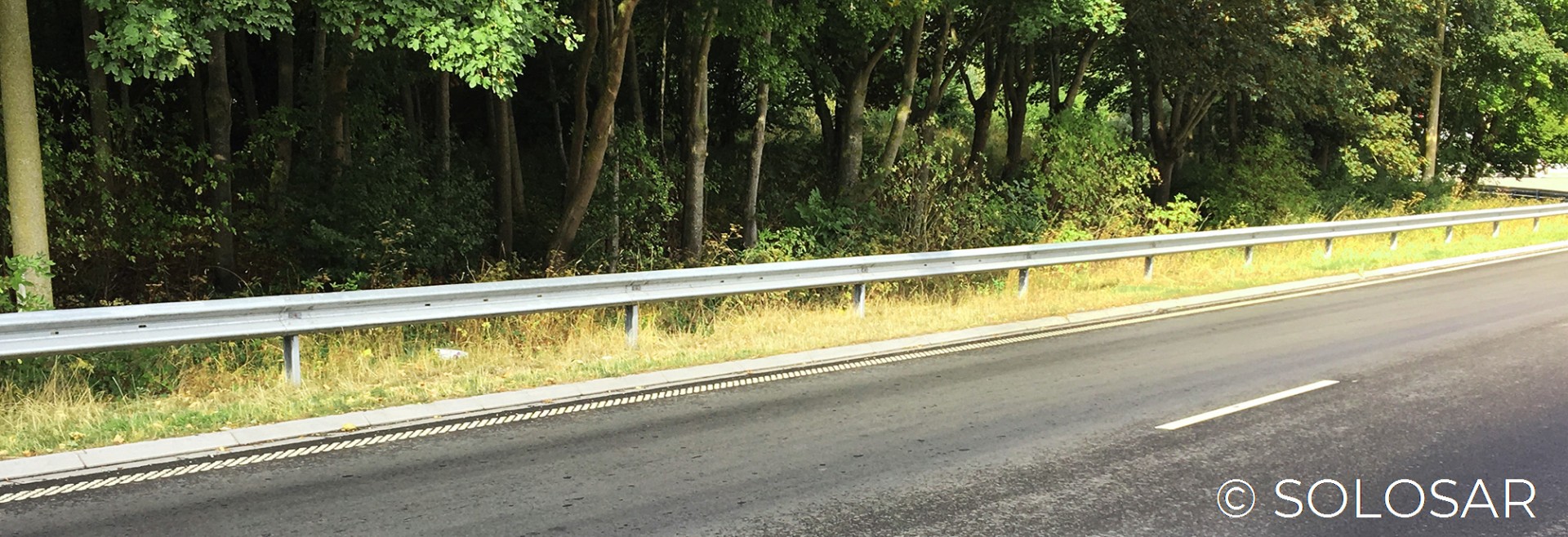

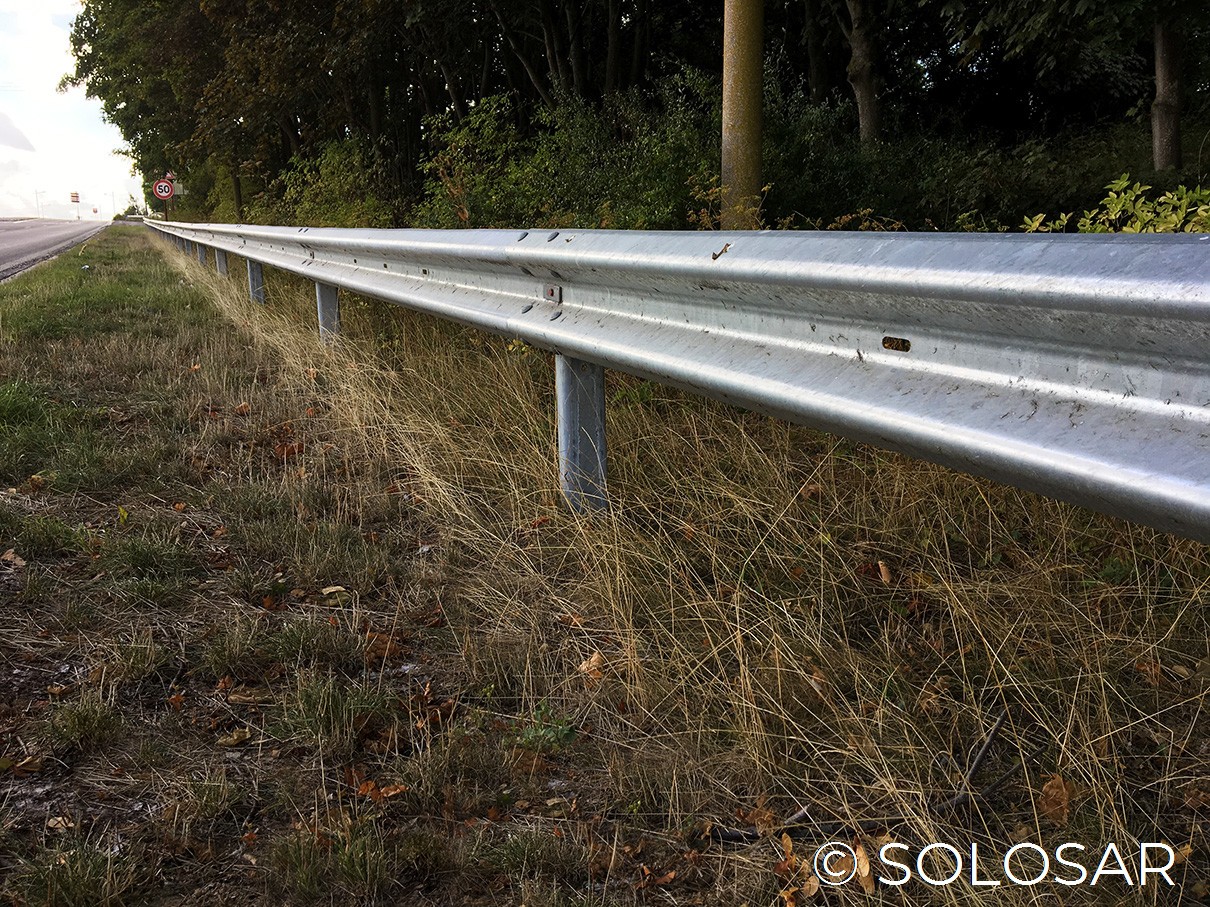

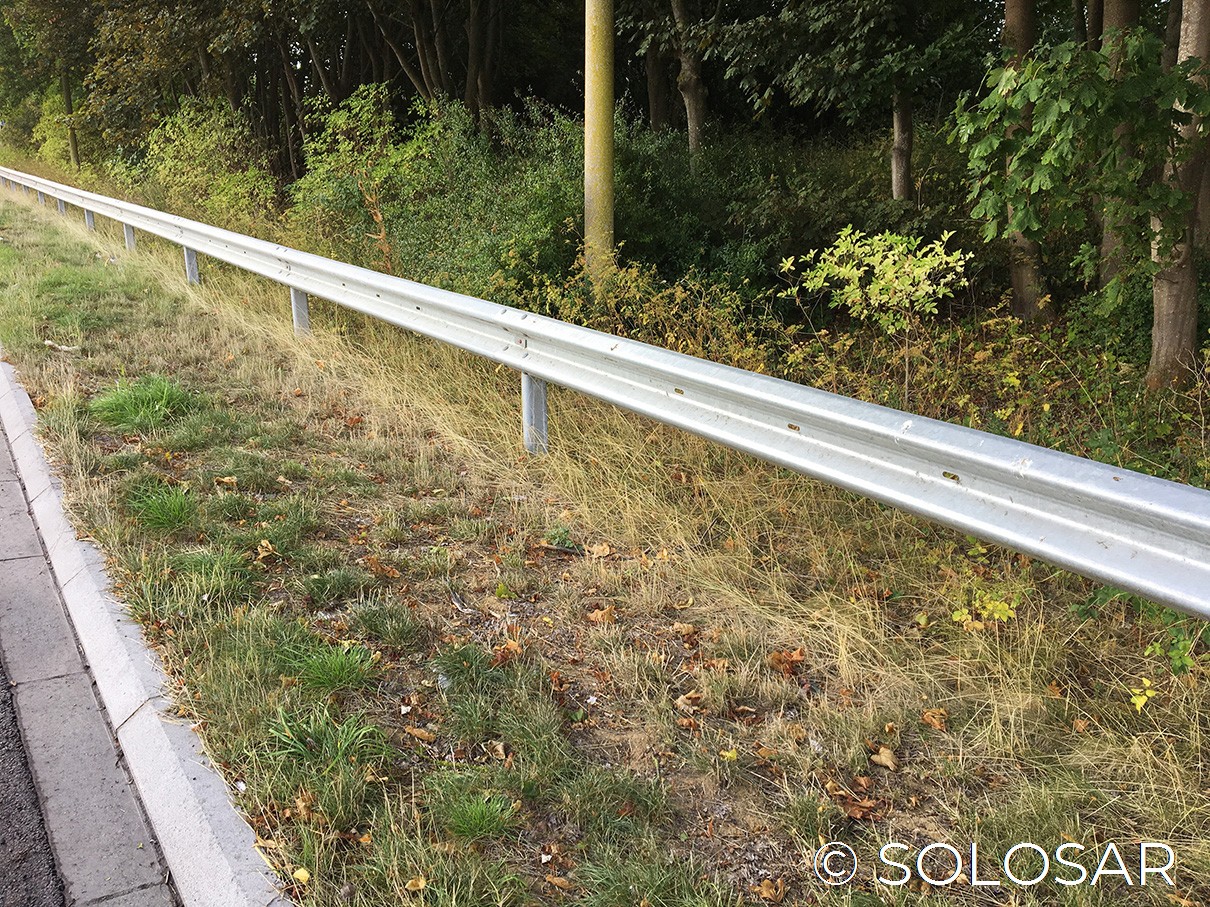

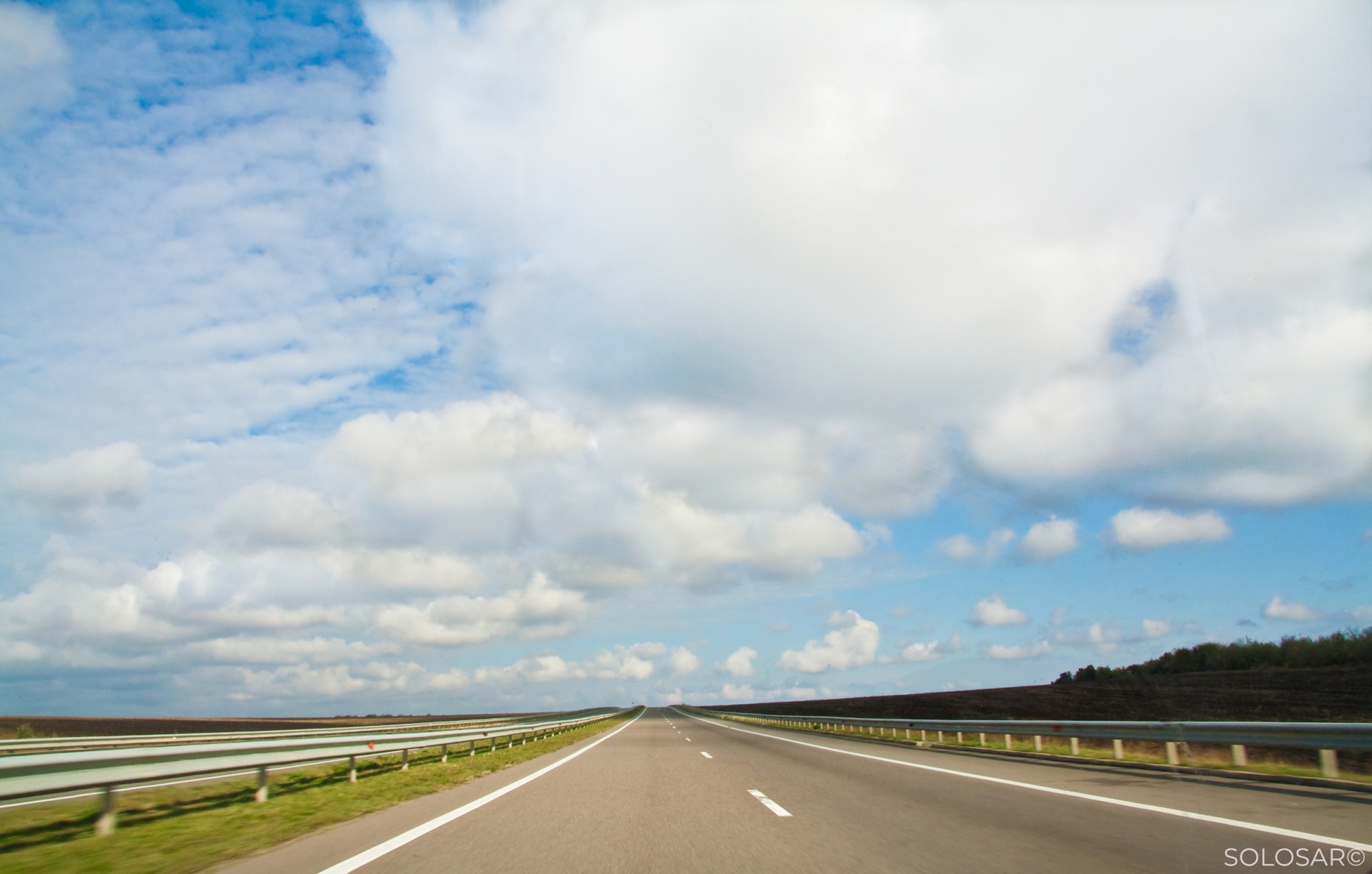

Product view
