HEINTZMANN BASIC BARRIER 2.0 Plus - HLK
Reference: HBB 2.0 Plus-HLK
- Description
- Technical data
- Product view
Description
Heintzmann Basic Barrier 2.0 Plus-HLK is a simple roadside barrier with a narrow operating width. It has been developed with maximum optimisation of weight and performance in mind
It offers optimum performance in its restraint level category N2-W3-A and H1-W4-A. The device is therefore L1-W4-A.
The advantages of the Heintzmann Basic Barrier 1.33 Plus-HLK
- Compatible with all devices of the HBB PLUS HLK family
- Classic post type (C125)
- Without spacer
- Installation: on the shoulder of the road
- Allows to isolate an obstacle located at only 1 m from the barrier in N2 and 1,20 m in H1 level
- Can be connected to NF GCU, GRC and GS2 devices and CE HBB 1.33 PLUS HLK
HBB is a complete family of N2 level devices allowing the operating width to be varied from W2 to W5 by simply changing the centre-to-centre distance of the posts: see the other products of the HBB range.
Technical data
SPECIFICATIONS:
A-profile beam in steel quality S355JO
Type of post: steel C 125 S235 JR - length: 1,60 m

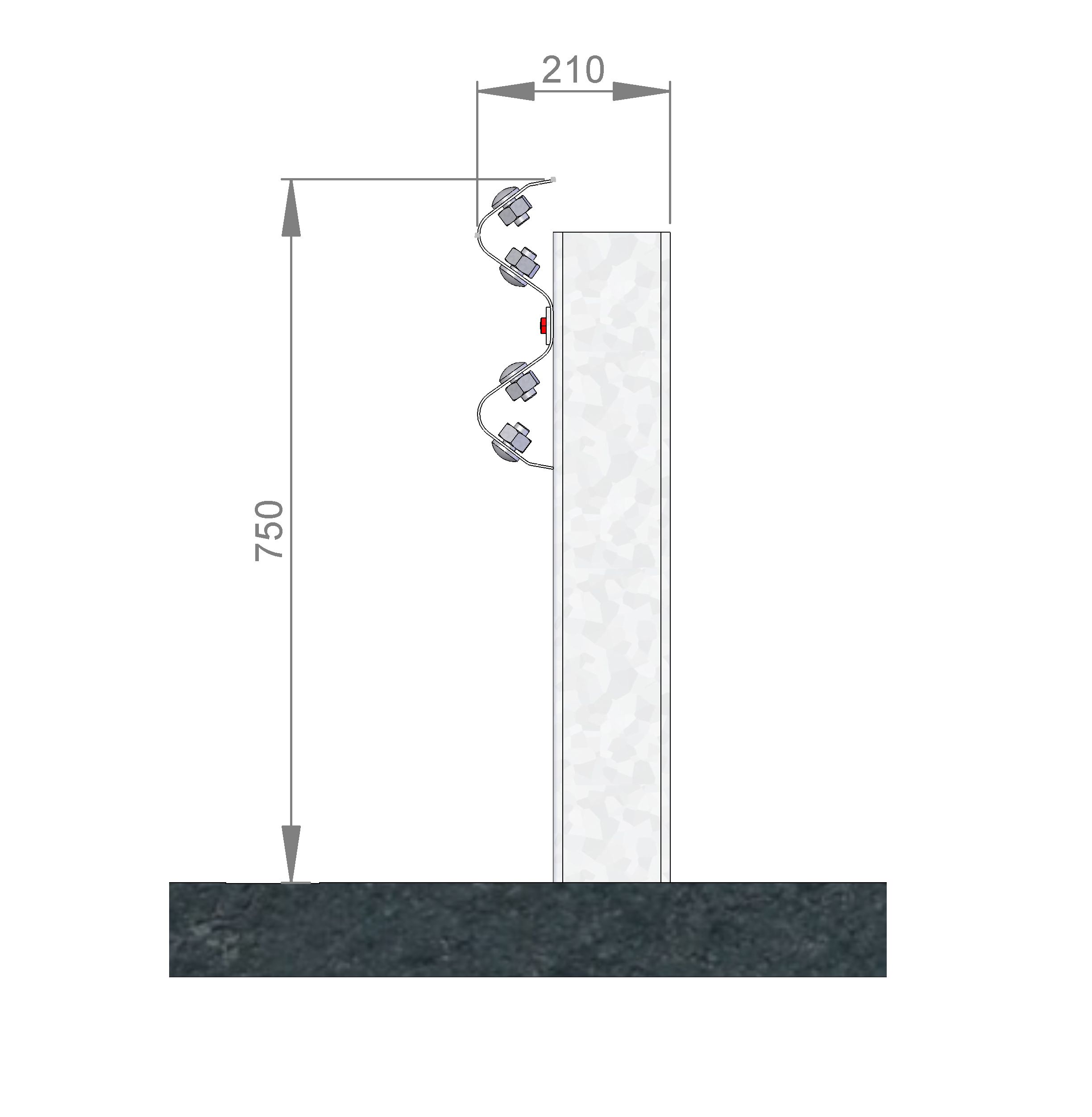

Beam profile: profile AF-HLK in S355 JR steel

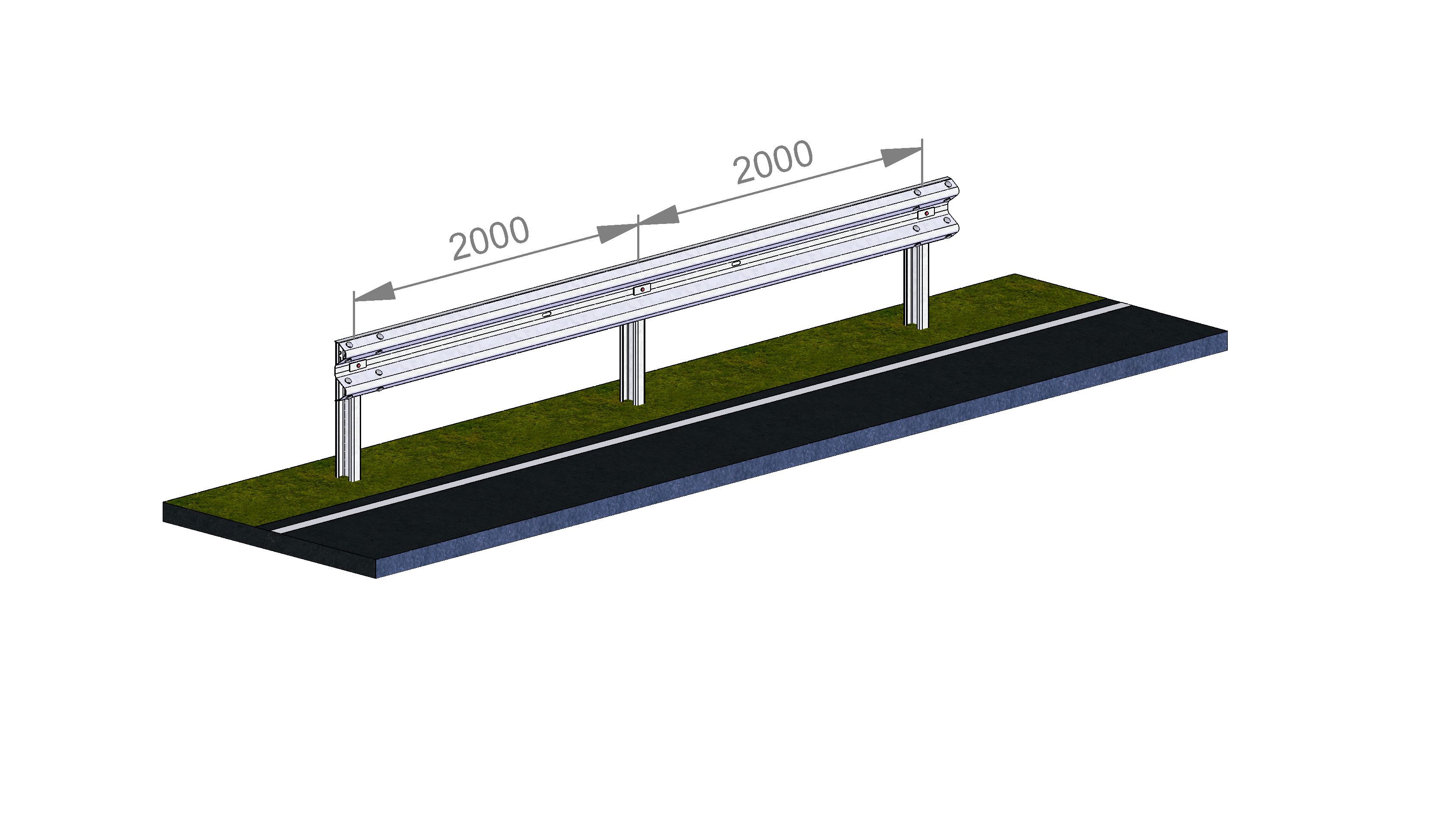

Post spacing: 2 m
Weight per lm: 19 kg
NF058 connection certificates available on the following products: GCU-NF / GRC-NF / GS2-NF / HBB 1.33 Plus
Tested length: 52 m in level H1 et 40 m in level N2

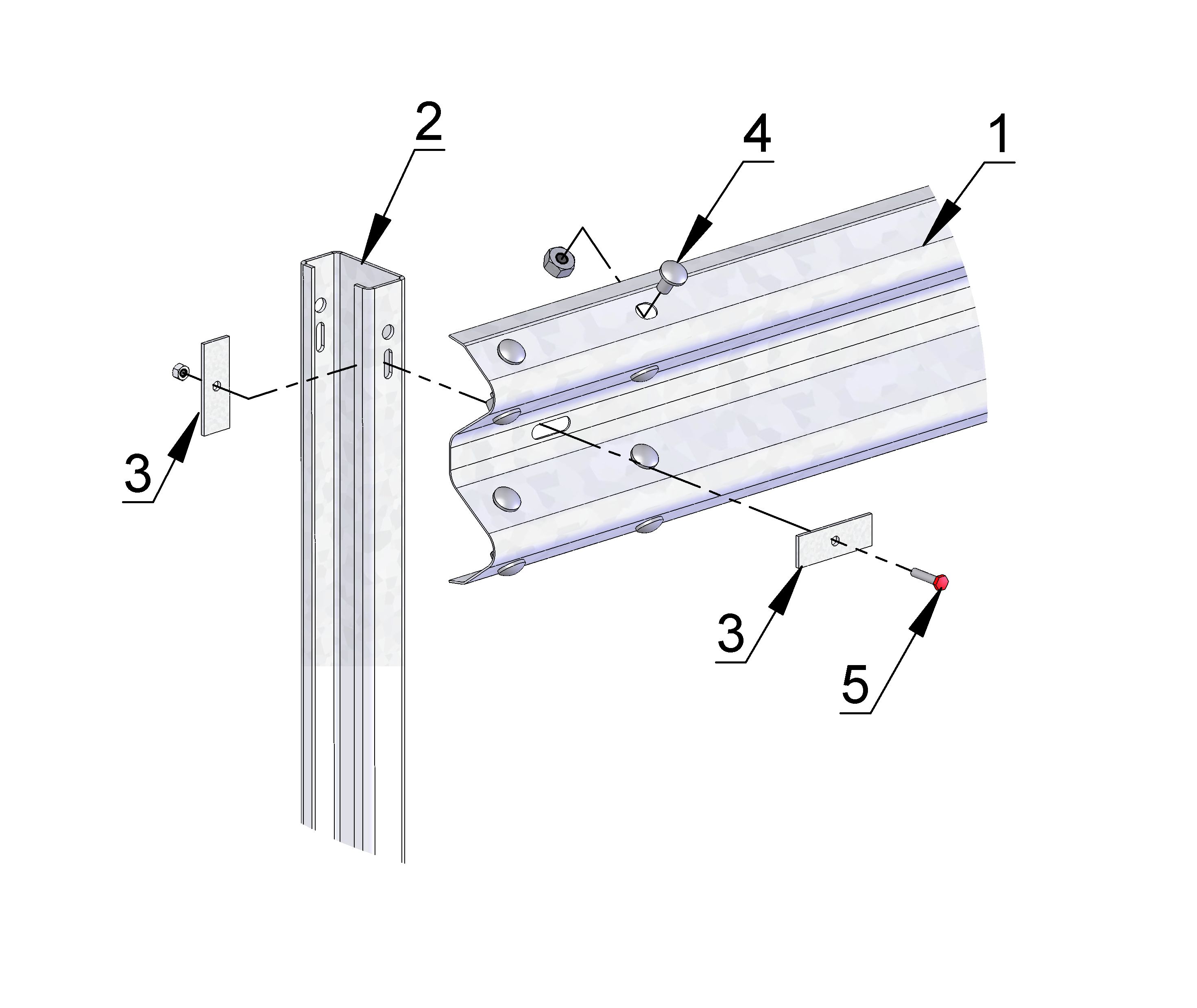

Product view
