HEINTZMANN BASIC BARRIER 1.33 BW - HLK for engineering structures
Reference: HBB 1.33 BW-HLK
- Description
- Technical data
- Product view
Description
Heintzmann Basic Barrier 1.33 BW - HLK is a simple barrier for installation on base plate posts for structures and stringers. It has a narrow operating width. It has been developed with a view to optimising weight and performance
It offers optimum performance in its category of restraint level H1-W2-A
The advantages of the Heintzmann Basic Barrier 1.33 BW Plus-HLK
- Compatible with all devices of the HBB PLUS HLK family
- Classic post type (C125)
- Without spacer
- Installation: on the shoulder of the road
- Allows to isolate an obstacle located at only 80 cm from the barrier
- Can be connected to CE HBB 1.33 PLUS HLK devices
HBB is a complete family of level N2 and H1 devices allowing the operating width to be varied from W2 to W5 by simply changing the distance between posts: see the other products of the HBB range.
Technical data
SPECIFICATIONS:
A-profile beam in steel quality S355JO
Type of post: C125 on base plate in S235 JR steel

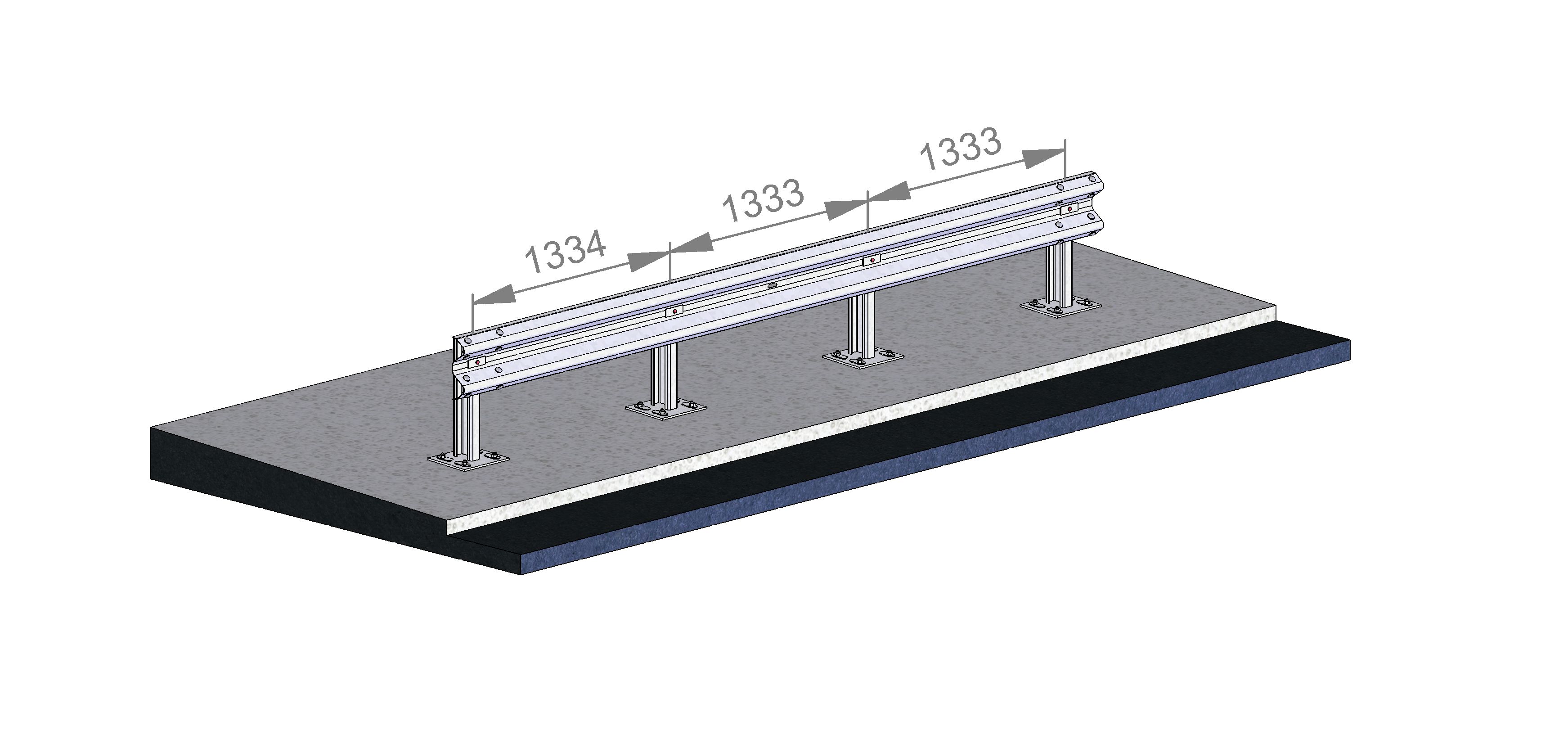

Post spacing: 1,33m
Weight per lm: 19.6 kg
Beam profile: profile AF-HLK in S355 JR steel
NF058 connection certificates available on the following products: HBB 1.33 Plus-HLK
Tested length : 60 m in level H1

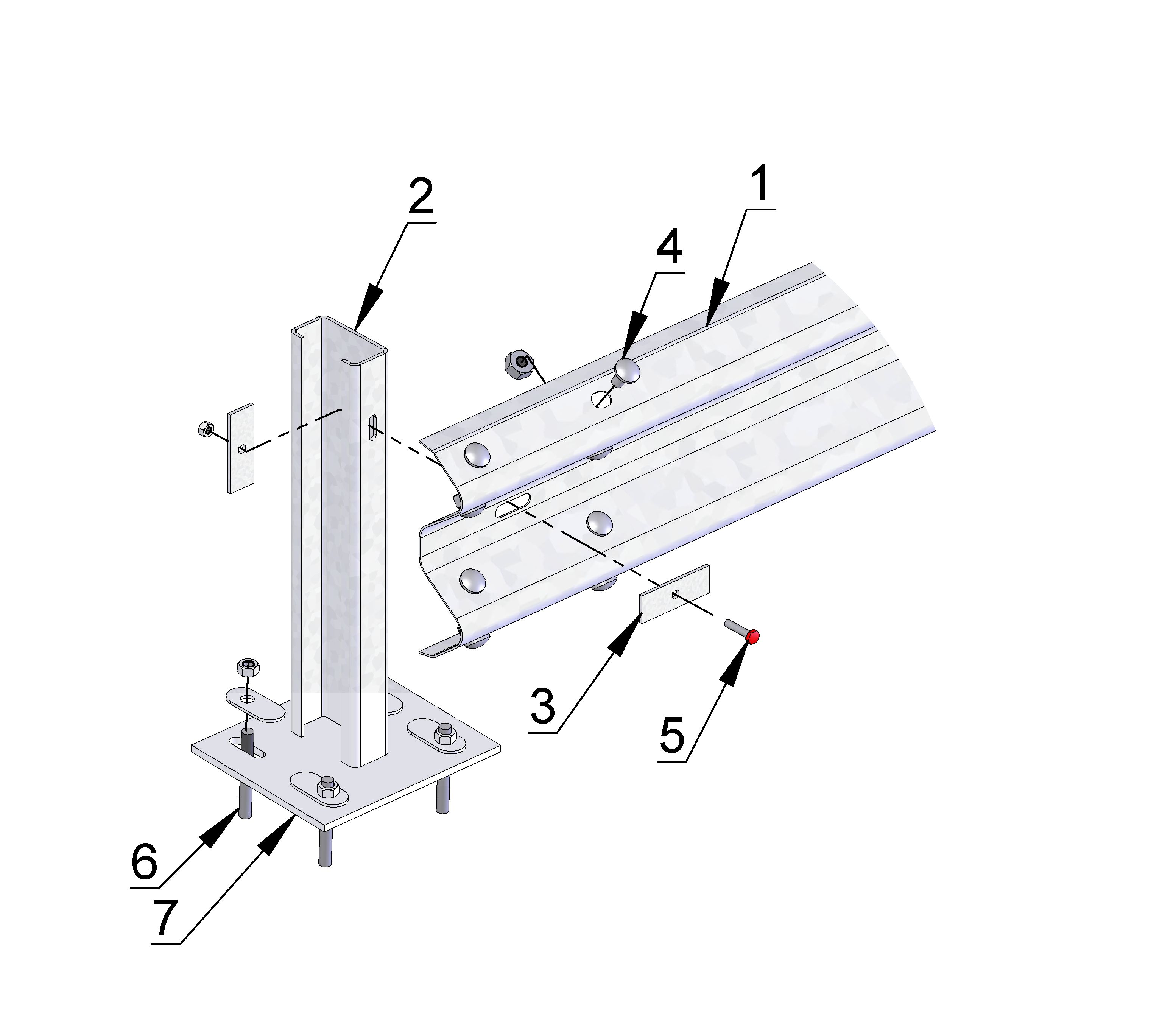

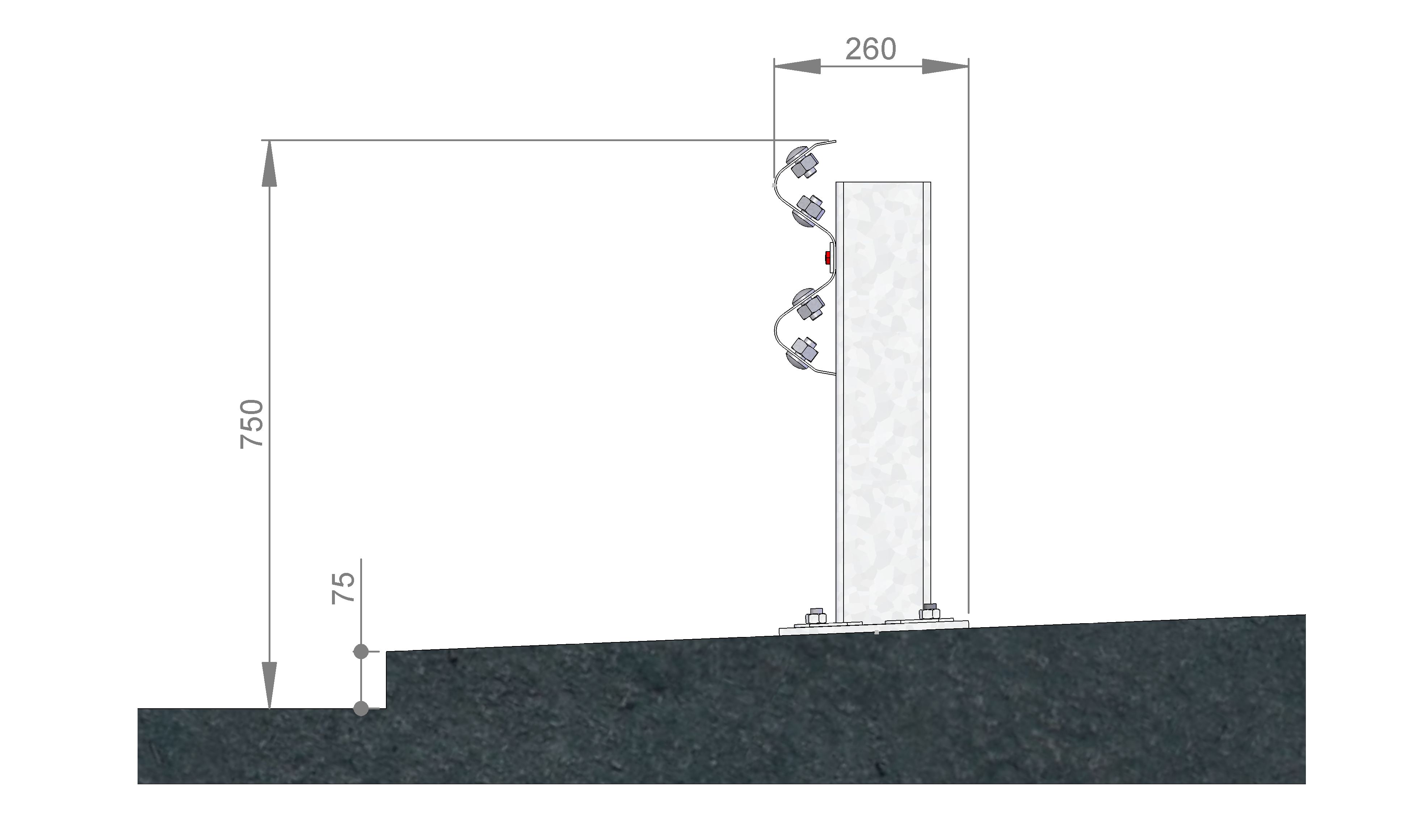

Product view
