UNISAFE LIGHT 3W 2.00 BW – h2 vehicle restraint system for roadside use

Description

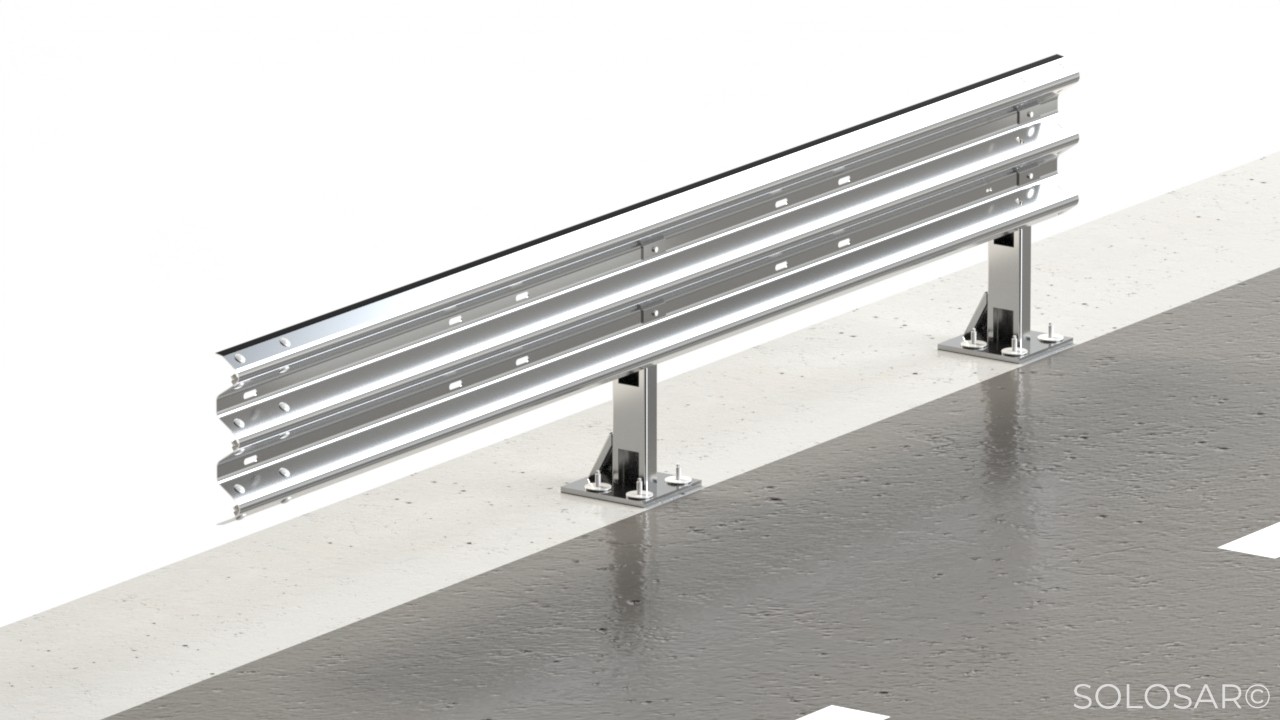

🛡️ UNISAFE LIGHT 3W 2.00 BW – H2 Restraint System – Triple Beam for Engineering Structures

The UNISAFE LIGHT 3W 2.00 BW, developed by UNIPROMET and distributed by SOLOSAR, is a CE-certified H2 metal safety barrier specifically designed for installation on civil engineering structures, viaducts, and concrete decks. Thanks to its triple-wave beam, it provides high energy absorption while maintaining a compact design and easy installation with anchor bolts on concrete.



🔧 Technical Specifications:

Parameter UNISAFE LIGHT 3W 2.00 BW H2
Containment level H2 (EN 1317-2)
Working width W4: 1.24 m
Dynamic deflection 0.90 m
Vehicle intrusion 1.70 m
ASI level B
Beam type Triple wave
System width 0.21 m
Anchoring depth 0.165 m (anchored into concrete)
Test length 52 m
Installation area Engineering structures, concrete slabs











✅ Key Benefits:

  • H2 containment level for high-risk areas or heavy traffic routes

  • Reinforced triple-wave beam for optimal energy dissipation

  • Concrete anchoring system (depth: 165 mm)

  • Controlled working width: 1.24 m

  • Limited vehicle intrusion: 1.70 m

  • Moderate dynamic deflection: 0.90 m

  • Slim profile (0.21 m) – ideal for narrow structures

  • ASI B: balance between occupant safety and impact absorption

  • Fully compliant with EN 1317 standards

📄 Recommended Applications:

  • Engineering structures, viaducts, retaining walls, and concrete decks

  • High-traffic roads or strategic areas requiring H2 containment

  • Environments with limited lateral clearance

  • New projects or refurbishments with concrete anchoring constraints
