UNISAFE DOUBLE 1.33 - H2 W3 without a caisson

Description

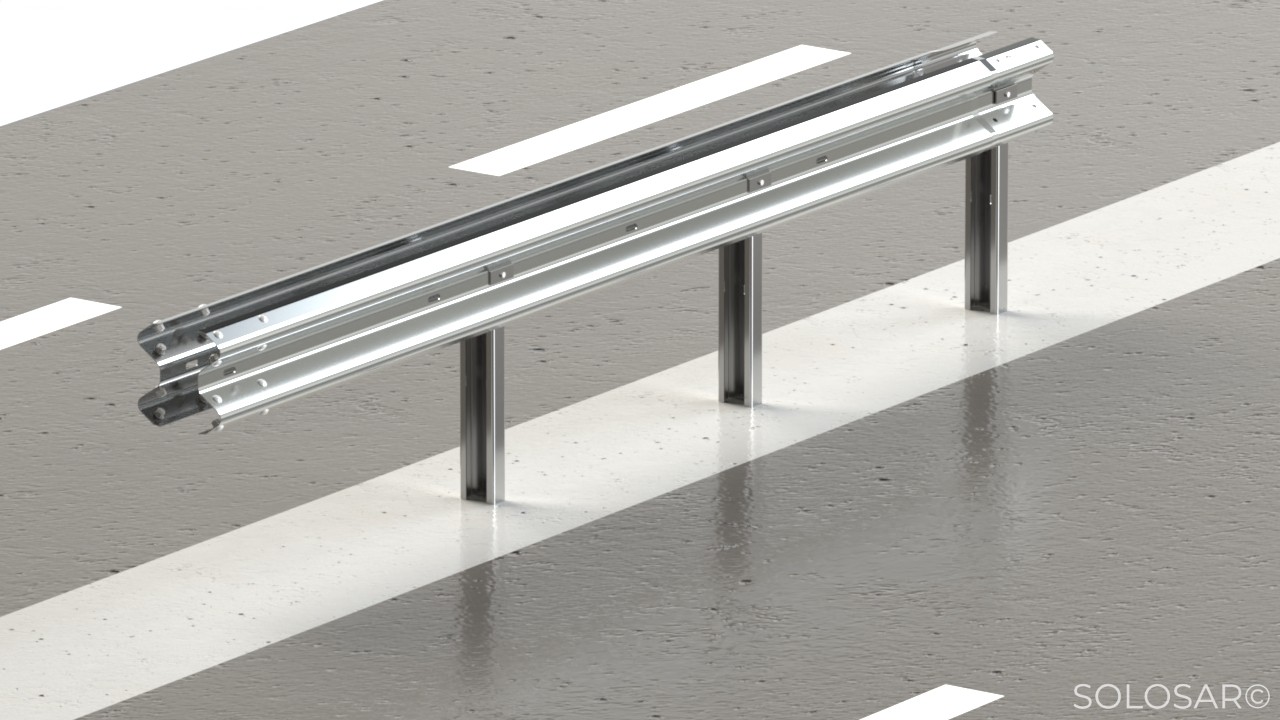

🛡️ UNISAFE DOUBLE 1.33 – H2 Road Restraint System – Enhanced Performance for TPC

The UNISAFE DOUBLE 1.33, developed by UNIPROMET and distributed by SOLOSAR, is a CE-certified H2 metal road restraint system designed for installation in TPC (Traffic Protection Corridors). Featuring a double-beam structure, it provides excellent containment capacity with controlled deflection and moderate vehicle intrusion, while maintaining a compact ground footprint.

🔧 Technical Specifications:

Parameter UNISAFE DOUBLE 1.33 H2
Containment level H2 (EN 1317-2)
Working width W3: 1.00 m
Dynamic deflection 0.90 m
Vehicle intrusion 1.42 m
ASI level B
Beam type Double beam (A or B-profile)
System width 0.31 m
Anchoring depth 0.92 m
Test length 80 m
Installation area TPC (Traffic Protection Corridors)

✅ Key Benefits:

  • H2 certification compliant with EN 1317 European standard

  • Double beam design providing an optimal balance of strength and flexibility

  • Moderate dynamic deflection: 0.90 m

  • Controlled vehicle intrusion: 1.42 m – suitable for areas with limited clearance

  • Compact system width: 0.31 m

  • Post anchoring depth of 0.92 m for enhanced stability

  • ASI B: good safety level for vehicle occupants

📄 Recommended Applications:

  • National, departmental, or rural roads with high traffic volumes

  • TPC (Traffic Protection Corridors)

  • Environments with limited space and the need for H2 containment

  • Roadside installations or boundary safety projects
