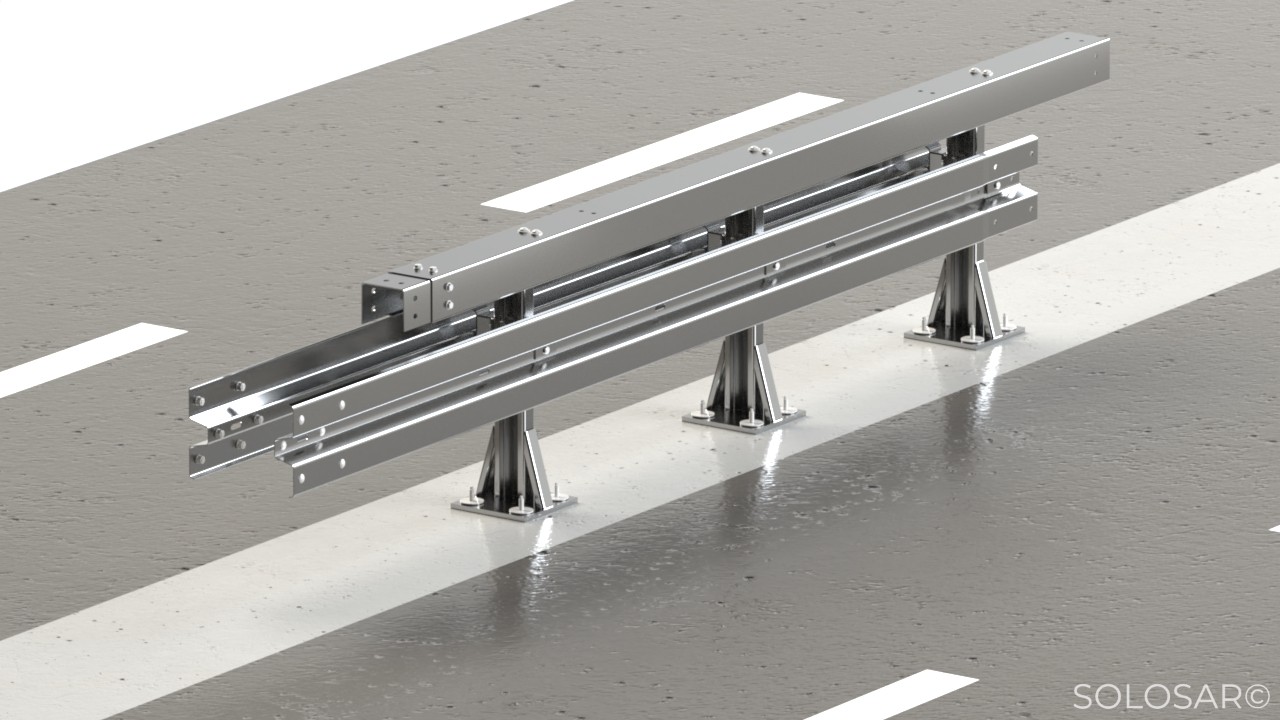

UNISAFE DOUBLE 1.33 - H2 W2 with a caisson

Description

🛡️ UNISAFE DOUBLE 1.33 BW – H2 Road Restraint System – Compact, Stable, and Secure for TPC on Bridges and Concrete Structures

The UNISAFE DOUBLE 1.33 BW, developed by UNIPROMET and distributed by SOLOSAR, is a CE-certified H2 metal road restraint system designed for TPC (Traffic Protection Corridors) on bridges and concrete structures that require a high level of containment, while ensuring a minimal ground footprint, reduced deflection, and excellent stability. Featuring a double beam and anchor bolt installation, it is ideally suited for structures with limited space.

🔧 Technical Specifications:

Parameter UNISAFE DOUBLE 1.33 BW
Containment level H2 (EN 1317-2)
Working width W2: 0.80 m
Dynamic deflection 0.40 m
Vehicle intrusion 0.90 m
ASI level B
Beam type A-profile or B-profile (double)
System width 0.41 m
Anchoring depth 0.165 m (anchor bolt for concrete)
Test length 52 m
Installation area TPC, bridges, concrete slabs

✅ Key Benefits:

  • H2 containment level for high-traffic infrastructures

  • Reinforced double beam providing an optimal balance of weight and performance

  • Low dynamic deflection: 0.40 m

  • Vehicle intrusion limited to 0.90 m – perfect for areas with restricted clearance

  • Concrete anchoring system (165 mm depth) for secure fixation on structures

  • Compact working width: 0.80 m (W2)

  • Stable and robust structure: 0.41 m width, offering high security without excessive ground footprint

  • ASI B: high safety level for vehicle occupants

  • Fully compliant with EN 1317-2 European standard

📄 Recommended Applications:

  • Bridges, beams, viaducts, walls, and concrete structures

  • Roads with high traffic requiring H2 containment

  • Urban sites, technical access points, industrial zones
