UNISAFE 2.0 BW – h1 vehicle restraint system for roadside use

Description

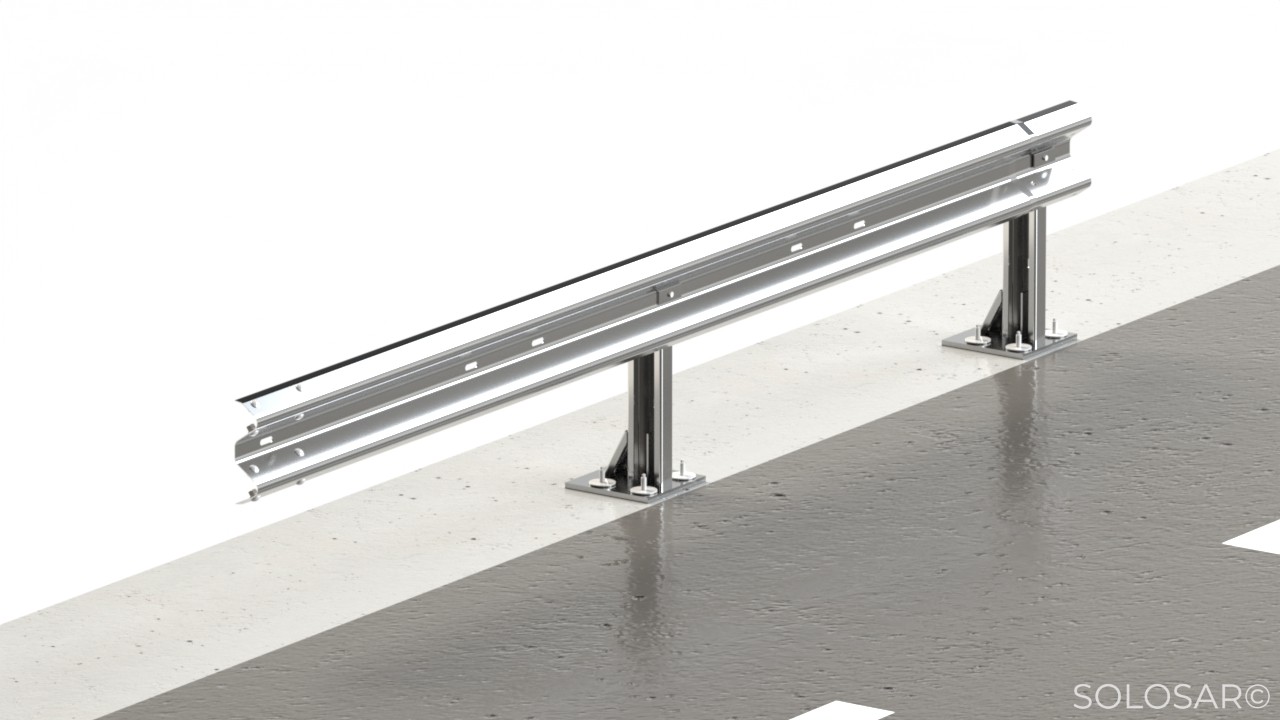

🛡️ UNISAFE 2.0 BW – H1 Road Restraint System – Designed for Bridges and Concrete Structures

The UNISAFE 2.0 BW, developed by UNIPROMET and distributed by SOLOSAR, is a CE-certified metal road restraint system specifically designed for installation on bridges and concrete structures. Offering a H1 containment level, it ensures minimal deflection and a compact footprint, making it perfect for structured and constrained environments.

🔧 Technical Specifications:

Parameter UNISAFE 2.0 BW
Containment level H1 (EN 1317-2)
Working width W2: 0.80 m
Dynamic deflection 0.70 m
Vehicle intrusion 2.80 m
Severity Index (ASI) A
Beam type Profile A and Profile B
System width 0.21 m
Support embedding depth 0.125 m (concrete anchoring)
Test length 68 m
Installation area On bridges, concrete slabs

✅ Key Benefits:

  • Purpose-built for infrastructure such as bridges, viaducts, and concrete structures

  • H1 certification according to EN 1317

  • Limited dynamic deflection: 0.70 m, ideal for structured zones

  • Controlled vehicle intrusion: only 2.80 m

  • Easy installation with concrete anchoring (depth: 125 mm)

  • Compact design: 0.21 m wide, ideal for narrow infrastructures

  • ASI A: maximum safety for occupants



📄 Recommended Applications:

  • Road bridges, viaducts, and concrete structures

  • Urban or interurban zones with concrete anchoring requirements

  • Infrastructures needing H1 containment with low deflection

  • Renovation projects or updating existing systems on bridges
