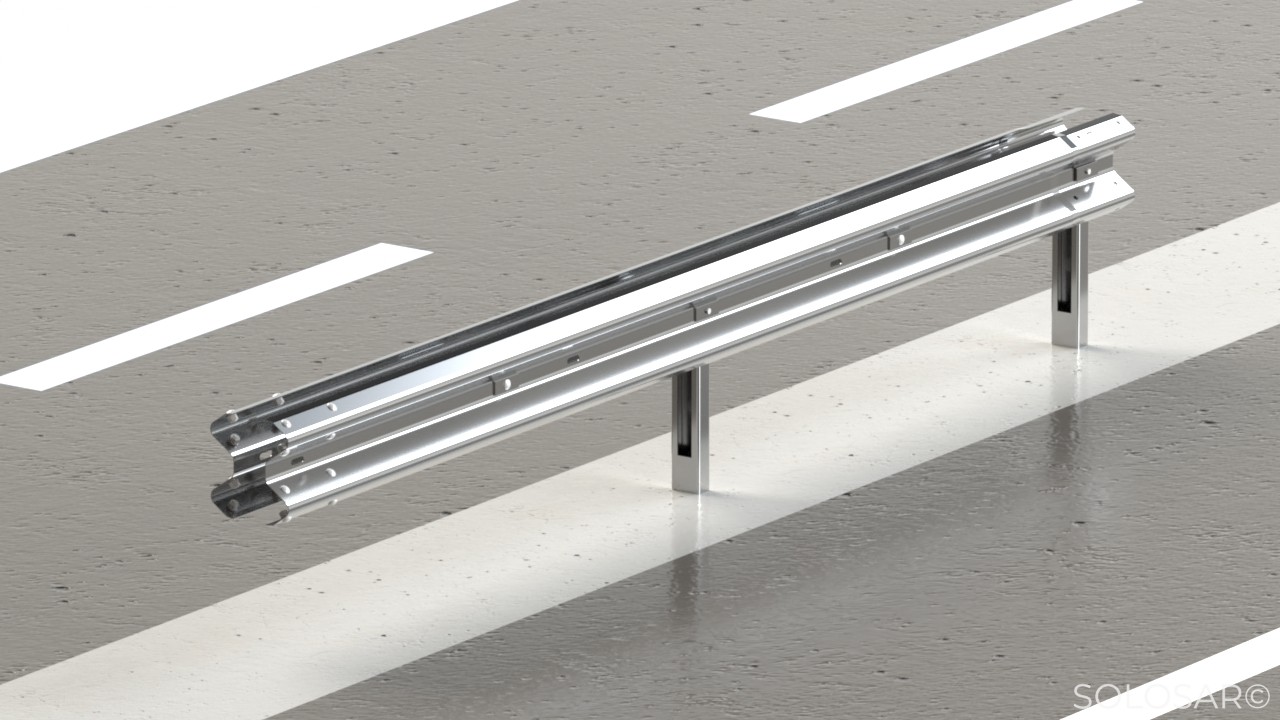

🛡️ UNISAFE LIGHT DOUBLE 2.0 – H2 Road Restraint System for TPC – Double Beam, Lightweight Structure for Roadsides and Embankments
The UNISAFE LIGHT DOUBLE 2.0, developed by UNIPROMET and distributed by SOLOSAR, is a CE-certified H2 metal road restraint system designed for installation on TPC (Traffic Protection Corridors). Featuring a double beam and an optimized structure, it combines high containment efficiency, low ASI (Class A), and ease of installation. Ideal for environments requiring good flexibility while ensuring maximum safety.
🔧 Technical Specifications:
| Parameter | UNISAFE LIGHT DOUBLE 2.0 H2 |
|---|---|
| Containment level | H2 (EN 1317-2) |
| Working width | W4: 1.30 m |
| Dynamic deflection | 1.20 m |
| Vehicle intrusion | 1.90 m |
| ASI level | A (best performance) |
| Beam type | Double beam (A-profile & B-profile) |
| System width | 0.26 m |
| Anchoring depth | 1.04 m |
| Test length | 52 m |
| Installation area | TPC (Traffic Protection Corridors) |
✅ Key Benefits:
-
H2 containment certified to EN 1317-2 for high-traffic roads
-
Dynamic deflection controlled at 1.20 m
-
Vehicle intrusion limited to 1.90 m – ensuring safety for sensitive areas
-
ASI A: excellent safety level for vehicle occupants
-
Compact system width: 0.26 m – ideal for narrow embankments
-
Deep post embedment (1.04 m) ensuring optimal stability on loose soils
-
Simple installation for minimal impact on construction time
📄 Recommended Applications:
-
National, departmental, or secondary roads in open areas
-
TPC (Traffic Protection Corridors)
-
Infrastructure with dense traffic requiring a lightweight H2 system
-
Installations with weight constraints or simplified setup
