ECO SAFE 1.33 BW for engineering structures

Reference: A-02291

Description

ECO-SAFE 1.33 Bw is an N2-W1-A and H1-W2-A (class L1) vehicle restraint system compliant with standard EN 1317.

Functionalities:

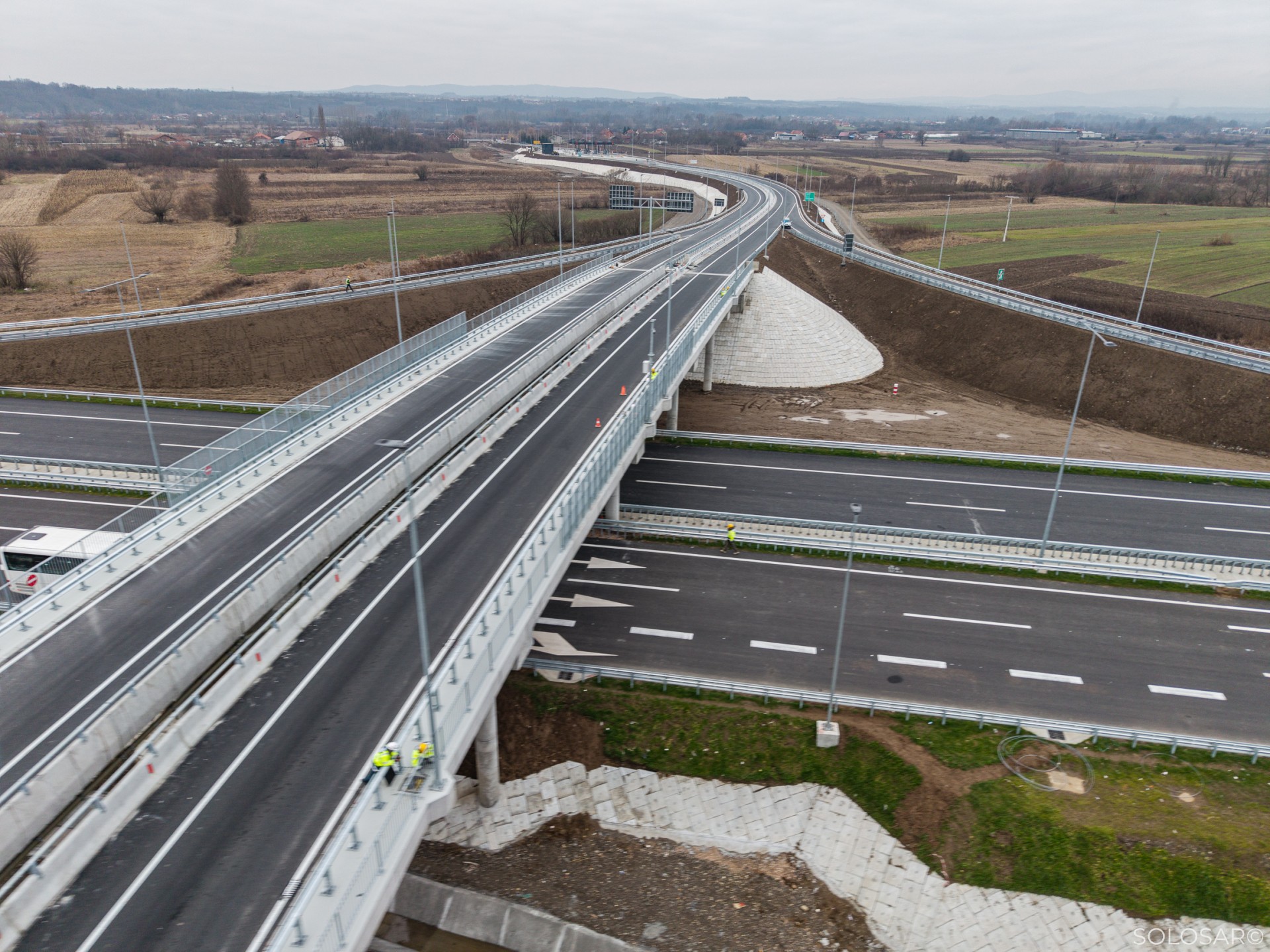

ECO-SAFE 1.33 Bw is a metal vehicle restraint system designed to secure verges, bridge edges and areas exposed to the risk of falling into the void. Its compact galvanised steel structure offers an excellent compromise between containment performance and reduced bulk.

Robust, durable and easy to install, the ECO-SAFE 1.33 Bw is an ideal solution for combining road safety and the protection of vulnerable users, while guaranteeing compliance with European standards.

Main advantages:

Compatible with all devices in the Eco-Safe family
Type of support on classic plate (C125) to be chemically anchored (anchor not supplied)
Without spacer and only 30 cm wide
Installation: on concrete strip footing on engineering structure
Tested very short length 36 ml
Support inclination tolerance ±2% in relation to the actual slope of the ground.
Adapts to bridge cornices (4%) and to flat footings (0%) depending on the model.
Can be installed on ramps or in transition zones (e.g. bridge ends) with slopes of up to 15%.
Standardised spare parts.
