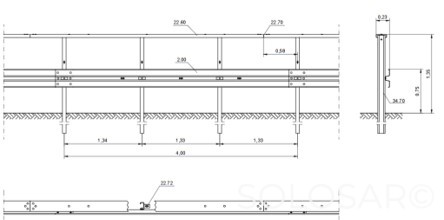

ECO-SAFE 1.33 with pedestrian parapet
Reference: A-02290
- Description
- Technical data
- Downloads
Description
ECO-SAFE 1.33 is an N2-W3-A and H1-W3-A (class L1) vehicle restraint system that complies with standard EN 1317. A variant with an integrated pedestrian parapet is available: see Eco-Safe 1.33.
Features:
ECO-SAFE 1.33 is a metal vehicle restraint system designed to secure hard shoulders, bridge edges and areas exposed to the risk of falling into the void. Its compact galvanised steel structure offers an excellent compromise between restraint performance and reduced bulk.
In its variant with integrated pedestrian parapet, the ECO-SAFE 1.33 also prevents pedestrians from climbing over the barrier, thus meeting the requirements of infrastructure managers in mixed zones, where the cohabitation of vehicles and pedestrians requires increased vigilance.
Robust, durable and easy to install, ECO-SAFE 1.33 is an ideal solution for combining road safety and the protection of vulnerable users, while guaranteeing compliance with European standards.
Main advantages :
- Compatible with all Eco-Safe family devices
- Classic post type (C100)
- Without spacer - only 14 cm wide
- Installation: on the hard shoulder
- Allows an obstacle located only 1 m from the barrier to be isolated at level H1
- Permanently in stock at SOLOSAR
Technical data
CHARACTERISTICS:
Performance EN 1317-2: N2-W3-B and H1-W4-B (class L1)
Standard dynamic deflection: 0.8 m (N2) and 0.8 m (H1)
Post interdistance: 1.33 m
Tested length: 48 lm
Post C 125 - length 2.40 m - Steel S355 JR
Plate in AD or BD profile in steel S235JR
Bolts included
All components are hot-dip galvanised according to ISO1461 and EN 10346
Available in standard version without pedestrian parapet: here
Downloads
- Eco-Safe 1.33 EC certificate with pedestrian parapet ( accรจs rรฉservรฉ)
- ECO-SAFE 1.33 installation instructions ( accรจs rรฉservรฉ)
