S8 pedestrian parapet

Description

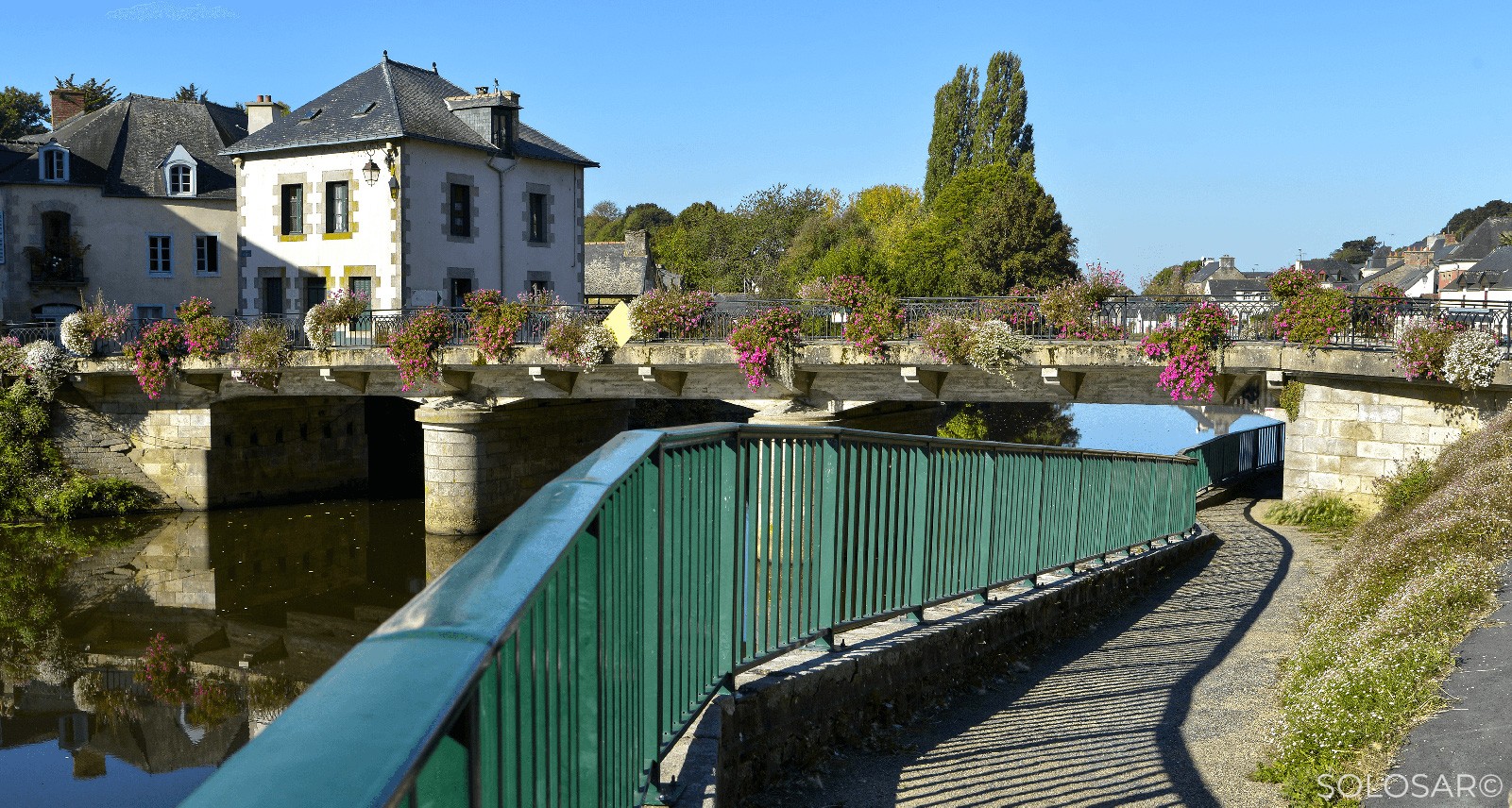

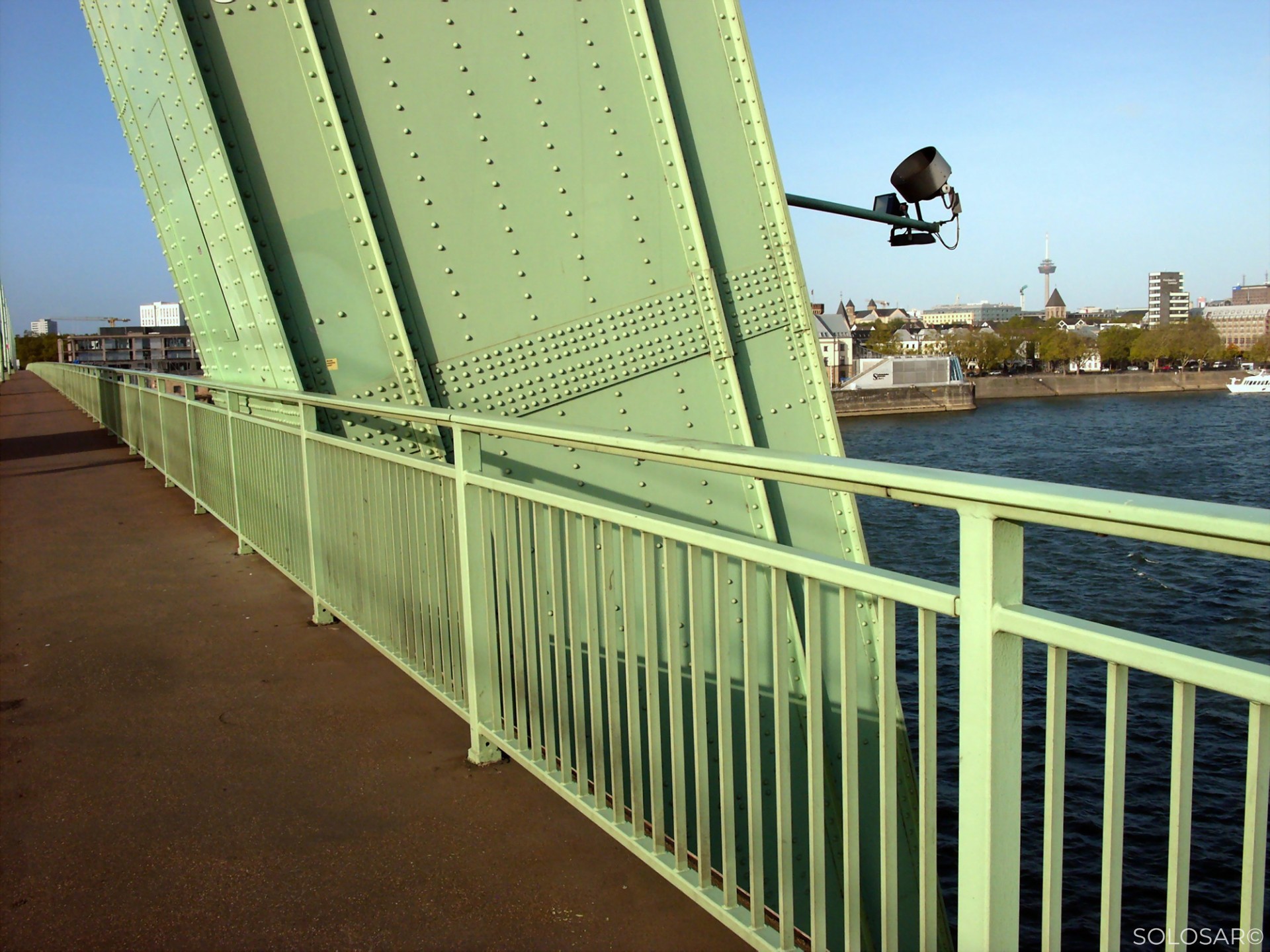

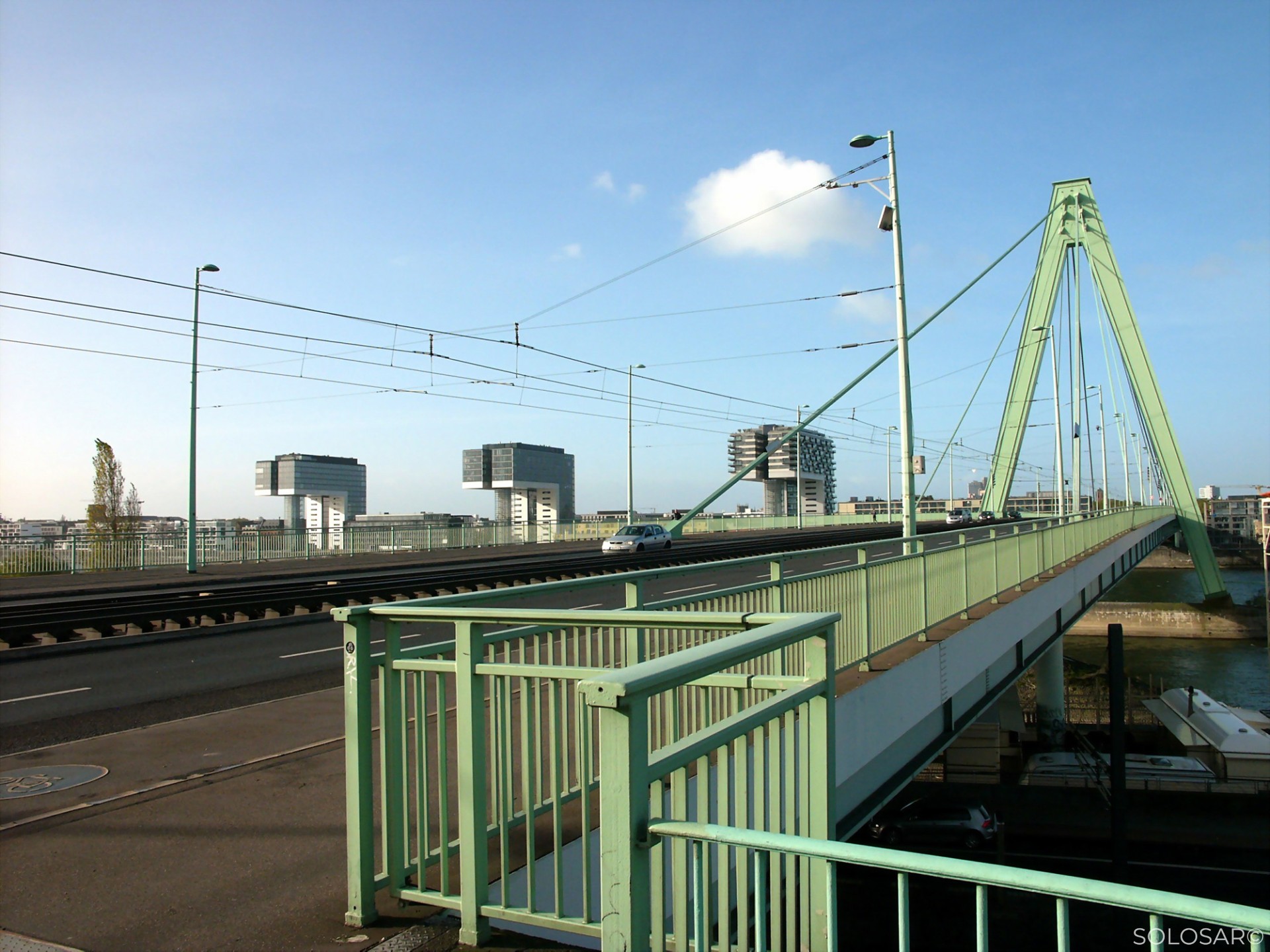

The S8 pedestrian parapet is a model adapted for pedestrian traffic on bridges.

The S8 pedestrian parapet is adapted for curves and slopes. Manufacture and customization according to the constraints of the site.

Certified according XP-P 98-405 and FDP 98-406.




The strong points of the S8 pedestrian parapet:

- Products adapted for curves and slopes thanks to a special manufacturing on request

- Easy to assemble thanks to the use of swaged or welded sleeves

- Easy to repair

- Continuity of the handrail

- Customizable thanks to the powder coating according to the RAL of your choice (10 years anti-corrosive guarantee thanks to the galvanization of this product).

  • 2 types of anchoring possible: sealed posts or welded posts on base plate. It is possible to reinforce your S8 pedestrian parapet by adding type A or B beams/guardails in front of it.

Technical data

SPECIFICATIONS:

Height: 1005 mm

Weight: 25 kg/lm

Guarantee: 10 years anti-corrosive guarantee (hot-dip galvanization)

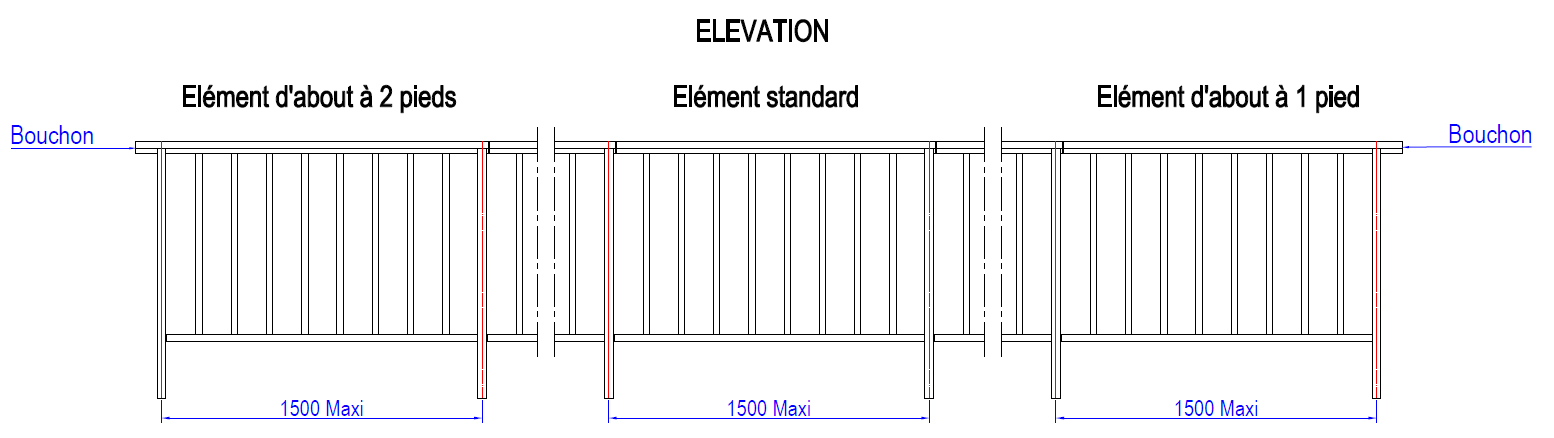

Post spacing: 1500 mm according ISO1461

Posts: sealed posts or welded posts on base plate

Steel: S235 JR according EN10025



INFORMATION ON THE CONSTRUCTION OF S8 pedestrian parapet:

There are 3 possible scenarios for your S8 parapet project.

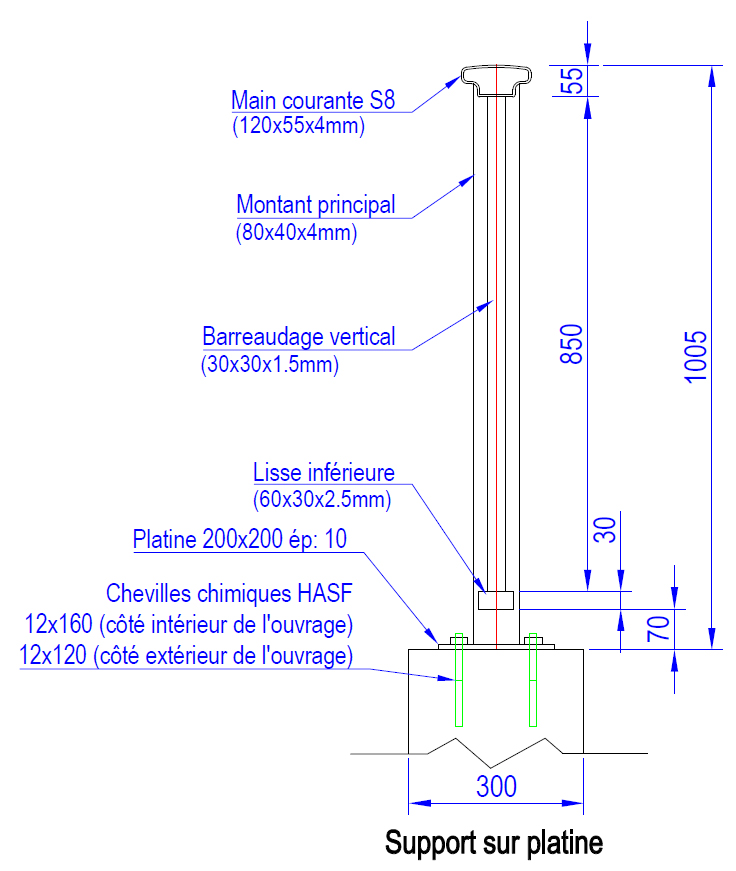

a) For new construction work to install S8 on a base plate: the sill must be at least 260 mm wide and made of C30/37 concrete for a 1000 mm wide pavement.

The width of the sill may vary according to the width of the pavement (the wider the pavement, the wider the sill).




b) If the S8 is installed with posts to be embedded: there will be a 120mm or D150mm reservation + a 2 x 60mm embedment, i.e. 240 or 270 mm of concrete block or sill.

These dimensions vary according to the width of the pavement.




c) For work on existing structures, a calculation note from a concrete design engineer is required to determine the type of anchoring possible depending on the existing deck or sill.

Product view
