GS2 -NF

Reference: GS2

French generic steel road restraint system N2-W5-A.

Description

The GS2-NF system is a French gov. product. Its level of performance according to EN 1317-2 is: N2-W5 (1.34 m) - Dn (1.06 m) and its minimum installation length is 80 lm.

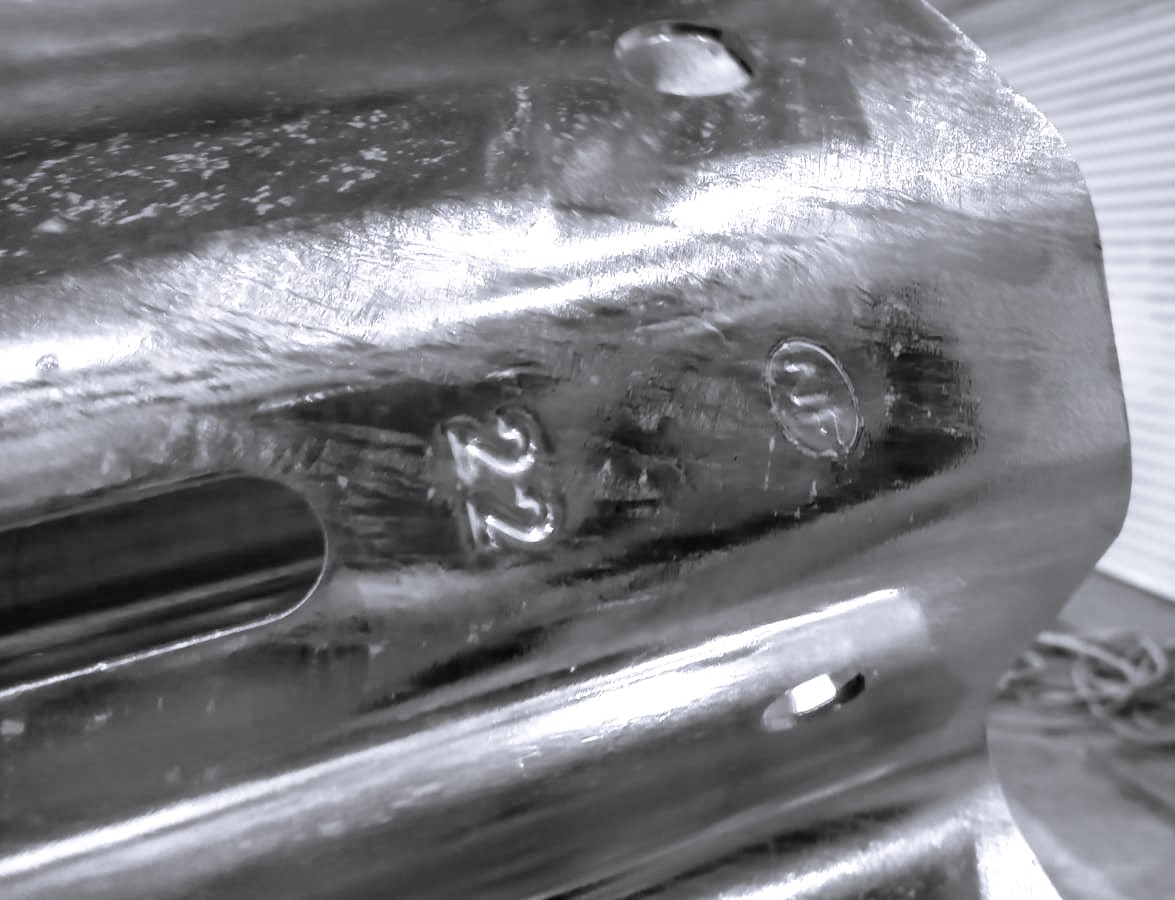

The components of the device are manufactured in accordance with the standards NF P98-415 (02/2018) and NF P98-416 (07/2018). All components must be marked NF + batch number + manufacturer's logo. SOLOSAR is certified by ASCQUER.

Advantages of the GS2 NF

  • Allows to isolate an obstacle located at more than 1,34 m from the barrier
  • Can be connected to the existing NF network
  • A range of components always in stock and adaptable to any NF device and a significant range of accessories





SOLOSAR has developed a similar CE-certified product on the basis of GS2 NF components with improved operating width GS2 PERFORMANCE

For industrial or building protection and prevention of accidents and collisions, please refer to our range SOLOPROTECT®



Technical data

FEATURES:

  • Performance EN 1317-2: N2-W5-A
  • Normalized dynamic deflection: 1.06 m

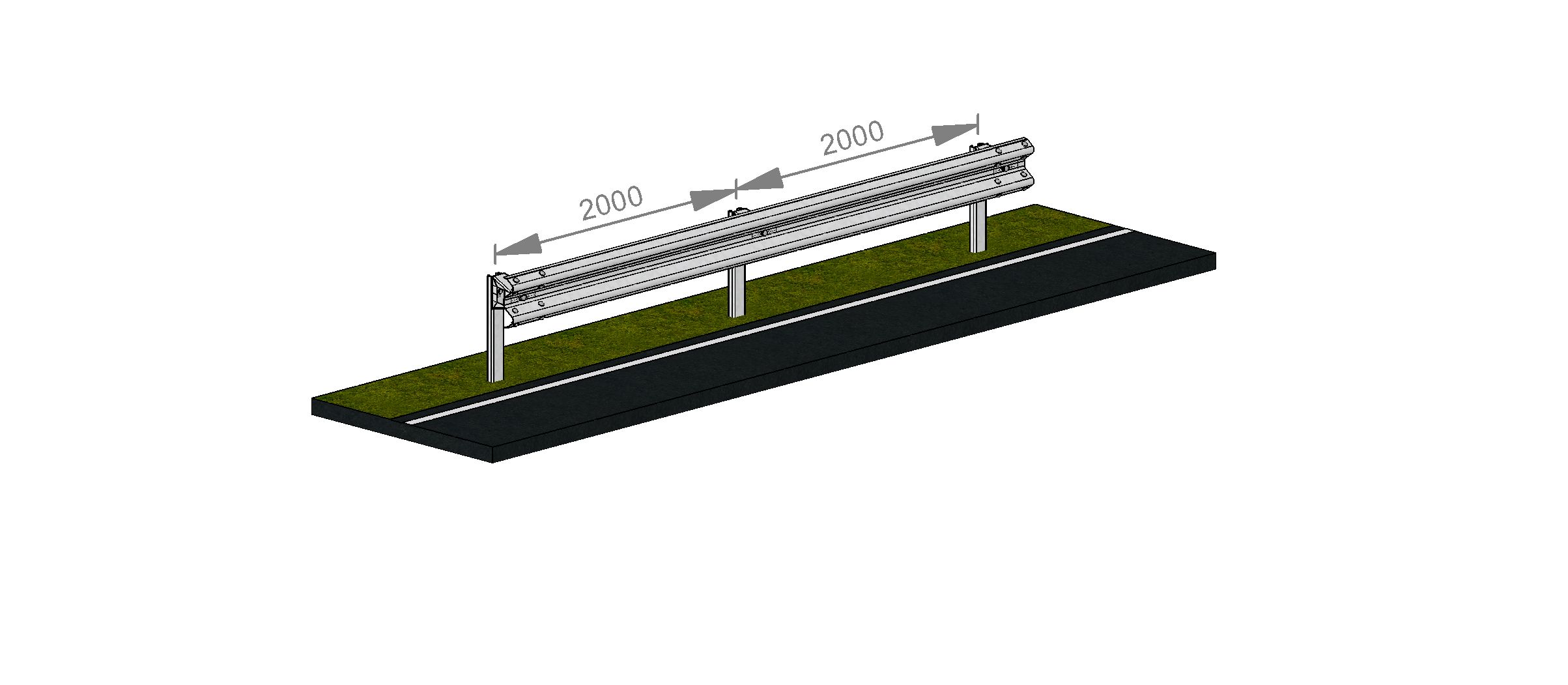

  • Post spacing: 2.00 m
  • Minimum installation length: 80 ml
  • Weight / ml with post 1.5m: 20.5 kg
  • Post C 100-NF in steel S235 JR - length: 1.50 m or 2 m
  • AF (NF) profile rail in S235 JR steel - length 4315 mm
  • Nuts and bolts NF included
  • All components are hot-dip galvanised to ISO1461

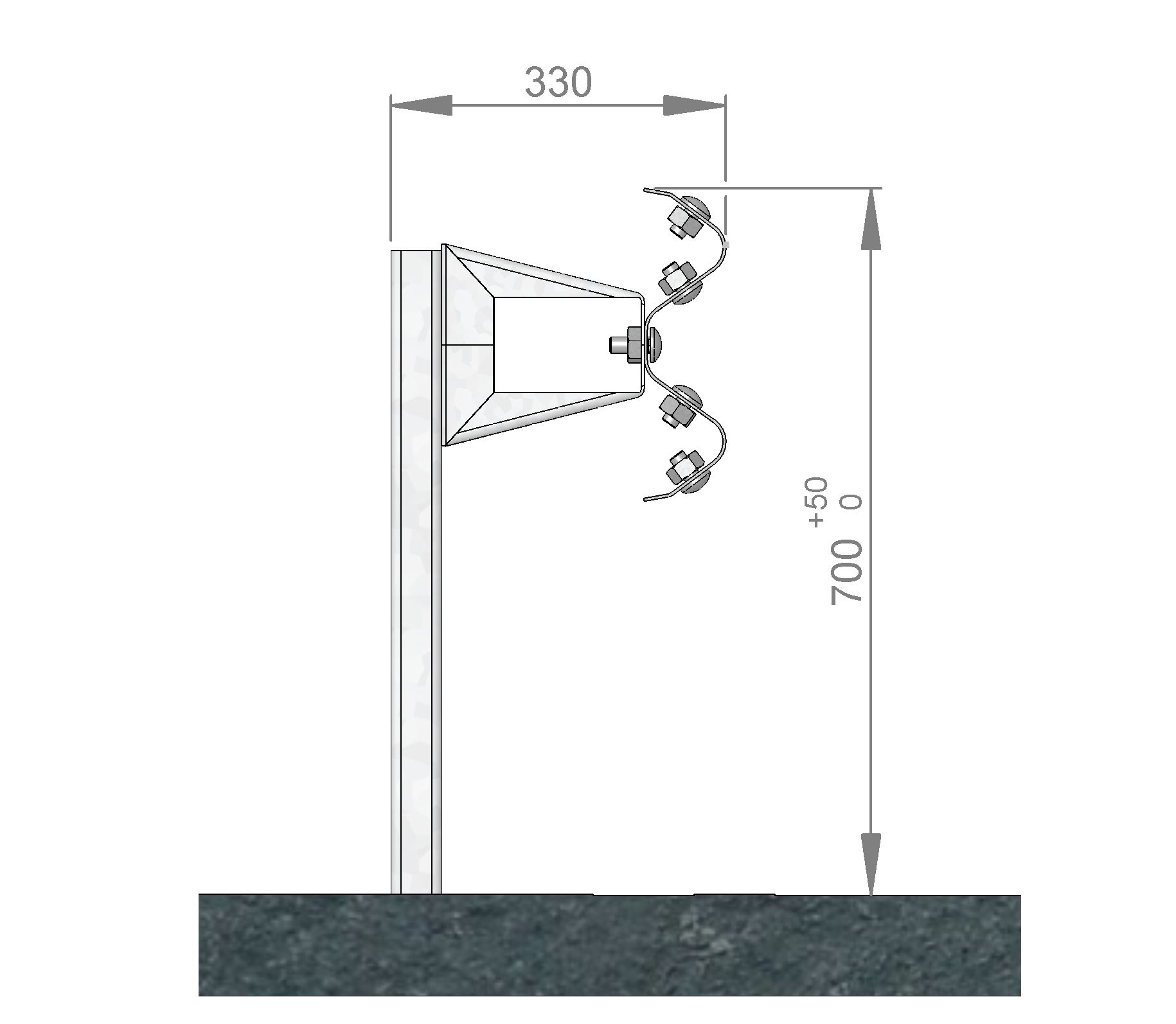

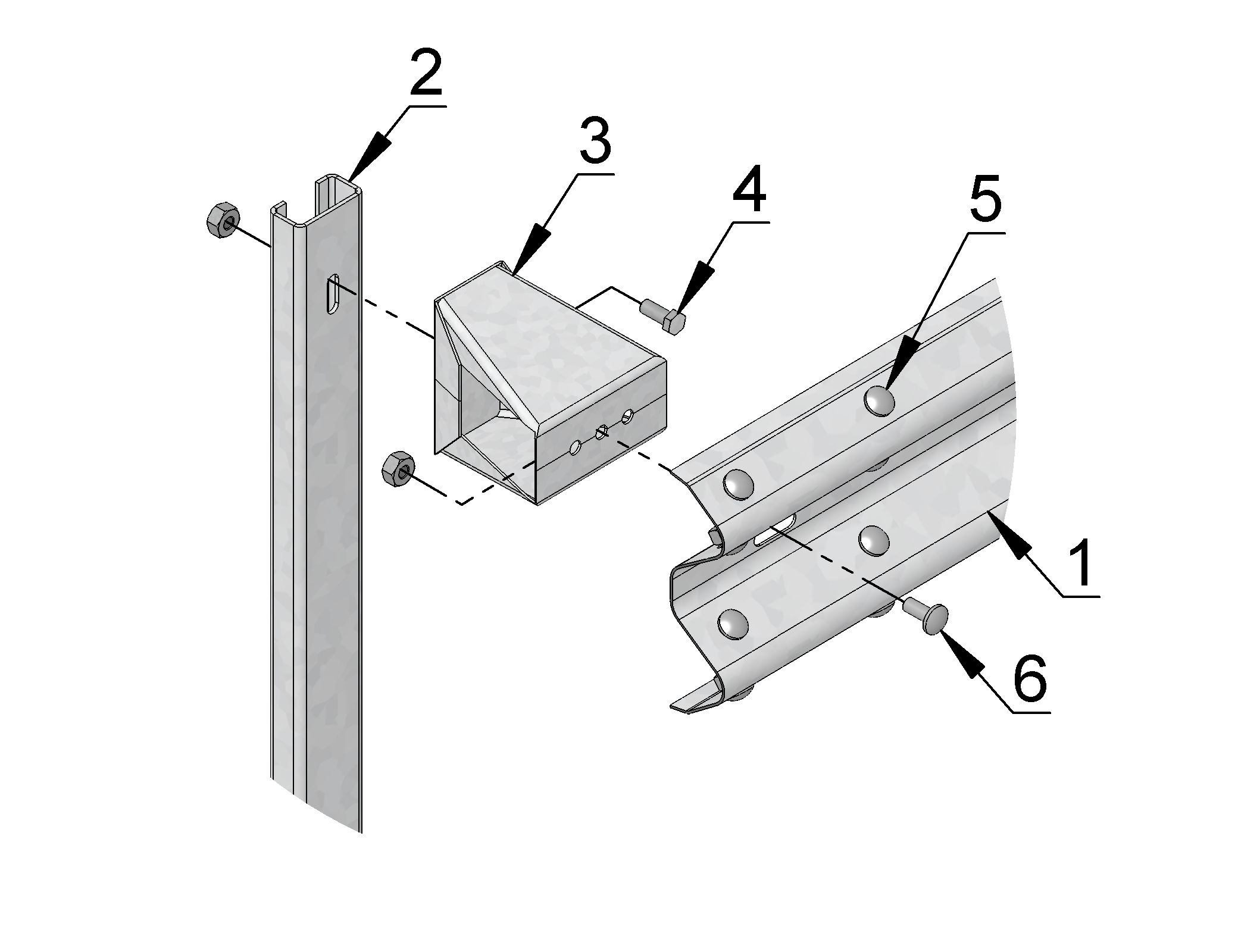

Product view
