Wood and steel baffle assembly gate

The SOLONATURE baffle gate set is ideal for restricting access to motorised vehicles on greenways or cycle paths. This set of 2 half-barriers is made from a hot-dip galvanised steel structure for strength and functionality and a cl. 4 autoclaved solid wood cladding for aesthetic appeal. A safe, durable access control system that combines the aesthetic appeal of wood with the strength of galvanised steel.

The unit is available in 2 m passage width for wide roads, or in 1 m or 1.50 m for narrow roads.

EXCLUSIVE PRODUCT BENEFITS :

• Narrowing effect to force users to reduce their speed on multifunctional cycle paths
• Combination of wood and steel: robust, attractive and durable
• Reduced vandalism, controlled maintenance budget and constant safety
• Installation: support to be embedded in concrete base
• Rail and stiffener: total control over plumbness
• 1-point locking (closed position): by steel pin to be inserted in the pivoting bracket
• Made in France (Moselle)

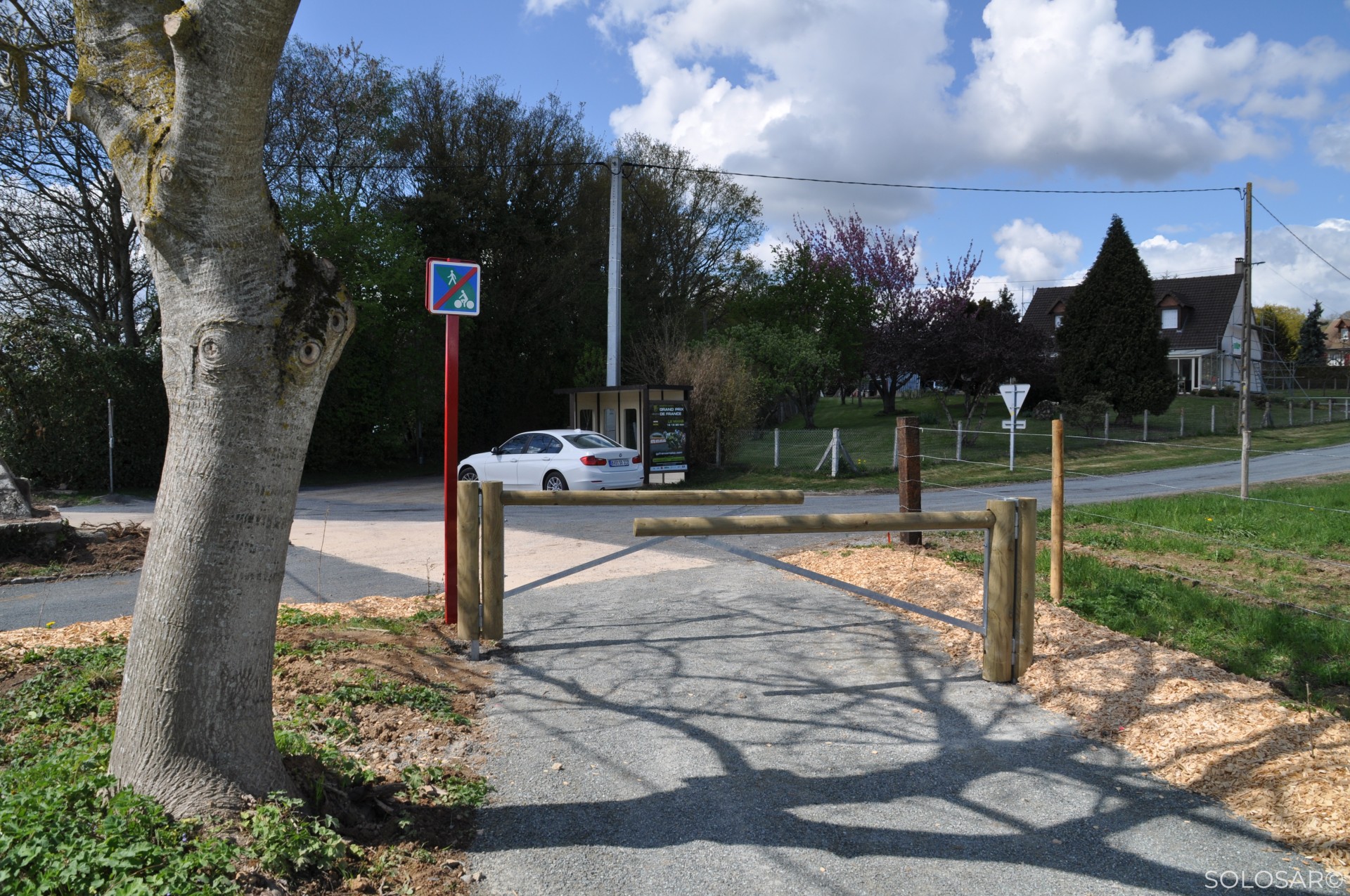

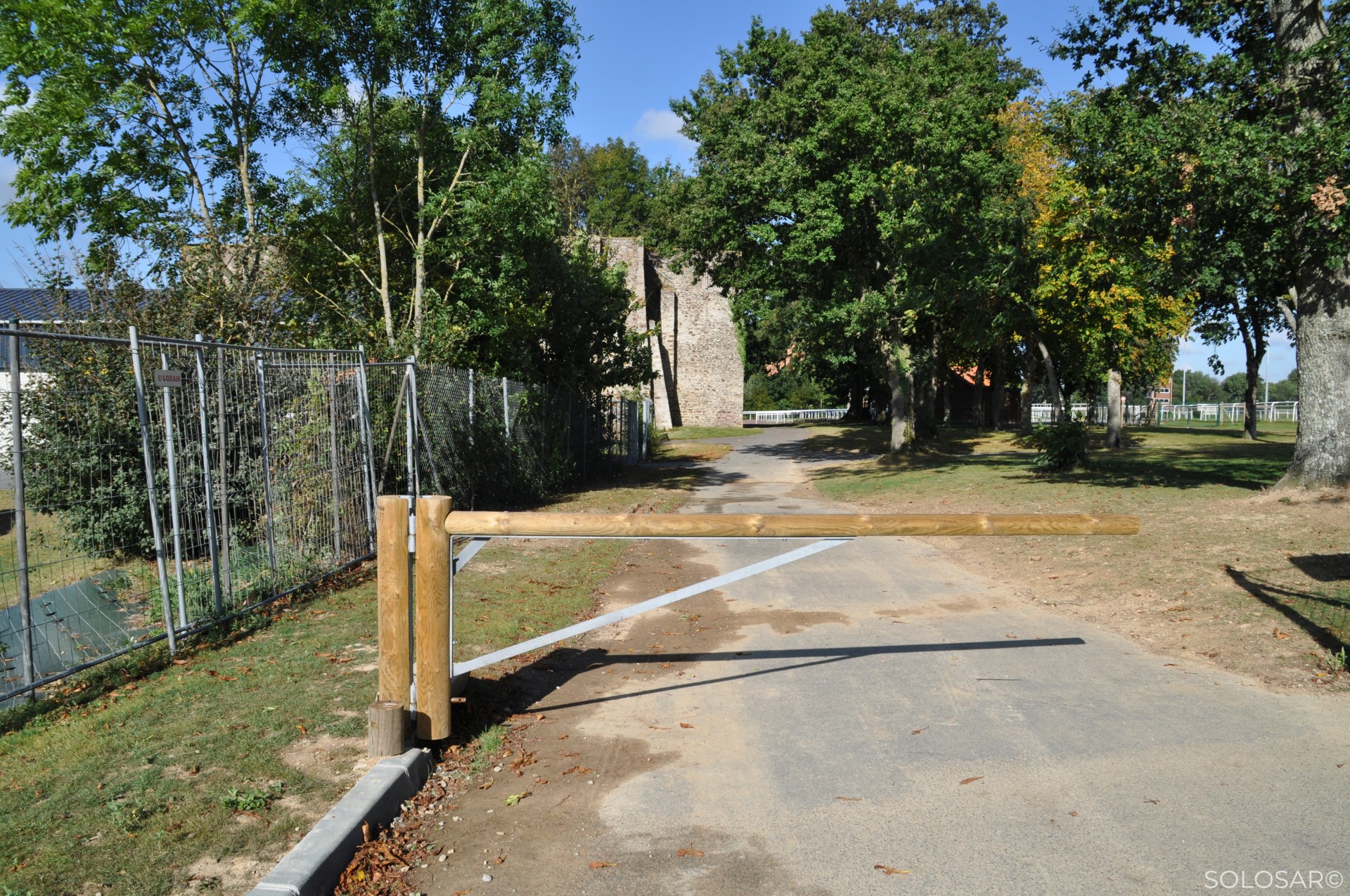

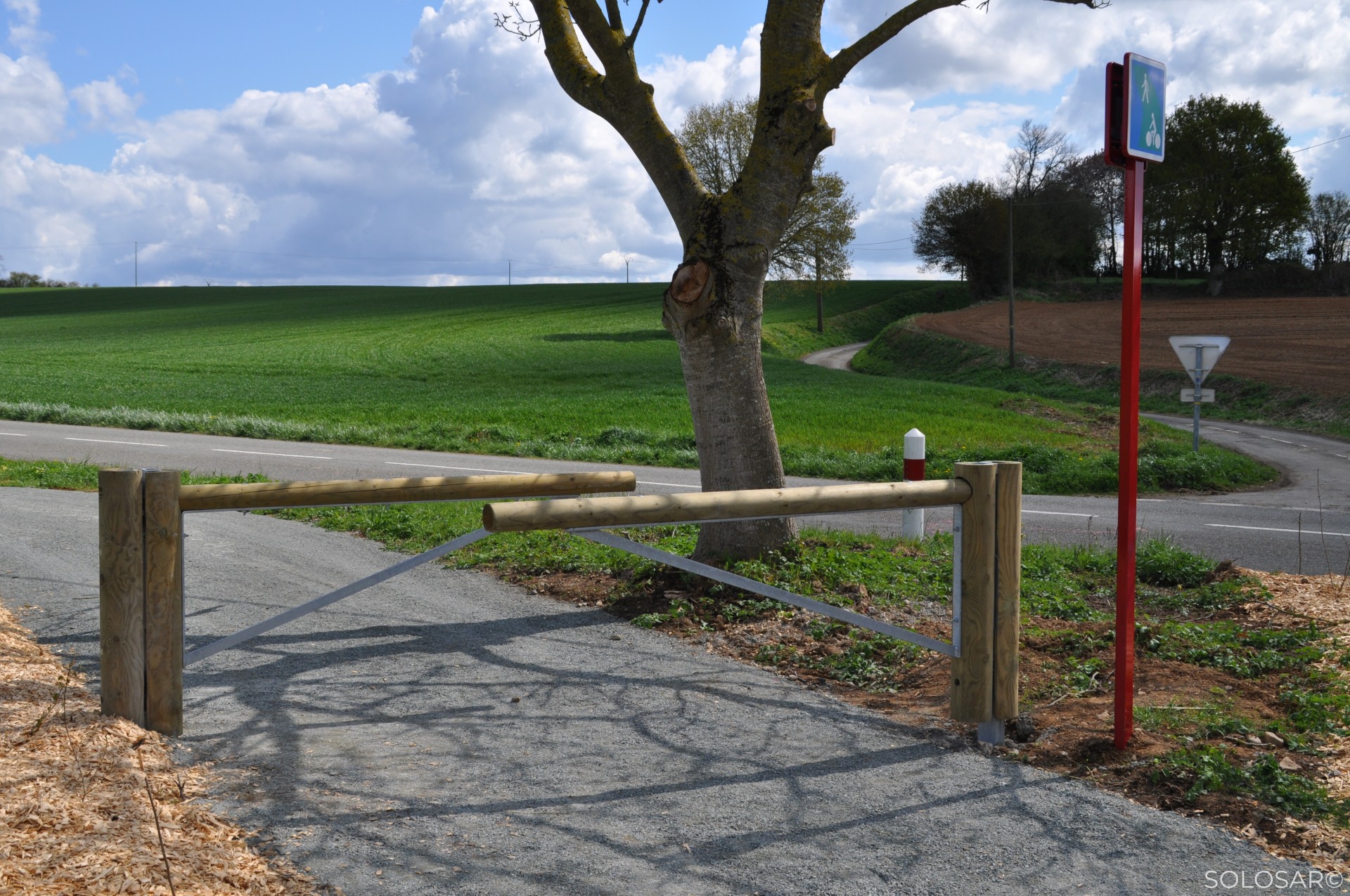

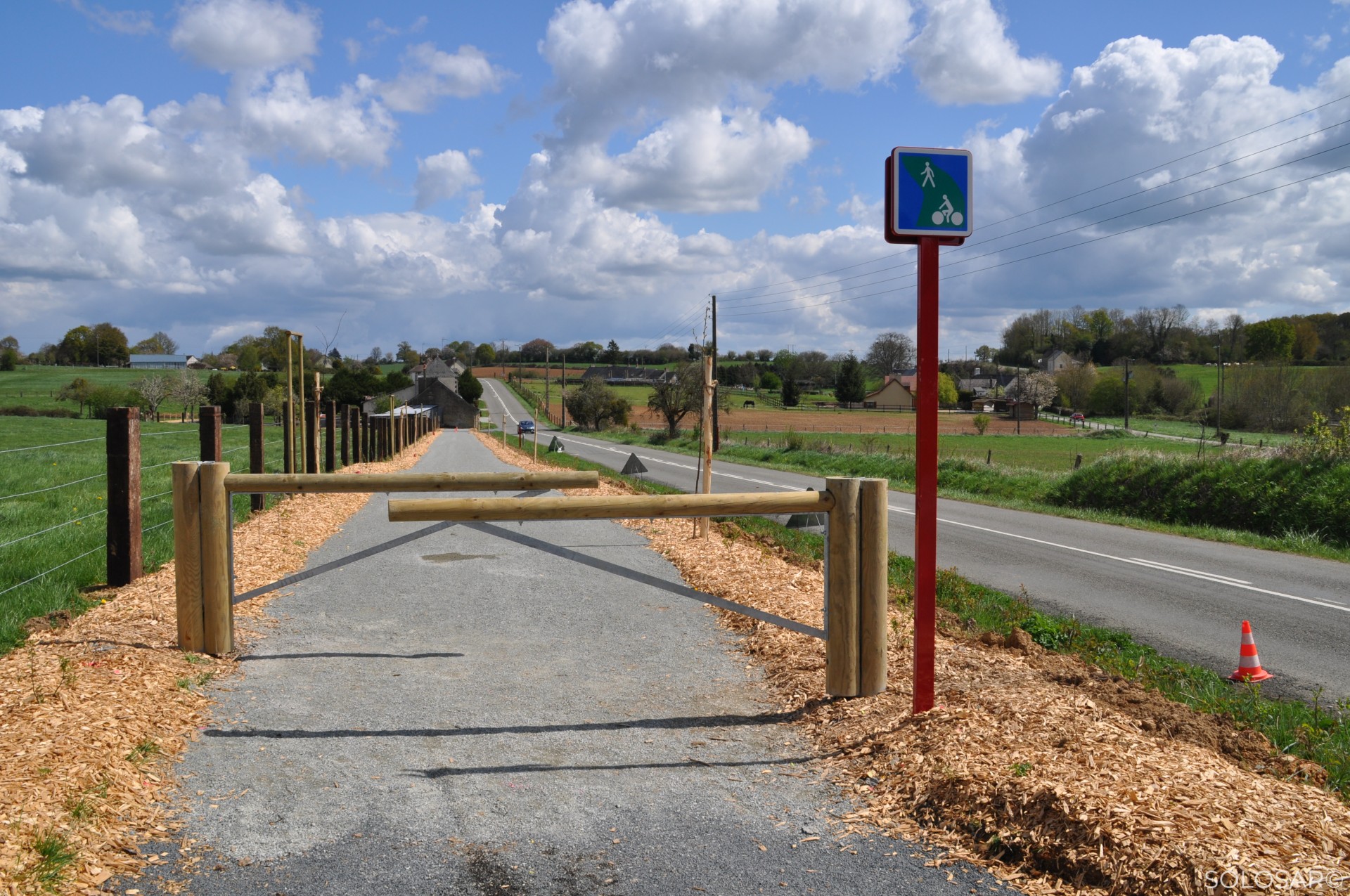

• IMPORTANT: the baffle set is sold in 2 pivoting half-barriers as shown in the picture opposite

OPTIONS : see product sheet in the "Downloads" section

• Solid wood receiver post assembly for holding in open position
• Firemen's padlock + red epoxy-painted braided key for locking your barriers
• Intelligent padlock and key for unique access management

SPECIFICATIONS:

Steel components: S235 JR hot-dip galvanised to ISO 1461

Solid wood components: autoclaved Scots pine class 4 to EN 335, guaranteed for 10 years against rotting.

Support: pre-assembled wood-steel combination (UPN100 with Ø160 trim)

Hinges with grease nipple

Clearance width: 2 m (width) x 1 m (height)

Custom-made: please contact us

Typical application: restricting access to motorised vehicles on green lanes, cycle paths approaching junctions and other pedestrian-only lanes, speed reduction for cyclists, etc.

Custom-made products available on request: click here to contact us please.
