Wood and steel reinforced EDGE swing gate

MOSL

Reference: SN-45-08-10

Description

The EDGE single-leaf reinforced swing gate is an exclusive product with a combined structure made of hot-dip galvanised steel for strength and functionality, and class 4 autoclaved solid wood with wood cladding for aesthetic appeal. A safe, durable access control system that combines the aesthetics of wood with the strength of galvanised steel. Available in lengths of 3 and 4 m, it can be doubled to create a double gate.

This mixed wood and steel model has been specially developed to protect against vandalism, and features a square galvanised steel section clad in wood.



EXCLUSIVE PRODUCT BENEFITS:

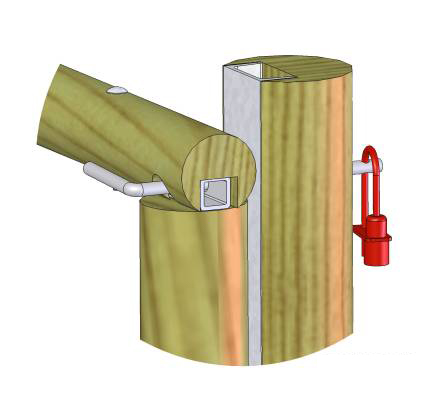

  • Square steel profile 40x40x5 mm integrated along the entire length of the wooden rail for extreme resistance to vandalism.
  • Combination of wood and steel: robust, attractive and durable
  • Reduced vandalism, controlled maintenance budget and constant security
  • Installation: support to be embedded in concrete block
  • Rail and stiffener: total control over plumbness
  • Integrated receiver post
  • Locking (closed position): by steel pin to be inserted in the mixed steel and wood counter-support and fireman's padlock + key (see options)
  • Made in France (Moselle)



OPTIONS: see product sheet in the "Downloads" section

  • Fireman's padlock + key with red epoxy paint for locking your barriers
  • Intelligent padlock and key for unique access management

Technical data

SPECIFICATIONS:

Steel components: S235 JR hot-dip galvanised to ISO 1461

Solid wood components: class 4 autoclaved Scots pine to EN 335, guaranteed for 10 years against rotting.

Support: pre-assembled wood-steel combination (UPN100 with Ø160 trim)

Hinges with grease nipple

Clearance width: 3 and 4 m (width) x 1.00 m (height)

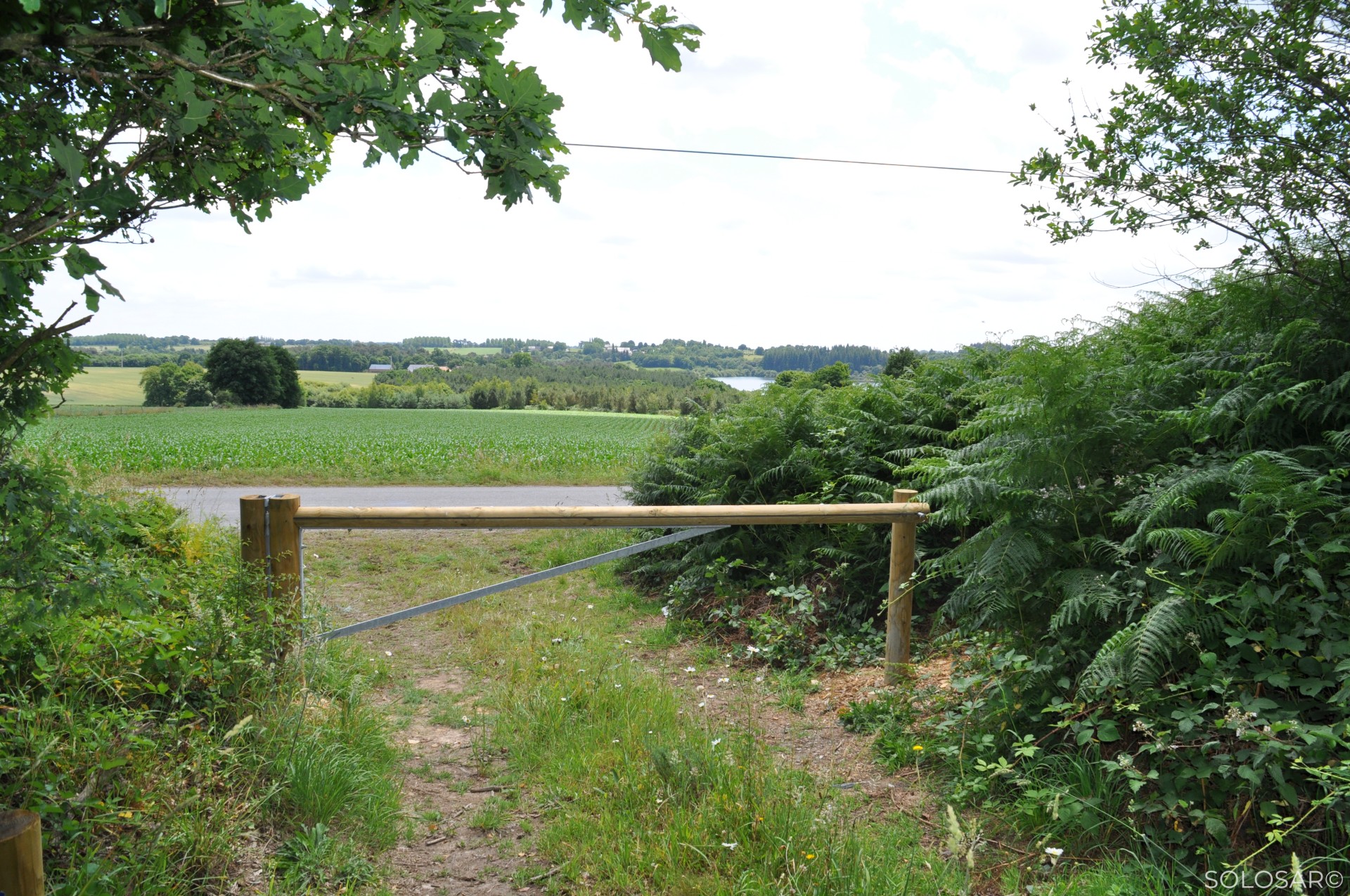

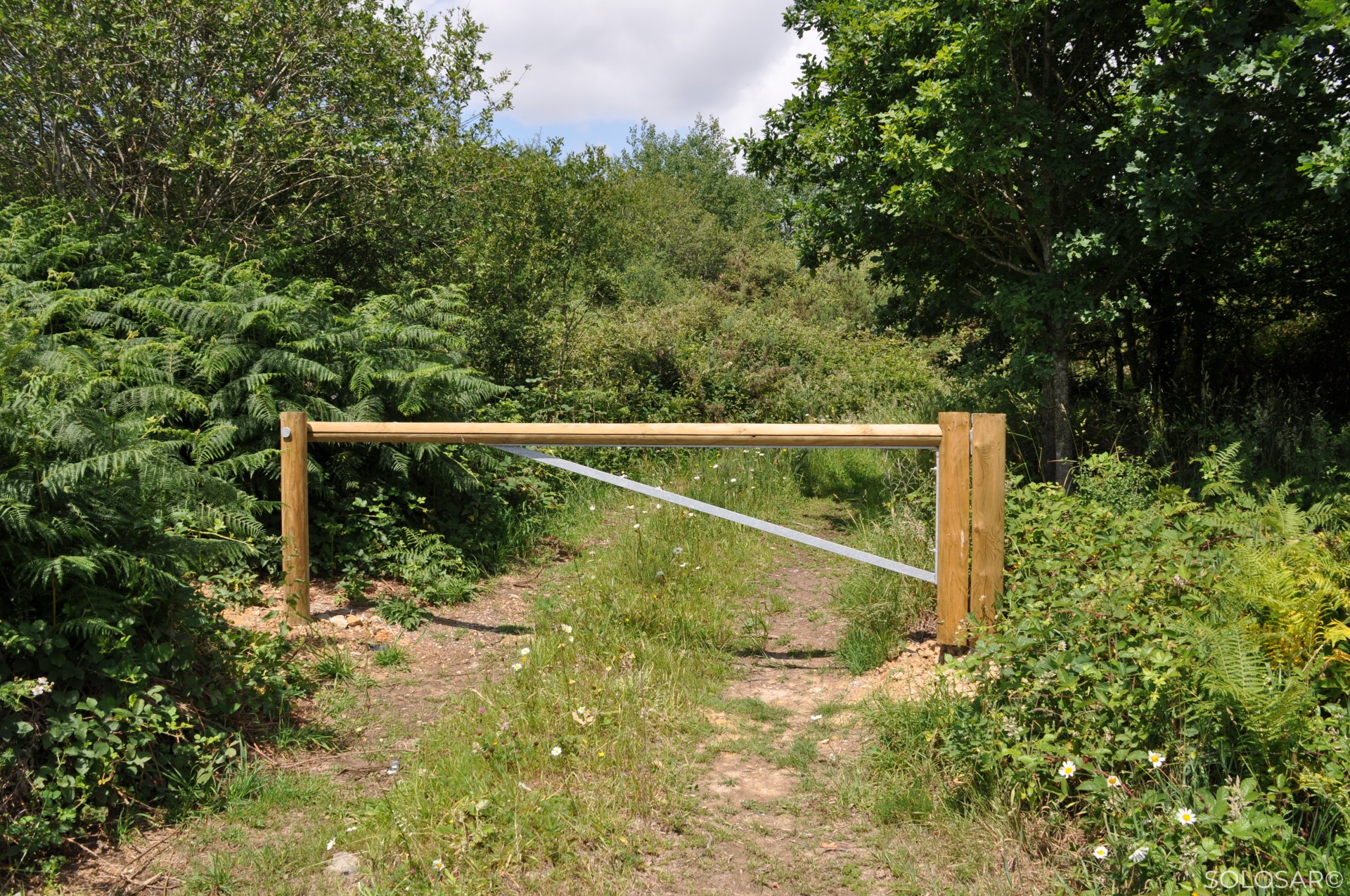

Typical application: restricting access to motorised vehicles on greenways, cycle paths and other pedestrian routes, reducing speed for cyclists, etc.



Custom-made products available on request: click here to contact us please.
