🛡️ Industrial Guardrails – Embedded / Driven Posts
Robust protection anchored directly into the ground

Industrial guardrails with embedded or driven posts are designed to provide long-term safety for your logistics sites, storage areas, and industrial facilities. Fixed directly into the ground (with concrete embedding or driven posts), they offer excellent mechanical resistance and effective protection against impacts from handling equipment, vehicles, and more.

⚙️ Technical Features

• Available versions: single, double or triple beam

• Post spacing: 2.00 m or 4.00 m

• Material: S235JR steel

• Finish: hot-dip galvanised according to EN ISO 1461

• Fixing: concrete embedding or driven into the ground

• Assembly: modular and extendable

• Compatible accessories: SOLOPROTECT® range (powder coating, ULTRAGUARD™, marking, etc.)

✅ Key Benefits

• Enhanced industrial and logistics protection

• Direct ground anchoring for greater stability

• Wide choice of configurations (1, 2 or 3 beams)

• Durable solution with minimal maintenance

• Quick, robust installation suitable for demanding environments

📊 Available Models

🛡️ Choosing the right SOLOSAR industrial guardrail

Step 1 – Assess your protection needs
👉 Light traffic (pedestrians, trolleys) or heavy traffic (trucks, machinery)?

Step 2 – Select the guardrail type

• Single beam: basic protection

• Double beams: reinforced resistance

• Triple beams: maximum safety

Step 3 – Define post spacing

• 2 m: rigid structure, high resistance

• 4 m: economical solution, fewer posts

Step 4 – Choose beam length
📏 2 m or 4 m depending on your configuration and post spacing

Step 5 – Corner treatment
SOLOSAR offers concave or convex 90° angles:

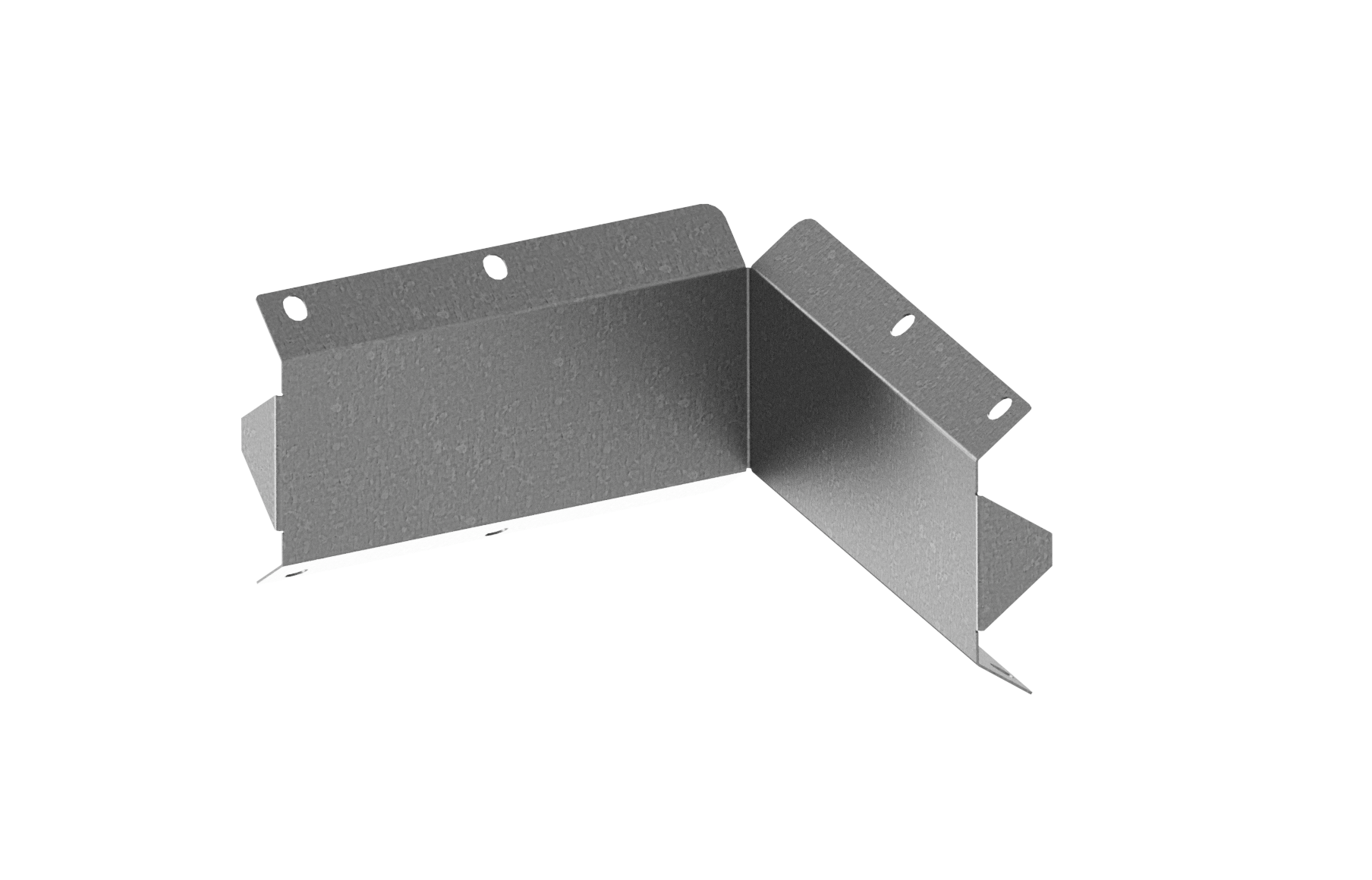

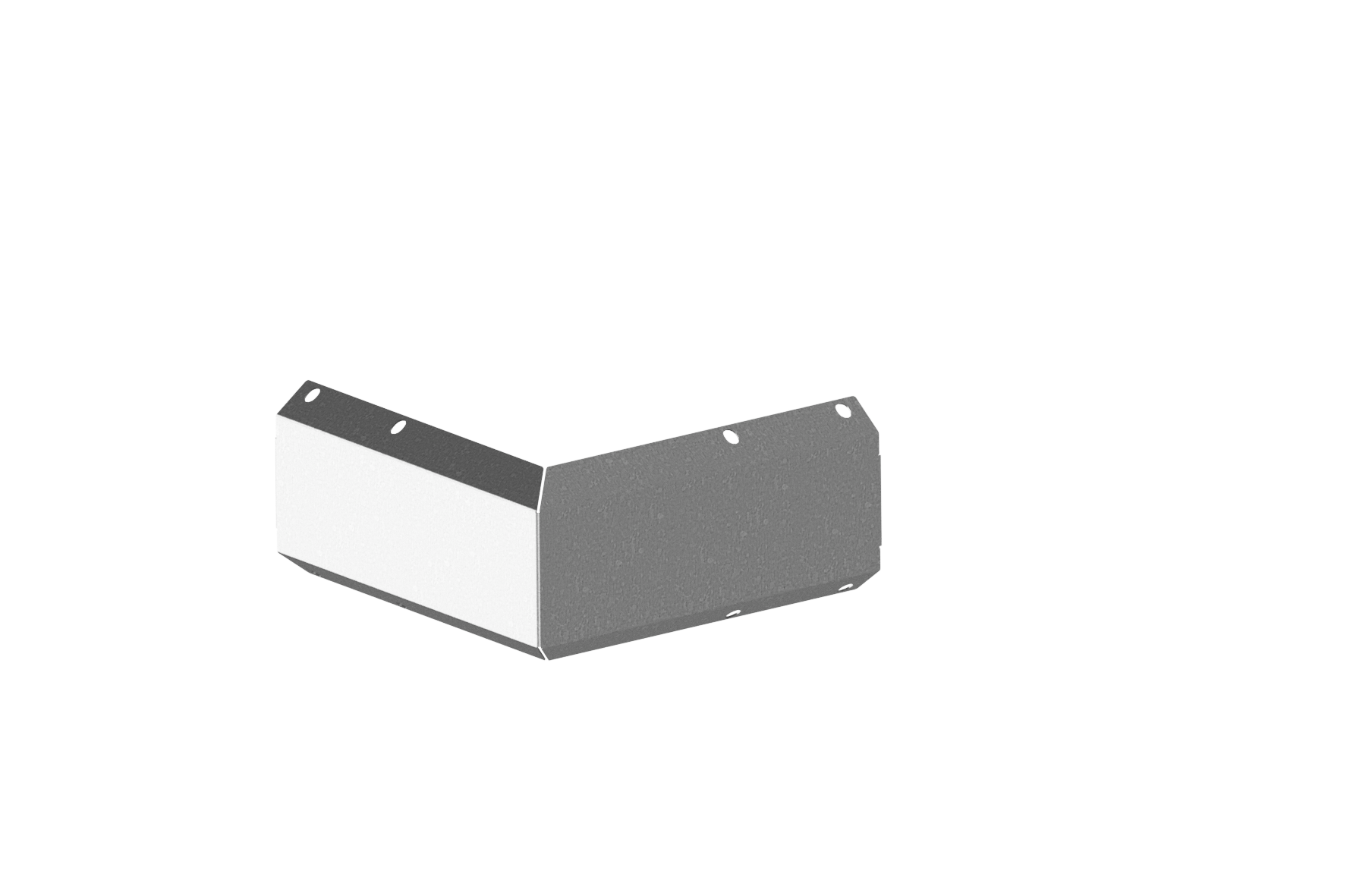

90° SOLOPROTECT CONCAVE corner	90° SOLOPROTECT CONVEX corner

Step 6 – Start and end treatments
Choose from 3 end solutions:

Straight flush (simple, effective and economical)	Standard fish tail AF (classical ending)	Rounded parking end (ultimate protection against sharp edges)

Step 7 – Customise your solution
🎨 Powder coating RAL, ULTRAGUARD™ reflective finish, additional accessories

Step 8 – Contact SOLOSAR
📞 Our experts will advise you and size your project

🛡️ SOLOPROTECT® – Industrial Guardrails on Base Plate

Single, double or triple horizontal beams

All versions are based on a C100 post with base plate and standard fixing, with horizontal beams of 2 m or 4 m. Galvanization is performed according to EN ISO 1461, ensuring excellent corrosion protection.

1. Single-beam guardrail

Post spacing 2 m

• Total weight: ~74 kg for 4 lm

• Weight per lm: ~19 kg/lm

• Components: 1 AF beam, 2 C100 posts on base plate, 2 plates, 2 TH M16x40 bolts, 8 TRCO M16x30 bolts.

Post spacing 4 m

• Total weight: ~61.5 kg for 4 lm

• Weight per lm: ~15.5 kg/lm

• Components: 1 AF beam, 1 C100 post on base plate, 1 plate, 1 TH M16x40 bolt, 8 TRCO M16x30 bolts.

2. Double-beam guardrail

Post spacing 2 m

• Total weight: ~123 kg for 4 lm

• Weight per lm: ~31 kg/lm

• Components: 2 AF beams, 2 C100 posts on base plate, 4 plates, 4 TH M16x40 bolts, 16 TRCO M16x30 bolts.

Post spacing 4 m

• Total weight: ~111 kg for 4 lm

• Weight per lm: ~28 kg/lm

• Components: 2 AF beams, 1 C100 post on base plate, 2 plates, 2 TH M16x40 bolts, 16 TRCO M16x30 bolts.

3. Triple-beam guardrail

Post spacing 2 m

• Total weight: ~176 kg for 4 lm

• Weight per lm: ~44 kg/lm

• Components: 3 AF beams, 2 C100 posts on base plate H=1000, 6 plates, 6 TH M16x40 bolts, 24 TRCO M16x30 bolts.

Post spacing 4 m

• Total weight: ~161.5 kg for 4 lm

• Weight per lm: ~40.5 kg/lm

• Components: 3 AF beams, 1 C100 post on base plate H=1000, 3 plates, 3 TH M16x40 bolts, 24 TRCO M16x30 bolts.
