Single-wing pivoting height restriction gantry - steel clad in solid wood

MOSL

Reference: SN-45 03 10

Description

The SOLONATURE® single-wing pivoting height restriction gantry is now a standard on the market. Made entirely from galvanised steel and clad in class 4 autoclaved solid wood, it is durable and robust, and is THE solution when it comes to limiting access to a site in terms of height.

The pivot, which opens easily thanks to an exclusive cam and hinges, allows vehicles of greater height to pass through on occasion, and is anchored to the ground.

The SOLONATURE® single-leaf swing gantry is designed in accordance with Eurocodes, and our design office is at your disposal for any specific dimensions you may require. A wide range of options are available, including a wide-grip locking pin, a signpost, a hanger for retro-reflective film, etc.).



EXCLUSIVE PRODUCT ADVANTAGES :

  • Combination of wood and steel: robust, attractive and durable
  • Reduced vandalism, controlled maintenance budget and constant safety
  • Horizontal rail adjustable in length from 2 m to 3 m passage width
  • Installation: post on base plate to be embedded in concrete (anchors not supplied)
  • Rail and stiffener: total control of plumbness
  • Locking (closed position): by steel pin to be inserted in the pivoting post and fireman's padlock + key
  • Made in France (Moselle)
  • Available in double leaf version

Technical data

SPECIFICATIONS:

Steel components: S235 JR hot-dip galvanised to ISO 1461

Solid wood components: class 4 autoclaved Scots pine in accordance with EN 335, guaranteed for 10 years against rotting.

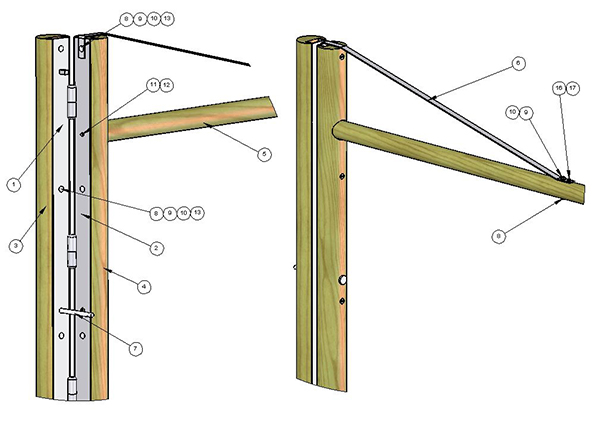

Post: pre-assembled mixed wood-steel - steel upright complete with Ø160 cladding - Hinges with grease nipple

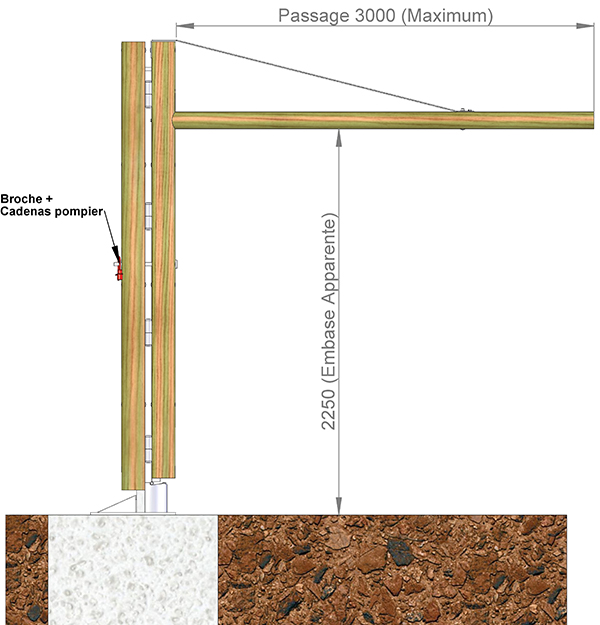

Clearance width: 2 to 3 m (width) x 2.25 m (height)

Custom-made: please contact us

Typical application: restricting access to motorised vehicles in car parks and rest areas or site access.

Specify pusher orientation when ordering: right or left.



Custom-made products available on request: click here to contact us please.

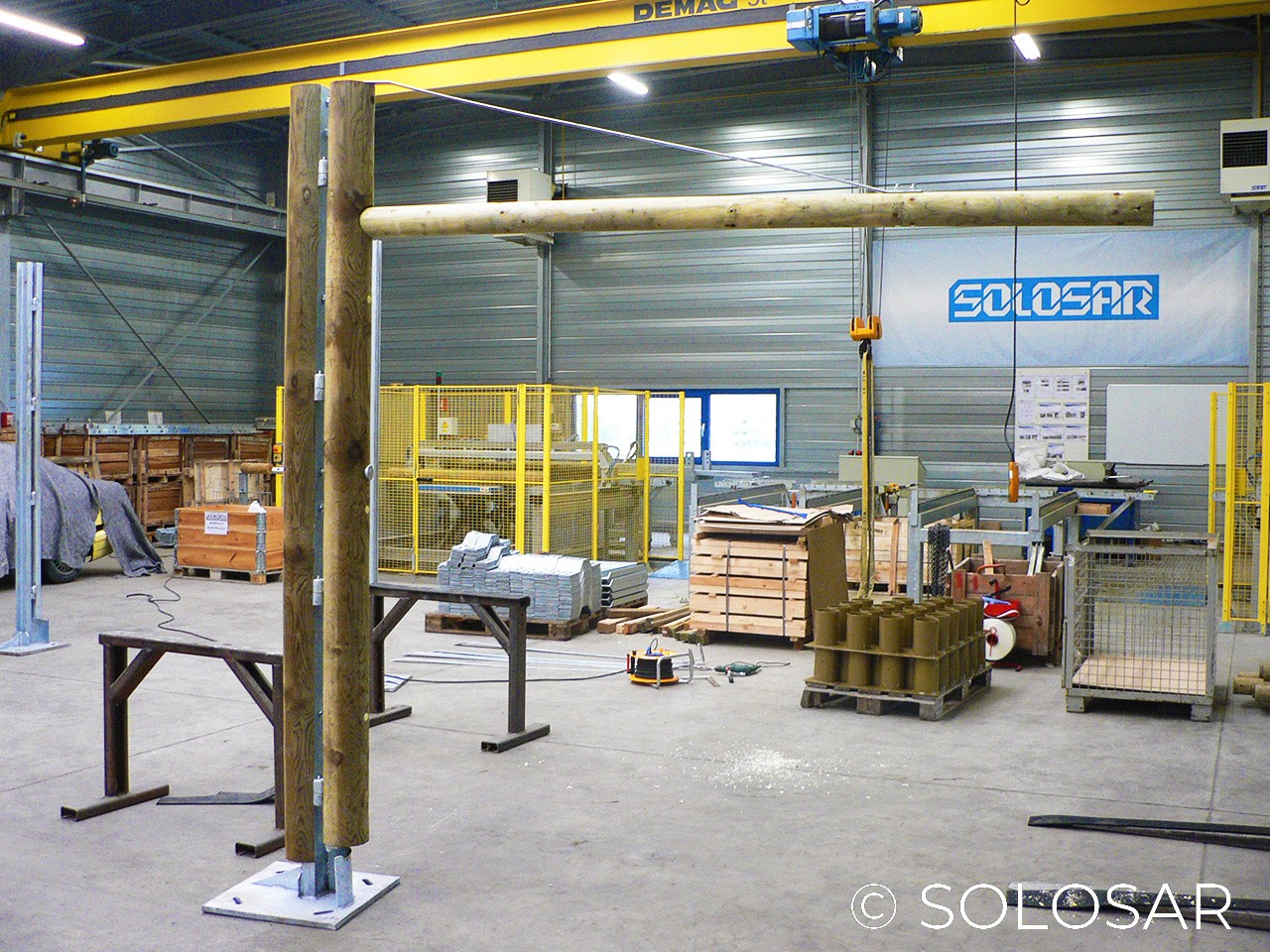

Product view
