CADIZ timber clad barrier

The CADIZ high fence has a multitude of applications and can be installed in a modular, flexible way. This model has a C100 post that can be sunk or embedded in the ground, giving it unrivalled straightness and durability. The autoclaved wooden elements are bolted directly to the metal post, and the rails remain fixed and rigid for the entire life of the product. The handrail is securely connected to the post by means of a galvanised steel splice bar, which is bolted to the post.

All our wooden components are made from class 4 autoclaved Scots pine and come with a 10-year guarantee.

EXCLUSIVE PRODUCT BENEFITS :

• Combination of wood and steel: robust, attractive and durable
• Suitable for all types of site, with hinged or plate-mounted (optional) versions and variable centre-to-centre distances
• Reduced vandalism, controlled maintenance budget and constant security
• Installation: post to be embedded in concrete block
• The distance between the posts can be adjusted by re-drilling the top rail
• Made in France

SPECIFICATIONS:

Steel components: S235JR hot-dip galvanised to ISO 1461

Solid wood rounds: autoclaved Scots pine class 4 to EN 335, guaranteed 10 years against rotting

Top rail: ø 120mm

Intermediate rail: ½ log ø 120mm

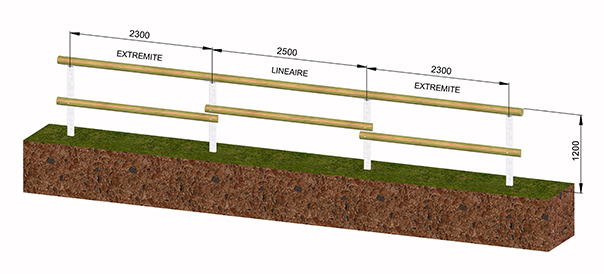

Dimensions above ground: 1200 mm

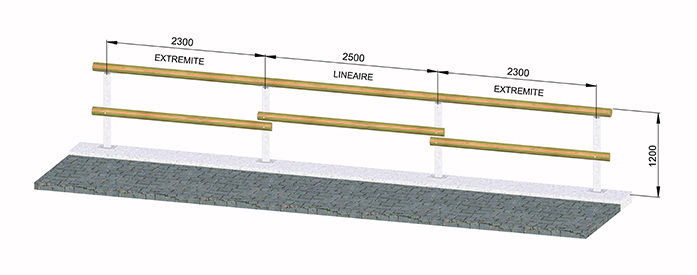

Posts: C100 galvanised steel to be beaten or C100 on base plate (optional)

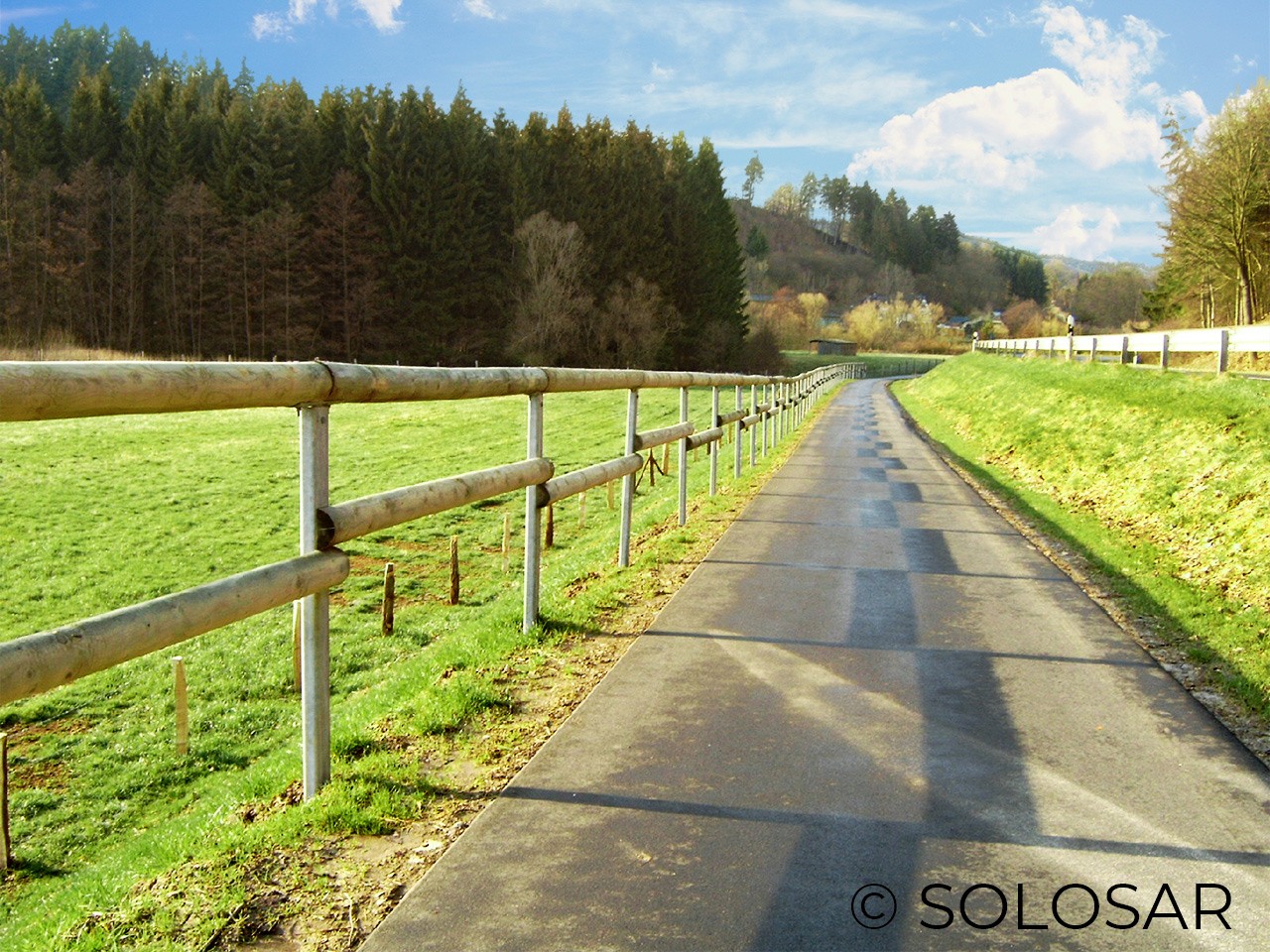

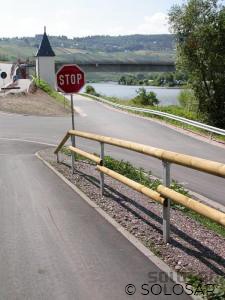

Typical application: restricting access to motorised vehicles on greenways, cycle paths and other pedestrian routes, insulating obstacles,

Custom-made products available on request: click here to contact us please.
