GCU -NF
Reference: GCU
French standard road restraint system
- Description
- Technical data
- Product view
Description
The French GCU-NF guardrail is a product of the French State. This product is a simple roadside barrier suitable for particular points such as connections or obstacle isolations. This product is the most rigid in the range.
The single lane system is made up of a row of type A beams, linked to mechanically welded spacers and mounted on double C125 + C100 type posts spaced every 2 lm.
Minimum installation length according to NF P98-417: 100 m recommended for level N2.
Distance (D1) between the rear of the GCU and the obstacle: 0.90 m ≥ D1 ≥ 0.60 m
Rigidification principle: GS4 /GS2 / GRC / GCU
Components of the system manufactured according to the French NF P98-415 (02/2018) and NF P98-416 (07/2018) standards.
Technical data
SPECIFICATIONS:
Post: C100-NF and C125-NF in S235 JR steel
Length: 1,50m or 2m
Beam profile: AF-NF profile in S235 JR steel (Also available in BF-NF profile in 235 JR steel)
Weight per lm for AF-NF profile with 1,5m post: 28 kg
Post spacing: 2 m

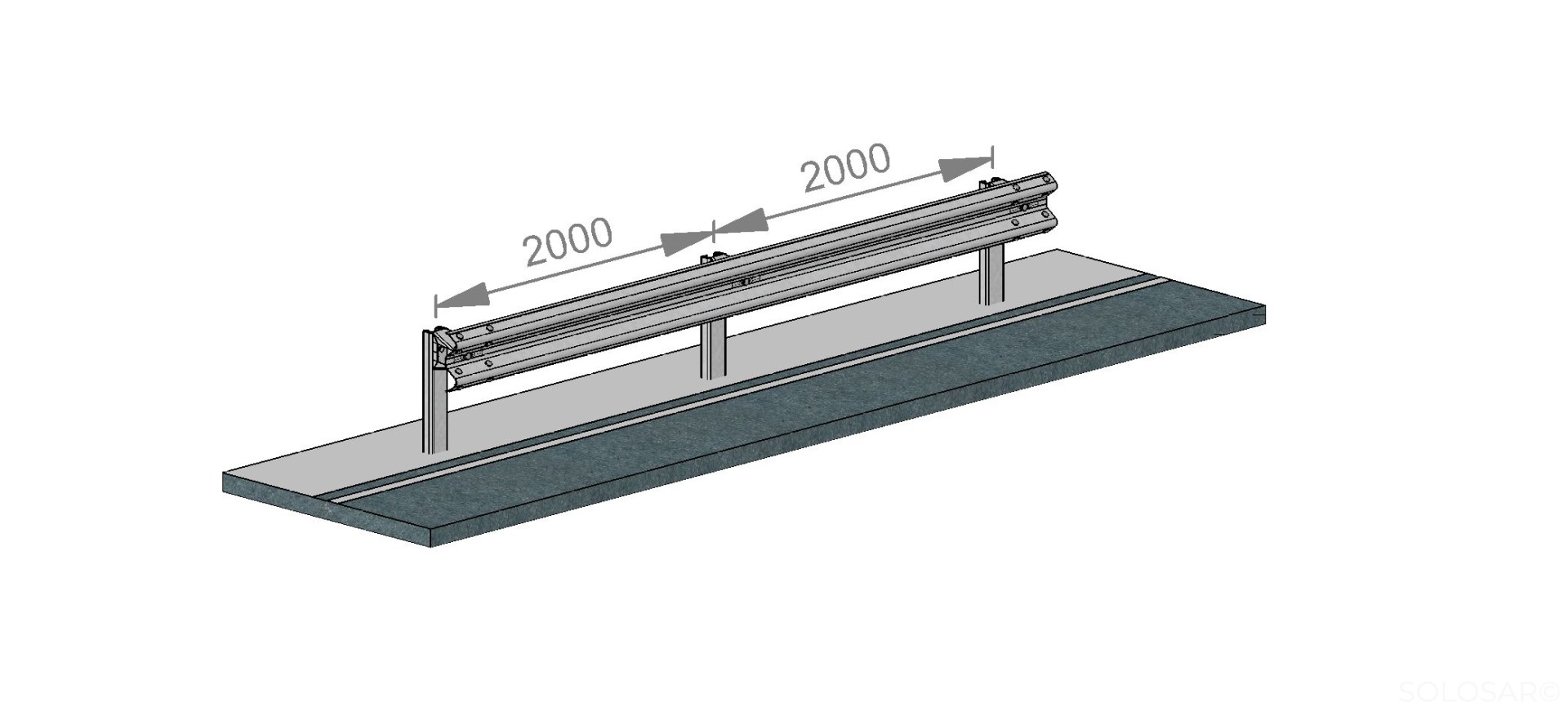

Product view
