MANTA® BARRIER modular lane divider for your worksite
🛡️ SOLOPROTECT® – MANTA® BARRIER
The modular lane separator for your sensitive areas
The MANTA BARRIER is a modular lane separation system designed to provide effective temporary protection on worksites, in urban environments, industrial areas or during events. SOLOSAR is the exclusive distributor of the range in France.
🔩 General Specifications
-
Material: hot-dip galvanized steel according to EN ISO 1461
-
Finish: high-visibility red/white powder coating
-
Standard dimensions:
-
Length: 1500 mm
-
Height: 420 mm
-
Depth: 500 mm
-
Weight: 48 kg
-
-
Installation: interlocking via steel pins, no ground drilling required
-
Stackable & logistics-friendly: up to 216 linear meters per truck
📦 Available Products
| Ref. | Description | Type | Dimensions (mm) | Weight |
|---|---|---|---|---|
| MTS200000 / 010 | Standard Manta (red/white) | Straight module | 1500 x 420 x 500 | 48 kg |
| MTS200100 / 105 | Manta 90° angle (type 1 female / type 2 male) | Corner module | ~1570 x 420 x 500 | 43 kg |
| MTS200180 / 185 | Manta end module (male) | End module | 660 x 420 x 490 | 19 kg |
| MTS200190 / 195 | Manta end module (female) | End module | 580 x 420 x 490 | 17 kg |
🔐 Fencing & Anti-Intrusion Options

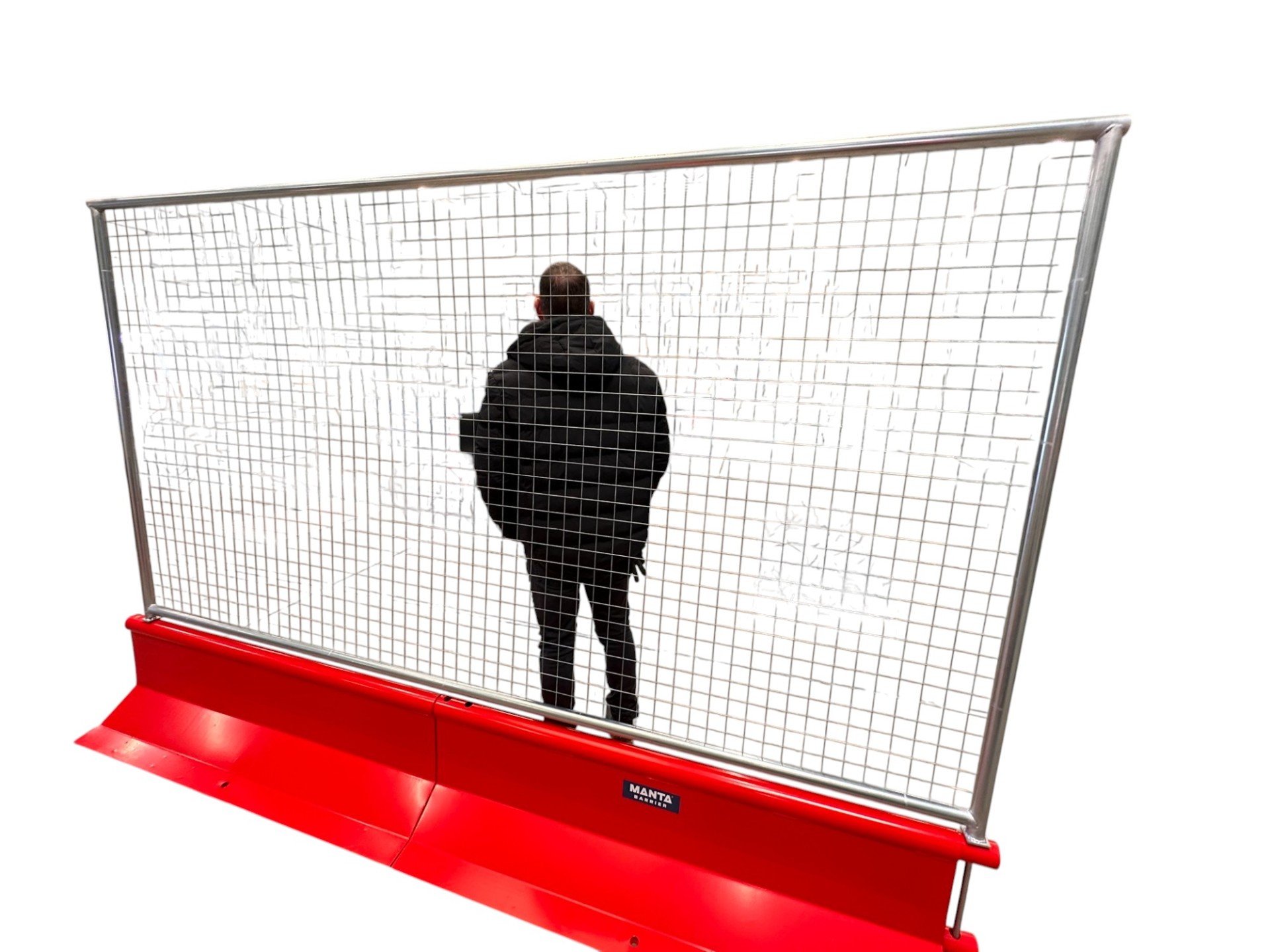

MANTA BARRIER can be equipped with metal fence panels to prevent unauthorized pedestrian access:
| Ref. | Description | Total Height | Type | Weight |
|---|---|---|---|---|
| MTS200450 | Lightweight pedestrian fence | 1 m | Anti-climb galvanized mesh | 6 kg |
| MTS200400 | Reinforced mesh fence | 2 m | Reinforced galvanized mesh | 15 kg |
| TFS100250 | Pedestrian gate | 1 m | With hinge, post and slam bar | – |
| TFS100400 | Vehicle gate | 2 m | Anti-climb with locking mechanism | – |
✅ Certified Performance
Crash Test (EN 1317-2):
-
Working width: W7
-
ASI = 0.2 (rating A); THIV = 13
-
Dynamic deflection: 1.6 m ; Working width: 2.2 m
Wind Tunnel Testing:
-
Resistance up to 120 km/h without accessories
-
Resistance up to 97 km/h with 1.5 m pedestrian fence
-
Resistance up to 72 km/h with 3 m fence
🎨 Available Options
-
High-visibility fence with retroreflective red/white film (class 2)
-
Fast-closing pedestrian gate
-
Lockable vehicle gate
-
Accessories: connection pins, adapter posts, hinges
🏗️ Typical Applications
-

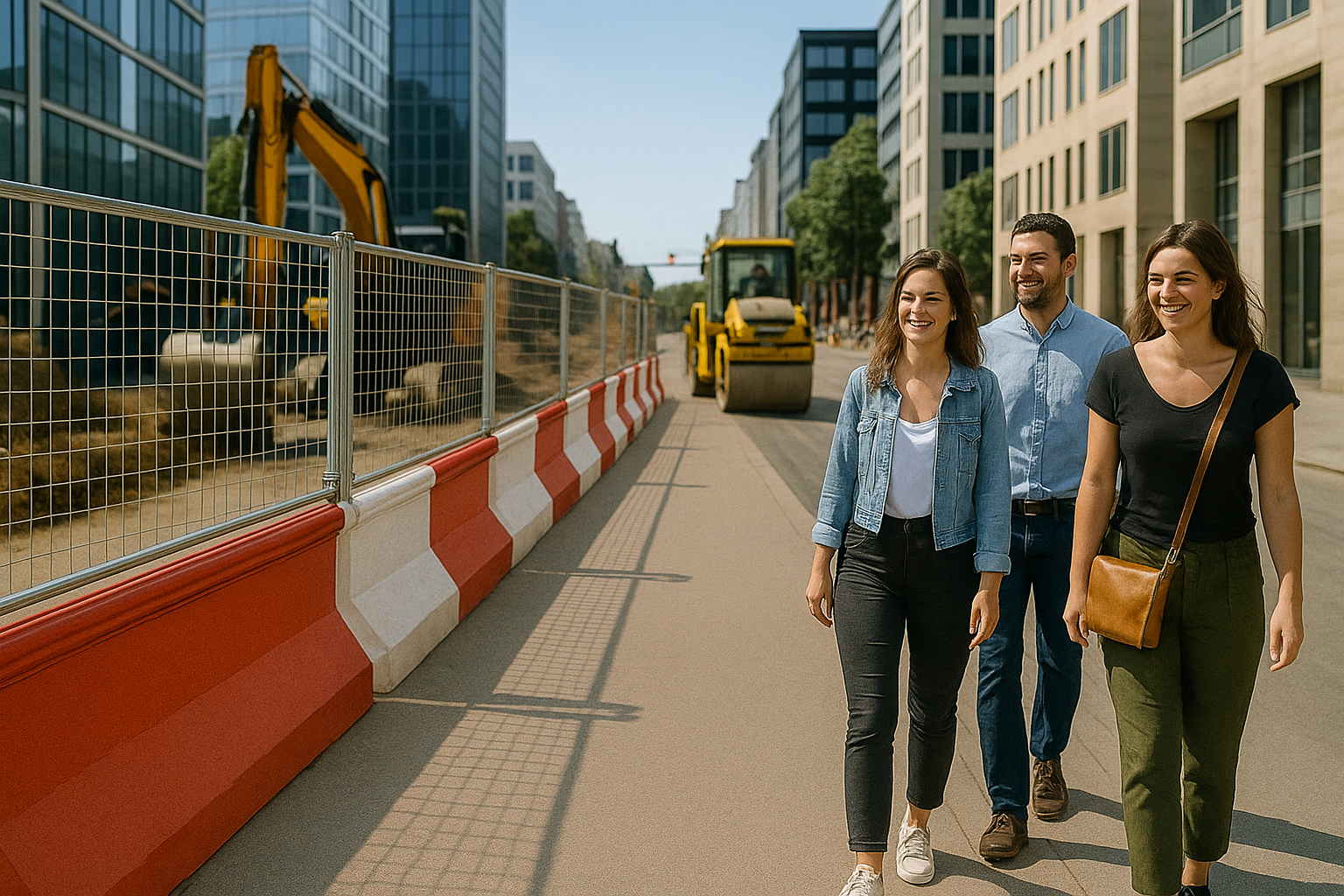

High-traffic urban areas
-
Roadwork and excavation sites
-
Pedestrian walkway protection
-
Event management, festivals, marathons
-
Temporary signage and access control in car parks
