GSO acc. NF

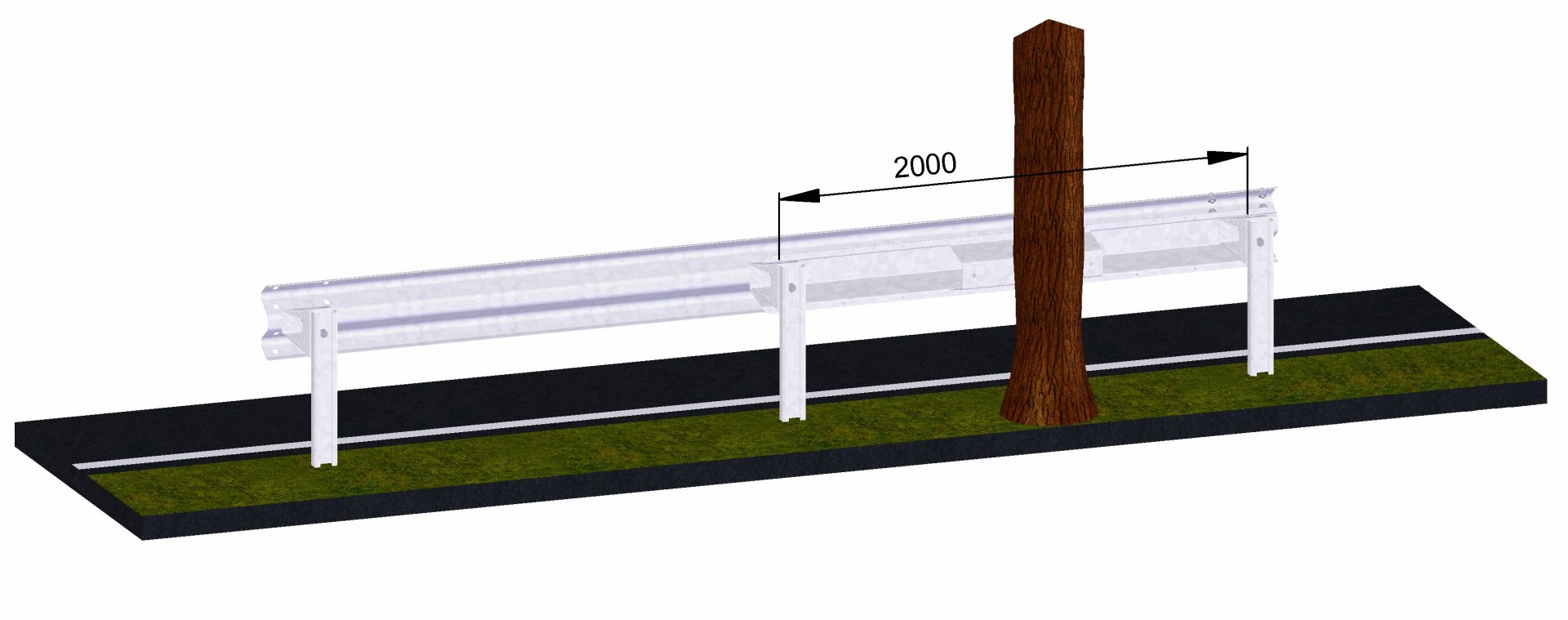

The NF GSO guardrail is used in front of protruding obstacles in current section (tree, lighting columns, pylon, ...).
GSO is available in 2m or 4m lengths.
 |
 |
Detail of the system:
1 : GSO Reinforcement - 2,20 m
2 : GSO backing - 600 mm
3 : GSO special spacer
4 : Bolt TH M 10x30
5 : Bolt TRCO M 16x30
6 : Bolt TH M 16x40
7 : GSO flat pieces - 240x60x3 mm
8 : Standard plate 80x40x5 mm
