MANTA® BARRIER

🛡️ MANTA® BARRIER – High-Performance Temporary Safety Barrier

The MANTA® BARRIER is a robust, modular, temporary road safety barrier designed to effectively protect construction zones, public events, and high-traffic areas. Made of hot-dip galvanised steel, it offers exceptional durability and weather resistance.

🔩 Technical Specifications

Material: Hot-dip galvanised steel with red/white powder-coated finish for enhanced visibility.

Dimensions:

• Height: 500 mm

• Length: 1500 mm

• Depth: 420 mm

• Weight: 48 kg

Installation: Fast assembly without specialised tools using connector pins.

Stackable: Space-efficient design for transport and storage.

⚙️ Available Modules

Straight modules:

• MTS200000 (Red)

• MTS200010 (White)

Angle modules:

• MTS200100 (Male angle, Red)

• MTS200125 (Female angle, White)

End modules:

• MTS200180 (Male end, Red)

• MTS200190 (Female end, White)

🚧 Fence Options and Accessories

Fences:

• 3m x 2m mesh fence

• 1.5m pedestrian fence

• 1.5m high-visibility pedestrian fence

• 2m hoarding panels (Red / White)

• 2.4m hoarding panels (Red / White)

Accessories:

• Connector pin

• Basic pin

• Adapter post for gates

• Short adapter post

🧪 Tested Performance

Crash test:

• Compliant with BS EN 1317:2010, Level T2

• Working width: W7

• ASI index: 0.2 (Class A)

• THIV: 13

• Tested without reinforcement bar, simplifying installation while maintaining optimal resistance.

Wind tunnel test:

• Certifications: Two A-class passes and one B-class pass.

• Tested configurations:

  • Manta barriers alone

  • Manta barriers with 576 mm lightweight pedestrian fence

  • Manta barriers with 1538 mm anti-climb mesh fence

• Wind resistance up to 120 km/h depending on configuration.

✅ Key Benefits

• Quick installation: Easy setup and removal without specialised tools.

• Modularity: Adaptable to various layouts thanks to angle and end modules.

• Enhanced safety: Excellent crash-test and wind tunnel performance.

• Durability: Weather- and corrosion-resistant materials.

• Optimised transport: Stackable design for efficient transport and storage.

📩 Contact SOLOSAR for your temporary safety barrier needs.
Exclusive distributor of the MANTA® BARRIER range in France.

🚧 Fence Options and Accessories in Detail:

Fences:

• MTS200400: 3m x 2m mesh fence

• MTS200450: 1.5m pedestrian fence

• MTS200500: 1.5m high-visibility pedestrian fence (compliant with Chapter 8)

Hoarding panels:

• MTS200030 / MTS200040: 2m hoarding panels (Red / White)

• MTS200060 / MTS200070: 2.4m hoarding panels (Red / White)

Accessories:

• MTS200300: Connector pin

• MTS200310: Basic pin

• MTS200250: Adapter post for gates

• MTS200255: Short adapter post

EXAMPLES OF ACCESS CONTROL CONFIGURATIONS:

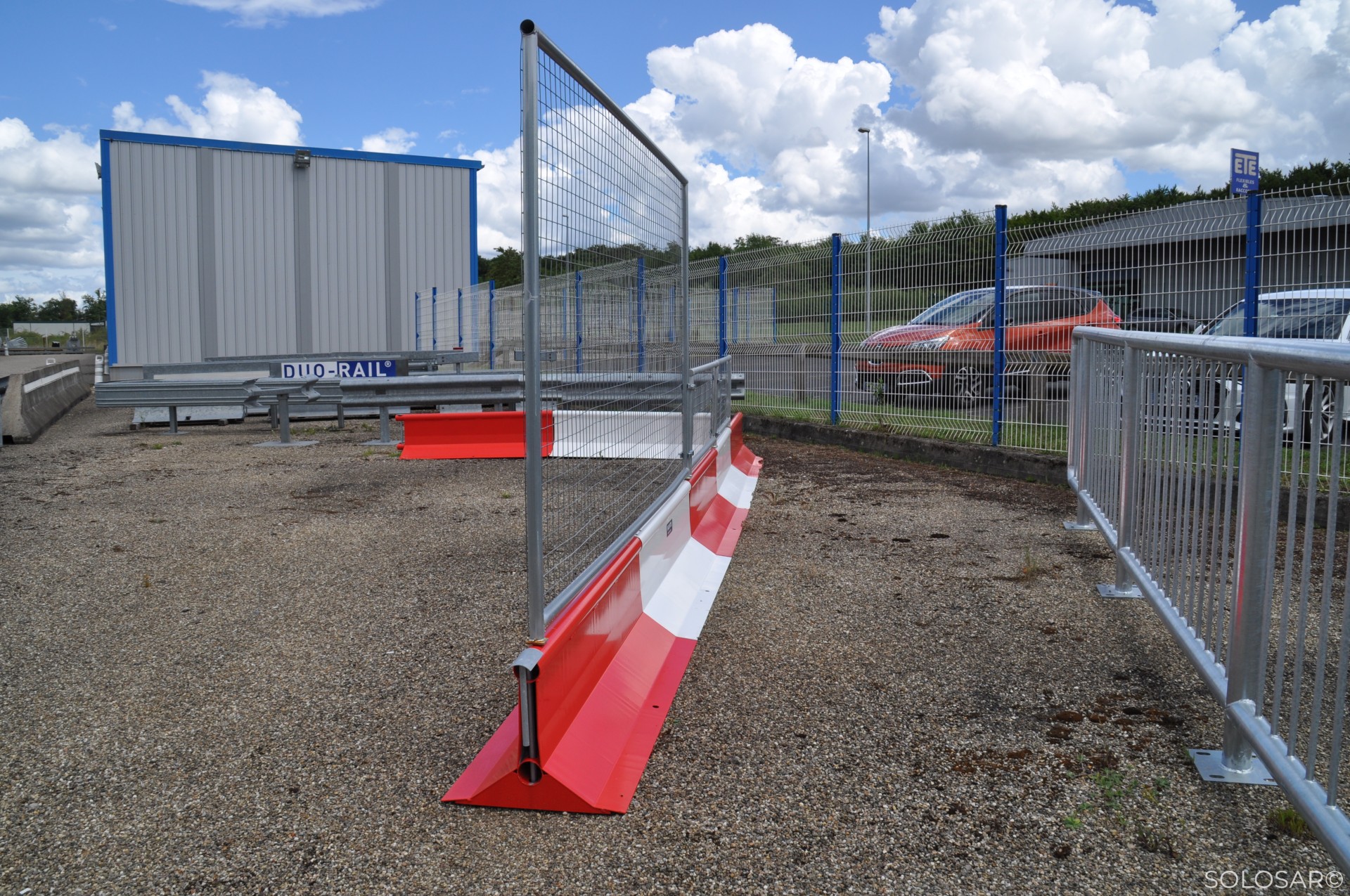

MANTA BARRIER - mesh gate version

MANTA BARRIER - gate version with mesh panel
