PRIMUS P2
Reference: PRIMUS P2
High performance end terminal
- Description
- Technical data
- Product view
Description
The PRIMUS P2 end absorbing terminal secures the ends of guardrails, particularly in the event of a frontal impact on roads with a 90 km/h speed limit.
PRIMUS P2 replaces the end ramping terminals which present a risk of stepping on vehicles.
Tested according to PrEN1317-4 (2002). Redirection zone class: Z1 - ASI: A
Technical data
SPECIFICATIONS:
4 x C125 posts and 1 Sigma 100 post in S235 JR steel;
Length: 1,90 m
Weight / lm: 365 kg
Height: 0,65m
Width: 0,70m
Length: 8,40m
First module composed of a deformation element
Second module composed of two elements of connection: profile AD and BD.

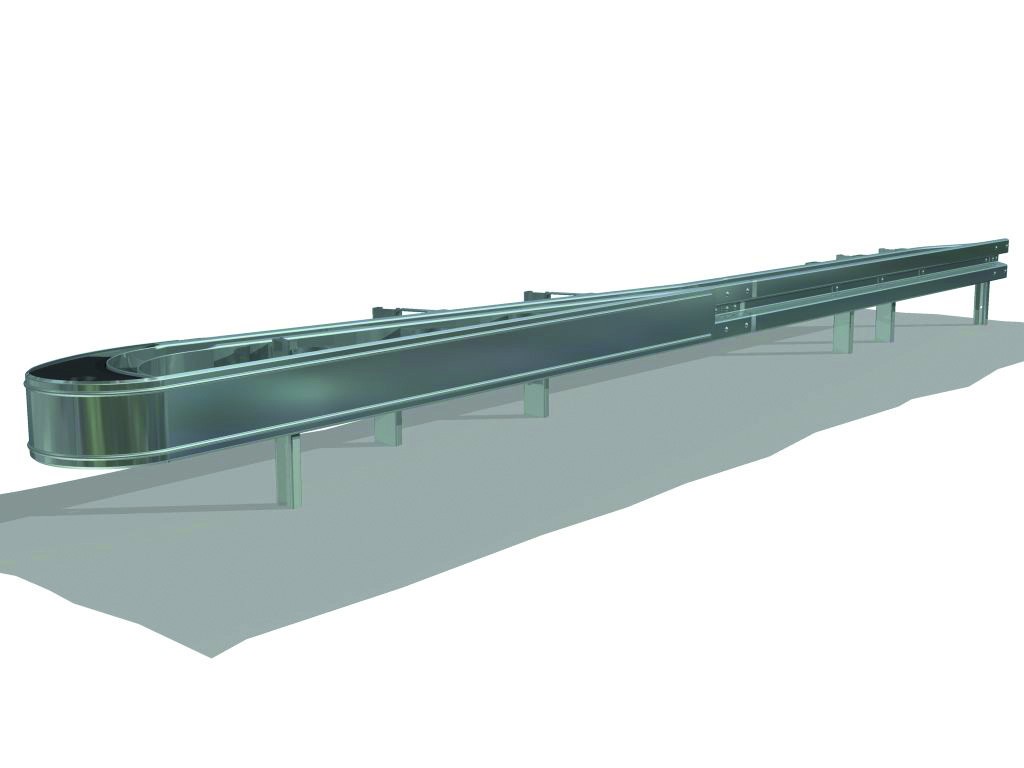

Product view
Applications
- Roadside steel barriers
- Steel backed timber crash barriers acc. EN 1317-2
- Median steel barriers
- Bridge steel railing
- Crash cushions acc. EN 1317-3
- High performance end terminals acc. XP ENV 1317-4
- Motocyclist Protection Systems
- Pedestrian parapets
- Galvanized Wire Fences
- ASTRA systems and components
- ULTRAGUARDโข: a global innovation for road safety
