Reflective acoustic panels - UNIGLAS™

🛡️ UNIGLAS™ – Transparent acoustic panel made of acrylic glass (PMMA)

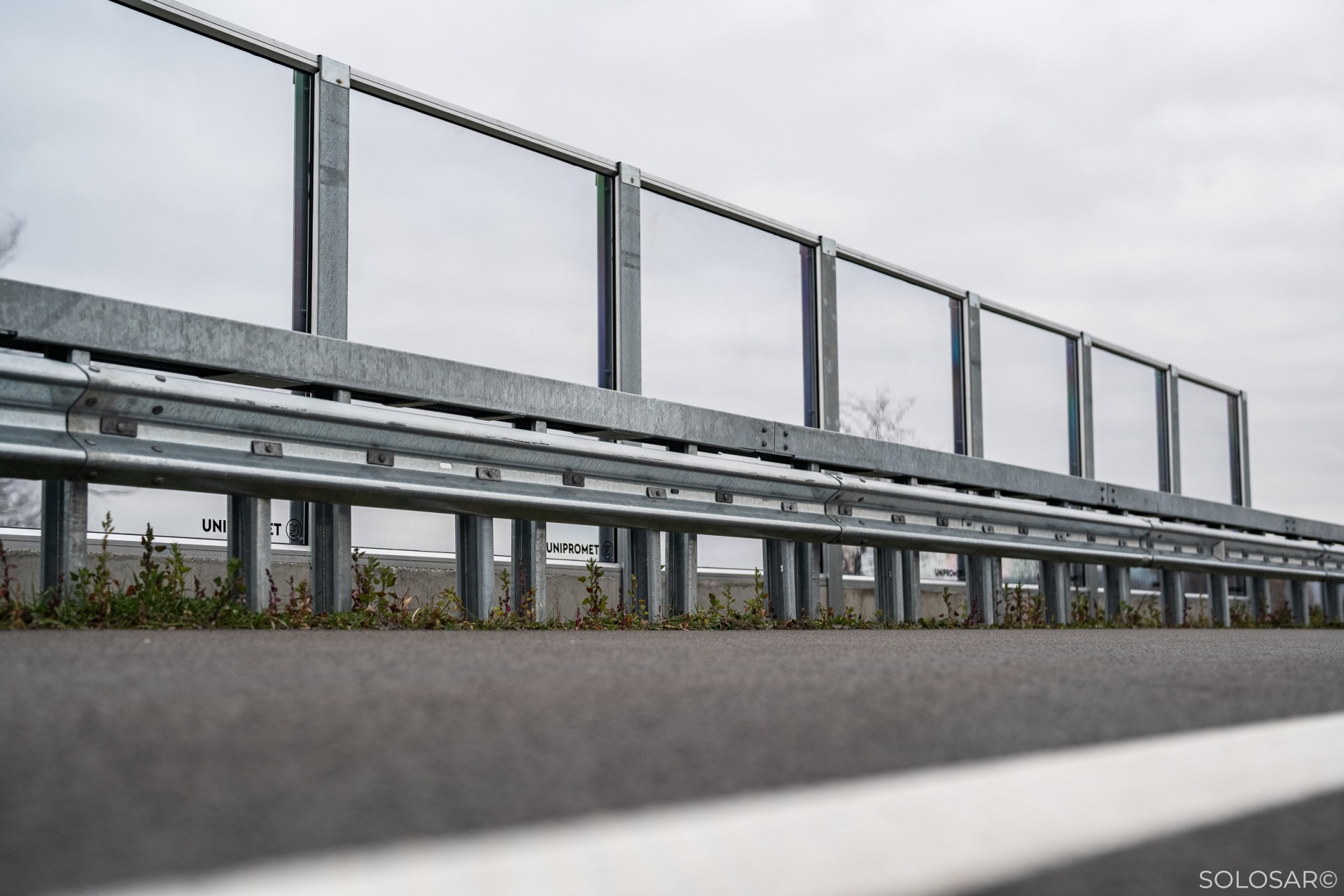

UNIGLAS™ is a high-performance transparent acoustic panel developed by UNIPROMET and distributed by SOLOSAR, designed for projects requiring effective noise insulation while preserving natural light and visibility. It is ideal for infrastructure where landscape integration, visual safety, or aesthetics are critical: urban areas, bridges, level crossings, or sensitive structures.

Made from 15 mm thick acrylic glass, the reflective UNIGLAS™ panel offers excellent resistance to UV rays, weather conditions, and freeze–thaw cycles. It can be safely installed on standard steel structures or frames, and is fully compatible with MAGNUM metal panels for hybrid configurations.

⚙️ Technical Specifications

• Material: transparent acrylic glass (PMMA), outdoor grade

• Standard thickness: 15 mm

• Standard dimensions: L = 4,000 mm ; H = 500 or 1,000 mm (other sizes available upon request)

• Finish: smooth surface, high transparency, UV resistant

• Installation: horizontal mounting on HEA posts or MAGNUM-compatible frames

• Weight: moderate, easy to handle

• Maintenance: simple cleaning, low dirt retention

📈 Certified Acoustic Performance

• Airborne sound insulation (DLR):
  → 33 to 34 dB depending on configuration
  → Rated B3 according to EN 1793-2:2013

• Mechanical and environmental resistance:
  Compliant with EN 1794-1 / EN 1794-2

• CE Marking: in accordance with EU Construction Products Regulation (305/2011)

• Tested according to: EN ISO 10140

✅ Advantages

• Maximum transparency for infrastructure with visual sensitivity

• Excellent sound insulation (up to 34 dB, B3 rating)

• Outstanding resistance to UV, weather, and climate variations

• Easy integration with MAGNUM structural systems

• Low maintenance, easy to clean

• Fully compliant with European regulatory standards

✅ UNIGLAS™ compliance with European standards

🔊 Acoustic Standards – EN 1793

• EN 1793-2:2013 – Determination of airborne sound insulation (DLR)
  → DLR = 33 to 34 dB, B3 rating

🧱 Mechanical & Environmental Standards – EN 1794

• EN 1794-1 – Resistance to mechanical loads, impact, and pressure

• EN 1794-2 – Durability against UV, corrosion, freeze–thaw cycles

🛣️ Framework Standard – EN 14388
Specifies general requirements for road noise barriers

🧪 Laboratory Testing – EN ISO 10140
Standardized methods for measuring acoustic performance of construction elements

📑 Construction Products Regulation – (EU) 305/2011
Mandatory CE marking – Declaration of Performance (DoP) available

📦 Typical Application
